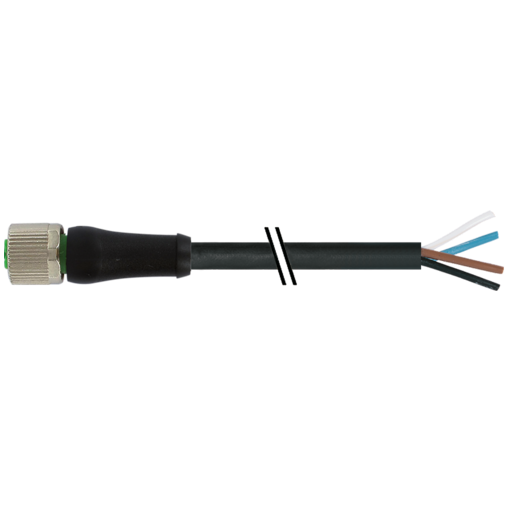

Đầu nối nguồn M12 female T-code Murrelektronik 7000-P7651-P070500
– PUR 4×1.5 bk UL/CSA+drag ch. 5m
– M12 cái 0°, 4 chân, T-code
– Dùng cho drag chain
– Cáp màu đen
– Inserted, screwed
– IP65, IP66K, IP67

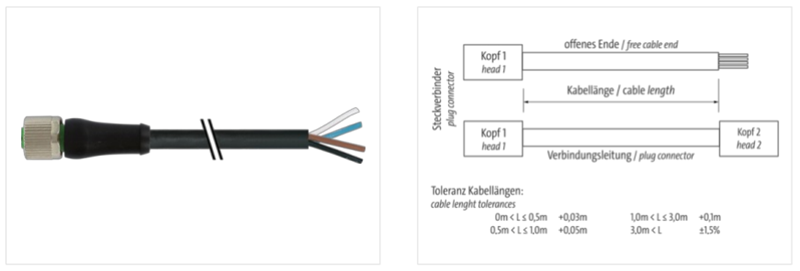

Đầu nối nguồn M12 female T-code Murrelektronik 7000-P7651-P070500: cáp nguồn dài 5m, có đầu nối cái M12 0°, T-code
– PUR 4×1.5 bk UL/CSA+drag ch. 5m
– M12 female (cái) 0°, 4 chân, T-code
– Dùng cho drag chain
– Inserted, screwed
– Vỏ nhựa có khả năng chống hóa chất và dầu tốt
Sản phẩm tương tự: Murrelektronik – Đầu nối M12 có cáp

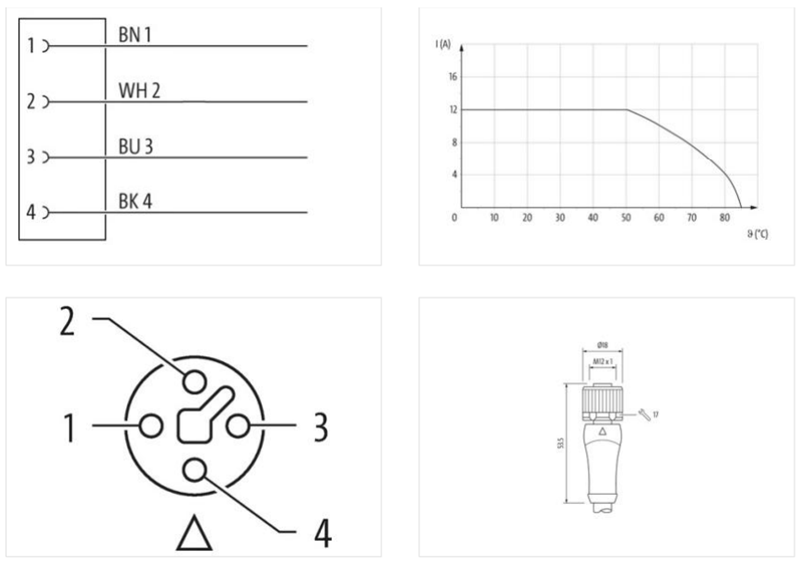

Thông số kỹ thuật – Đầu nối nguồn M12 female T-code Murrelektronik 7000-P7651-P070500
| Cable length | 5 m |
Side 1
| Tightening torque | 0,6 Nm |
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M12P |
| Thread | M12 x 1 |
| suitable for corrugated tube (internal Ø) | 12 mm |
| Gender | female |
| Cable outlet | straight |
| Coding | T |
| Material contact | Copper alloy |
| No. of poles | 4 |
| Width across flats | SW17 |
| Degree of protection (EN IEC 60529) | IP65, IP67 |
Side 2
| Stripping length (jacket) | 100 mm |
| Family construction form | free cable end |
Electrical data | Supply
| Operating voltage DC max. | 63 V |
| Current operating per contact max. | 12 A |
Diagnostics
| Status indication LED | no |
Installation | Connection
| Stripping length (jacket) | 100 mm |
| Width across flats | SW17 |
| Mating cycles min. | 100 |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP65, IP67 |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Material housing | PUR |
| Coating locking | Nickeled |
| Material gasket | FKM |
| Locking material | Zinc die-casting |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
