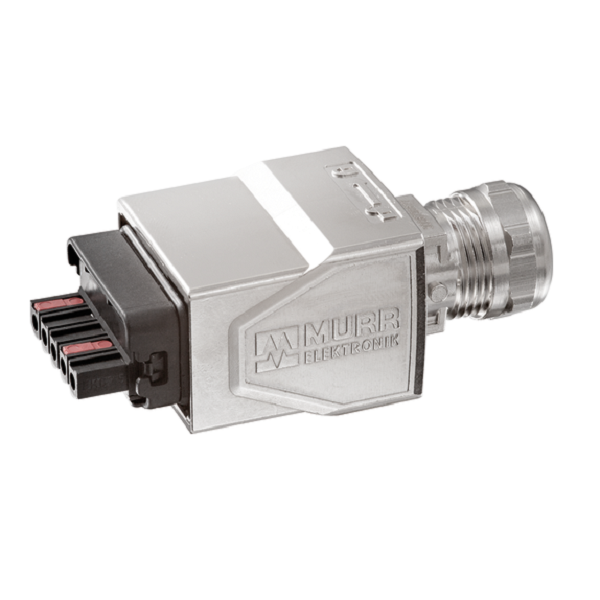

Đầu nối nguồi Push Pull male 0° 7000-99601-0000000

Đầu nối nguồi Push Pull male 0° 7000-99601-0000000

– Là đầu nối thẳng, male, 5 chân, PPP
– Spring clamp terminals
– Push Pull Power
– IP65, IP67

Đầu nối nguồi Push Pull male 0° 7000-99601-0000000: là đầu nối thẳng male 0° , PPP, 5 chân, sử dụng kiểu đấu nối Spring clamp tiện lợi và an toàn

– 5-pol., 0,75 – 2,5mm², 9 – 13mm
– Push Pull Power

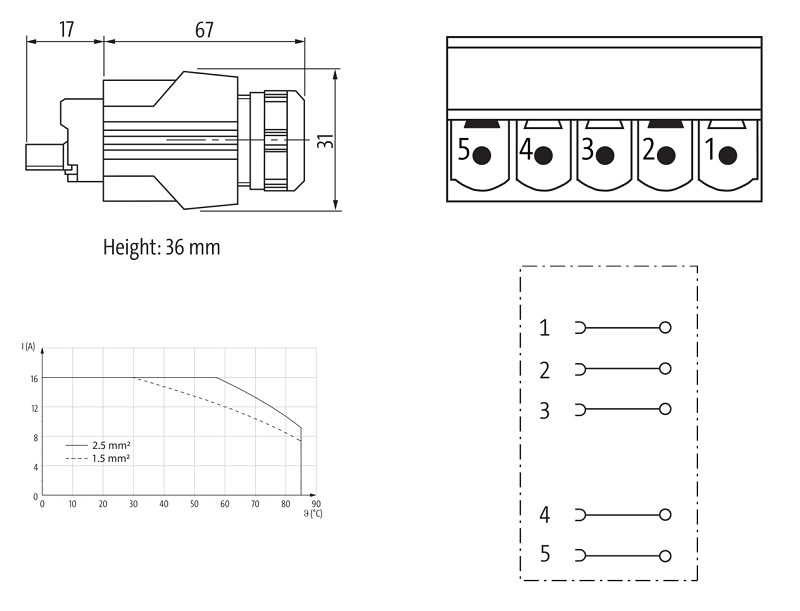

Đầu nối nguồi Push Pull male 0° 7000-99601-0000000 - DETAIL

– Spring clamp terminals

Thông số kỹ thuật – Đầu nối nguồi Push Pull male 0° 7000-99601-0000000

Header

Material short text	Push Pull Powerstecker 5pol.selbstanschl

Electrical data | Supply

Operating voltage AC max.	24 V
Operating voltage DC max.	24 V
Current operating per contact max.	16 A

Installation

Connection cross section min.	0.75 mm²
Connection cross section max.	2.5 mm²
AWG number min.	18
AWG number max.	14

Device protection | Electrical

Degree of protection (EN IEC 60529)	IP67, IP65
Additional condition protection degree	inserted, screwed
Pollution Degree	2
Rated surge voltage	4 kV

Mechanical data | Material data

Material housing	Zinc die-casting
Coating housing	Nickeled

Mechanical data | Mounting data

Clamping range min.	9 mm
Clamping range max.	13 mm

Environmental characteristics | Climatic

Operating temperature min.	-40 °C
Operating temperature max.	70 °C

Important installation notes

Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
