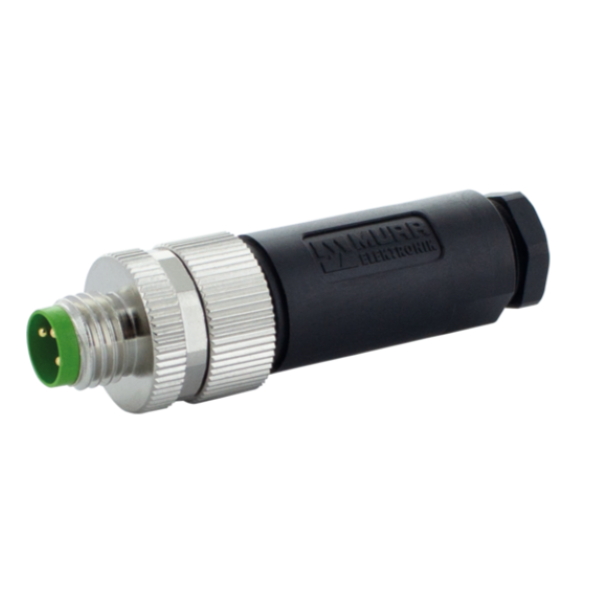

Đầu nối Murrelektronik M8 male 7000-08611-0000000 là đầu nối thẳng, không cáp, M8, male (đầu nối đực), A-cod., 4 chân
(4-pol., 0,14 – 0.5mm², 2,5 – 5mm)
Vỏ nhựa có khả năng chống chịu hóa chất và dầu tốt.
Đầu nối Murrelektronik M8 male 7000-08611-0000000
Đầu nối Murrelektronik M8 male 7000-08611-0000000
– 7000-08201-2101000 là đầu nối thẳng M8, male (đực), 4 chân
– A-cod.
– IP67

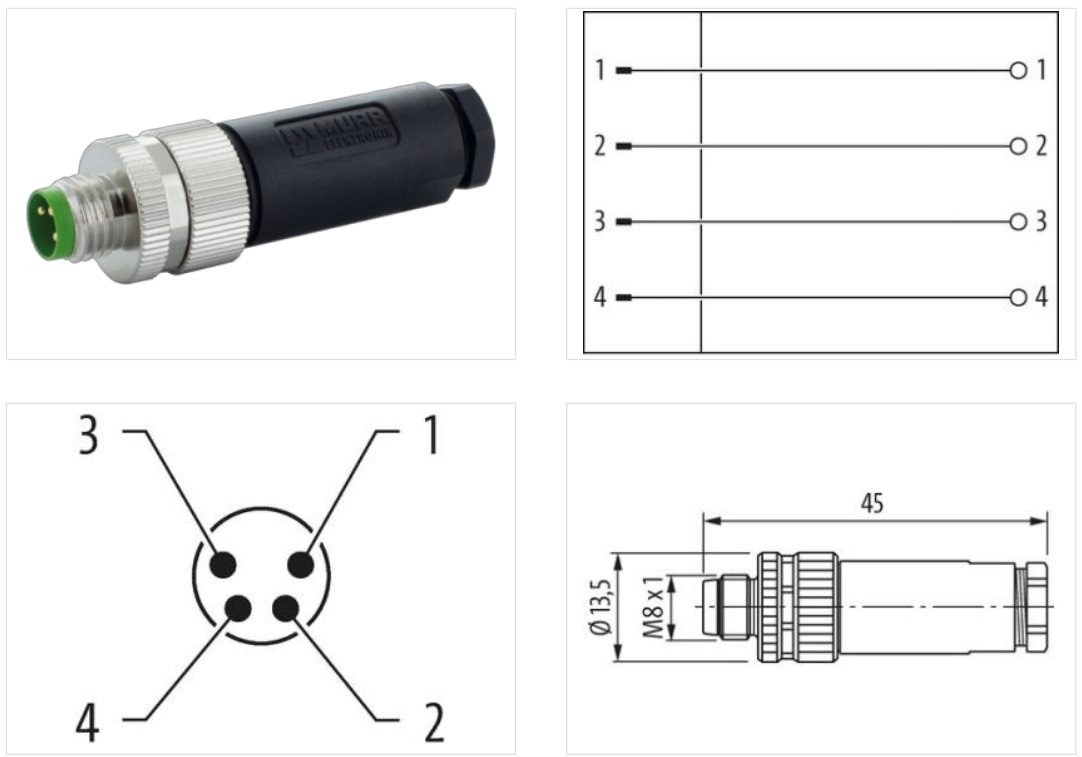

Thông số kỹ thuật – Đầu nối Murrelektronik M8 male 7000-08611-0000000
Side 1
| Coating contact | gold plated |
| Family construction form | M8 |
| Material contact | Brass |
| No. of poles | 4 |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP67 |
Electrical data | Supply
| Operating voltage AC max. | 50 V |
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
Installation
| Connection cross section min. | 0,14 mm² |
| Connection cross section max. | 0,5 mm² |
Installation | Connection
| Connection | Screw terminals SK |
Installation | Pin assignment
| Coding | A |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Insulation resistance min. | 100 MΩ |
| Overvoltage category (EN 60664-1) | III |
| Overvoltage category (EN 60950-1) | II |
Mechanical data | Material data
| Material housing | PBT |
| Material contact carrier | PA66 |
Mechanical data | Mounting data
| Clamping range min. | 2,5 mm |
| Clamping range max. | 5 mm |
| Height | 45 mm |
| Width | 13,5 mm |
| Depth | 13,5 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
| Operating temperature max. | 85 °C |
Important installation notes
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
