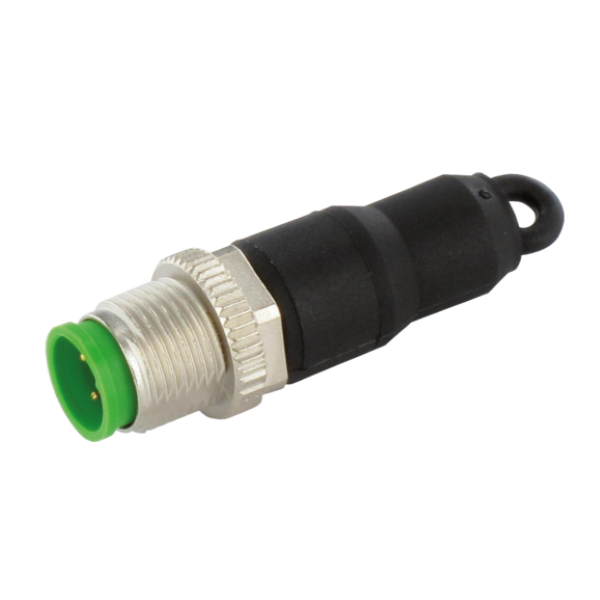

Đầu nối Murrelektronik 7000-14041-0000000
– Bus terminating, mạng PROFIBUS
– M12, male, 4 chân, B-cod.
– IP67
Murrelektronik 7000-14041-0000000 là Bus terminating, chuẩn PROFIBUS, M12, male, 4 chân, B-cod., có bảo vệ chống rung.
Thông số kỹ thuật – Đầu nối Murrelektronik 7000-14041-0000000
| Tightening torque | 0,6 Nm |
|---|---|
| Family construction form | M12 |
| Thread | M12 x 1 |
| Degree of protection (EN IEC 60529) | IP67 |
| Operating voltage DC max. | 30 V |
|---|---|
| Operating voltage DC max. (UL-listed) | 30 V |
| Current operating per contact max. | 4 A |
| Coding | B |
|---|
| Additional condition protection degree | inserted, screwed |
|---|---|
| Pollution Degree | 3 |
| Rated surge voltage | 0,8 kV |
| Material group (IEC 60664-1) | I |
| Coating locking | Nickeled |
|---|---|
| Locking material | Zinc die-casting |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 85 °C |
