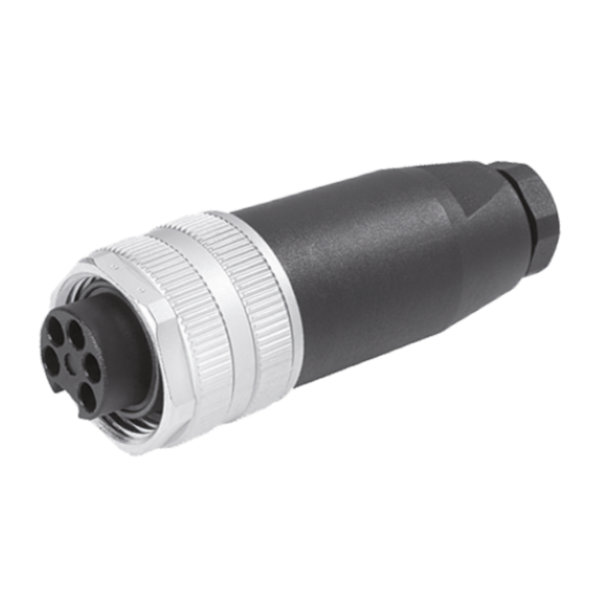

Đầu nối Murrelektronik 7/8” female 0° screw terminal 7000-78221-0000000
– Là đầu nối thẳng
– Female (đầu cái), 7/8″, 5 chân
– Screw terminals
– IP67
Đầu nối Murrelektronik 7/8” female 0° screw terminal 7000-78221-0000000 là đầu nối thẳng, Female (cái), 7/8″, 5 chân, screw terminals.
(5-pol., max. 1,5mm², 10 – 12mm)
Vỏ nhựa có khả năng chống hóa chất và dầu tốt, phù hợp với môi trường khắc nghiệt tỏng công nghiệp

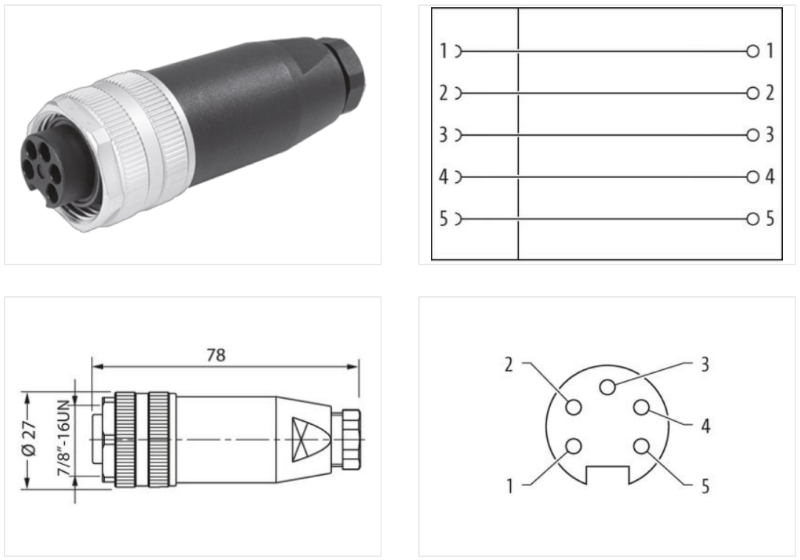

Thông số kỹ thuật – Đầu nối Murrelektronik 7/8” female 0° screw terminal 7000-78221-0000000
| Tightening torque | 1,5 Nm |
|---|---|
| Thread | 7/8″ |
| Operating voltage AC max. | 250 V |
|---|---|
| Operating voltage DC max. | 250 V |
| Current operating per contact max. | 9 A |
| Connection cross section max. | 1,5 mm² |
|---|
| Degree of protection (EN IEC 60529) | IP67 |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Coating locking | Nickeled |
|---|---|
| Locking material | Zinc die-casting |
| Mounting method | inserted, screwed, Shaking protection |
|---|---|
| Clamping range min. | 10 mm |
| Clamping range max. | 12 mm |
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
|---|---|
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
