Đầu nối màu vàng M12 female 0° A-code 5 chân 7030-12931-0000000: là đầu nối tín hiệu trong hệ thống tự động hóa
(5-pol. 0,14 – 1,5mm², 2,5 – 8mm)
– M12 female (cái) 0°, 5 chân, A-code
– Inserted, screwed
– Vỏ bọc chống hóa chất và dầu tốt
Đầu nối màu vàng M12 female 0° A-code 5 chân
Đầu nối màu vàng M12 female 0° A-code 5 chân 7030-12931-0000000
– 5-pol. 0,14 – 1,5mm², 2,5 – 8mm)
– M12 female (cái) 0°, 5 chân, A-code
– Inserted, screwed
– IP67

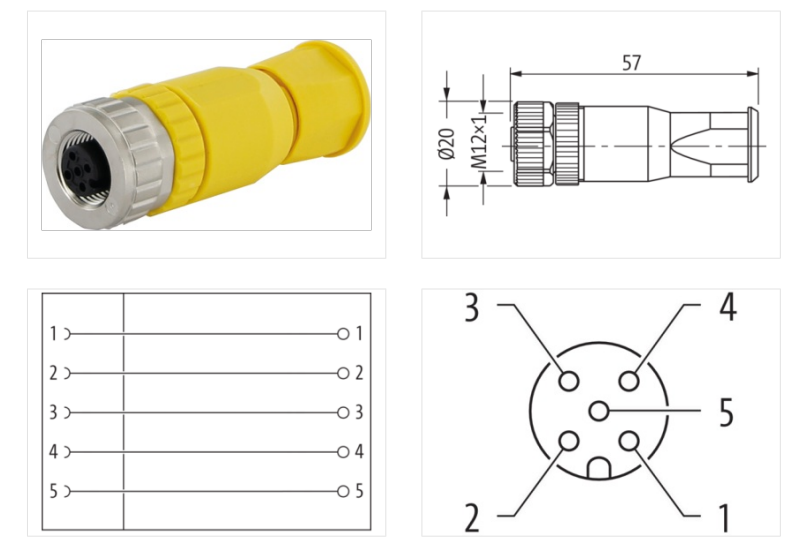

Thông số kỹ thuật – Đầu nối màu vàng M12 female 0° A-code 5 chân 7030-12931-0000000
Side 1
| Family construction form | M12 |
| No. of poles | 5 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW18 |
| Cable outlet | straight |
| Material | PA6 GF30 |
| Material contact | CuZn |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67 |
Side 2
| Mounting method | Field-wireable |
Electrical data | Supply
| Operating voltage AC max. | 60 V |
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
Installation
| Cross section connection with wire end ferrule min. | 0,14 mm² |
| Cross section connection with wire end ferrule max. | 1,5 mm² |
| Cross section connection with wire end ferrule AWG min. | 26 AWG |
| Cross section connection with wire end ferrule AWG max. | 16 AWG |
Installation | Connection
| Tightening torque | 0,6 Nm |
| Mounting set | M12 x 1 |
| Mating cycles min. | 100 |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3/2 |
| Insulation resistance min. | 100 mΩ |
| Material group (IEC 60664-1) | III |
Mechanical data | Material data
| Material housing | PA |
| Material gasket | NBR |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
| Clamping range min. | 4 mm |
| Clamping range max. | 8 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 85 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
