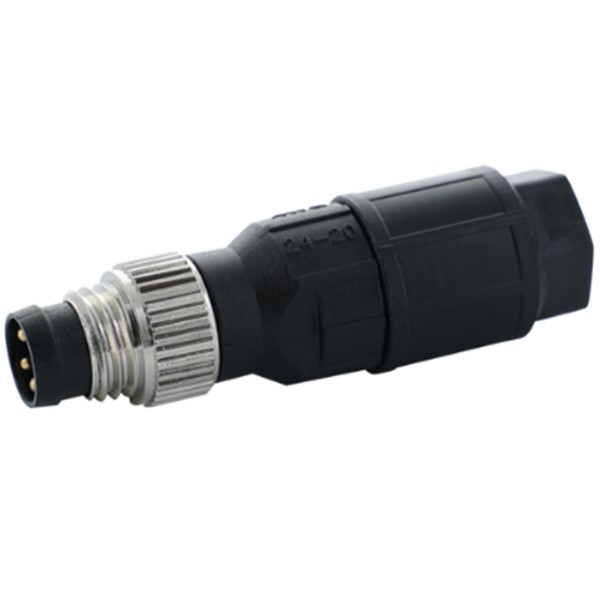

Đầu nối M8 male 0° A-code IDC 3 cực 7000-08325-0000000

Đầu nối M8 male 0° A-code IDC 3 cực 7000-08325-0000000

– M8, đực (thẳng), 3 cực , A-code
– IDC terminals
– IP67, IP65

Đầu nối M8 male 0° A-code IDC 3 cực 7000-08325-0000000: là đầu nối cảm biến công nghiệp của Murrelektronik, dùng để đấu nhanh cáp tín hiệu bằng công nghệ IDC (không cần tuốt dây)

(3-pol., 0,25 – 0,5mm², 2,5 – 5mm)
– M8, đực (thẳng), 3 cực , A-code
– IDC terminals

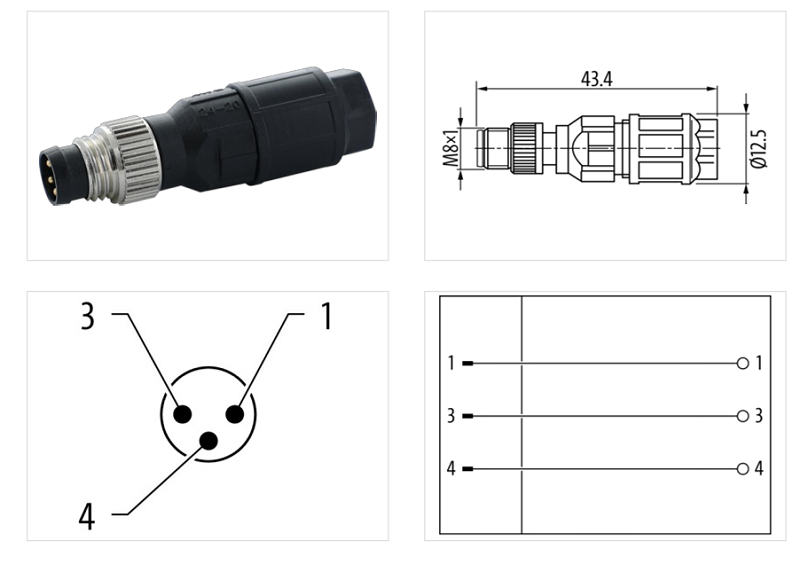

Đầu nối M8 male 0° A-code IDC 3 cực 7000-08325-0000000 - DETAIL

– Tiết diện kết nối: 0,25…0,5 mm²

Thông số kỹ thuật – Đầu nối M8 male 0° A-code IDC 3 cực 7000-08325-0000000

Side 1

Side 2

Mounting method	Field-wireable

Electrical data | Supply

Operating voltage AC max.	48 V
Operating voltage DC max.	60 V
Current operating per contact max.	4 A

Installation

Connection cross section min.	0,25 mm²
Connection cross section max.	0,5 mm²

Installation | Connection

Connection	Cut clamps IDC
Mounting set	M8 x 1
Mating cycles min.	100
Wire insulation diameter min.	1,1 mm
Wire insulation diameter max.	1,55 mm

Device protection | Electrical

Additional condition protection degree	inserted, screwed
Pollution Degree	3
Overvoltage category (EN 60950-1)	II
Rated surge voltage	0,8 kV
Insulation resistance min.	100 mΩ
Material group (IEC 60664-1)	III

Mechanical data | Material data

Mechanical data | Mounting data

Mounting method	Hexagonal screw, Hexagonal nut
Looking techniques	Schraubgewinde
Clamping range min.	2,5 mm
Clamping range max.	5 mm

Environmental characteristics | Climatic

Operating temperature min.	-25 °C
Operating temperature max.	80 °C

Important installation notes

Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Conformity

Product standard	EN IEC 61076-2-114 (M8)
