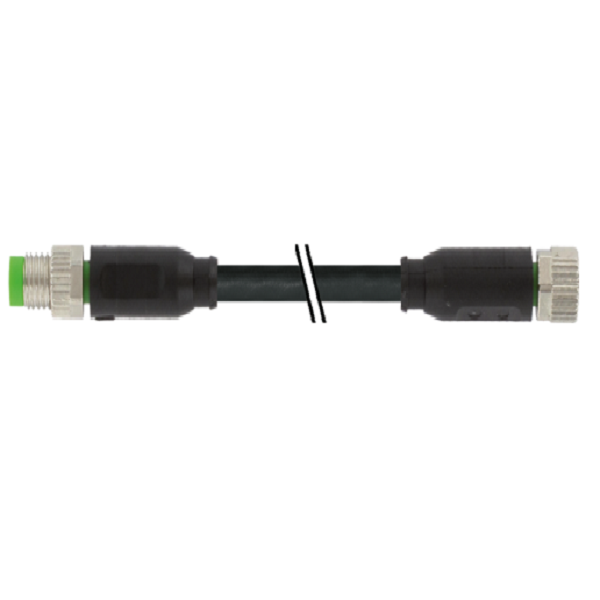

Đầu nối M8 – M8,A-cod,có cáp Murrelektronik 7000-88011-6310030
– PUR 4×0.25 bk UL/CSA+drag, chiều dài cáp 0.3 mét
– M8 đực – M8 cái, 4 chân, A-cod
– Inserted, screwed
– IP65, IP66K, IP67
Đầu nối M8 – M8, A-code, có cáp Murrelektronik 7000-88011-6310030 là một cáp tín hiệu dùng để kết nối hai thiết bị có cổng M8
– PUR 4×0.25 bk UL/CSA+drag, chiều dài cáp 0.3 mét
– M8 đực – M8 cái, 4 chân, A-code
– Inserted, screwed
– Vỏ nhựa có khả năng chống hóa chất và dầu tốt
Thông số kỹ thuật – Đầu nối M8 – M8, A-cod, có cáp Murrelektronik 7000-88011-6310030
| Cable length | 0,3 m |
|---|
| Tightening torque | 0,4 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M8 |
| Thread | M8 x 1 |
| suitable for corrugated tube (internal Ø) | 6,5 mm |
| Gender | male |
| Cable outlet | straight |
| Coding | A |
| Material contact | Copper alloy |
| Material | PUR |
| No. of poles | 4 |
| Width across flats | SW9 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
| Tightening torque | 0,4 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M8 |
| Thread | M8 x 1 |
| Gender | female |
| suitable for corrugated tube (internal Ø) | 6,5 mm |
| Cable outlet | straight |
| Coding | A |
| Material contact | Copper alloy |
| Material | PUR |
| No. of poles | 4 |
| Width across flats | SW9 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
| Operating voltage AC max. | 50 V |
|---|---|
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
| Status indication LED | no |
|---|
| Degree of protection (EN IEC 60529) | IP65, IP67, IP68, IP66K |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
| Material housing | PUR |
|---|---|
| Coating locking | Nickeled |
| Material gasket | FKM |
| Locking material | Zinc die-casting |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
|---|---|
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Product standard | DIN EN 61076-2-114 (M8) |
|---|
