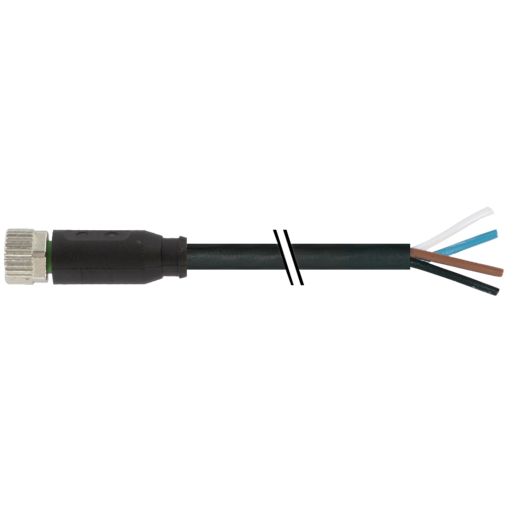

Đầu nối M8 female có cáp A-code Murrelektronik 7000-08061-6110500

– PVC 4×0.25 bk UL/CSA 5m
– M8 female (cái) A-code, 4 chân, có cáp dài 5m

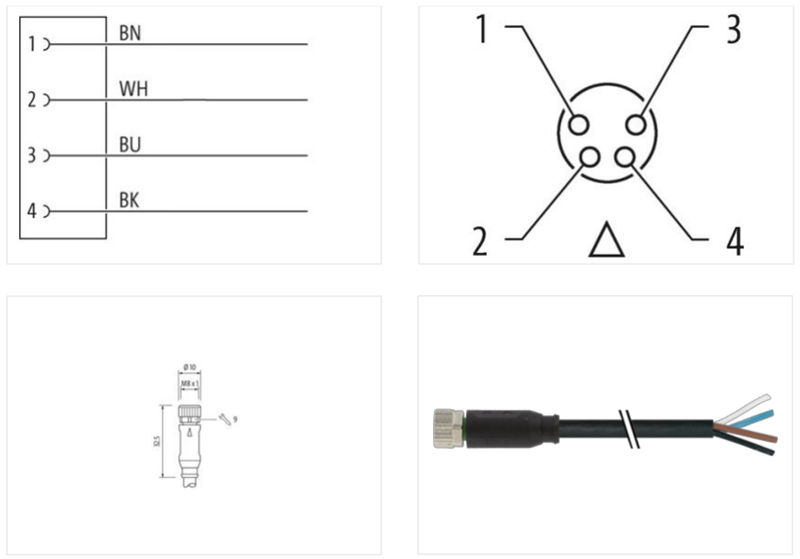

Đầu nối M8 female có cáp A-code Murrelektronik 7000-08061-6110500 - detail

– Vỏ nhựa có khả năng chống hóa chất và dầu tốt

Sản phẩm tương tự: Đầu nối M8 có cáp

Thông số kỹ thuật – Đầu nối M8 female có cáp A-code Murrelektronik 7000-08061-6110500

Cable length

5 m

Side 1

Tightening torque	0,4 Nm
Mounting method	inserted, screwed
Coating contact	gold plated
Family construction form	M8
Thread	M8 x 1
suitable for corrugated tube (internal Ø)	6,5 mm
Gender	female
Cable outlet	straight
Coding	A
Material contact	Copper alloy
Material	PUR
No. of poles	4
Width across flats	SW9
Degree of protection (EN IEC 60529)	IP65, IP66K, IP67

Side 2

Stripping length (jacket)	20 mm
Family construction form	free cable end

Electrical data | Supply

Operating voltage AC max.	50 V
Operating voltage DC max.	60 V
Current operating per contact max.	4 A

Diagnostics

Status indication LED

Installation | Connection

Stripping length (jacket)	20 mm
Mounting set	M8 x 1

Device protection | Electrical

Degree of protection (EN IEC 60529)	IP65, IP67, IP66K
Additional condition protection degree	inserted, screwed
Pollution Degree	3
Rated surge voltage	1,5 kV
Material group (IEC 60664-1)	I

Mechanical data | Material data

Mechanical data | Mounting data

Mounting method

inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min.	-30 °C
Operating temperature max.	85 °C
Additional condition temperature range	depending on cable quality
