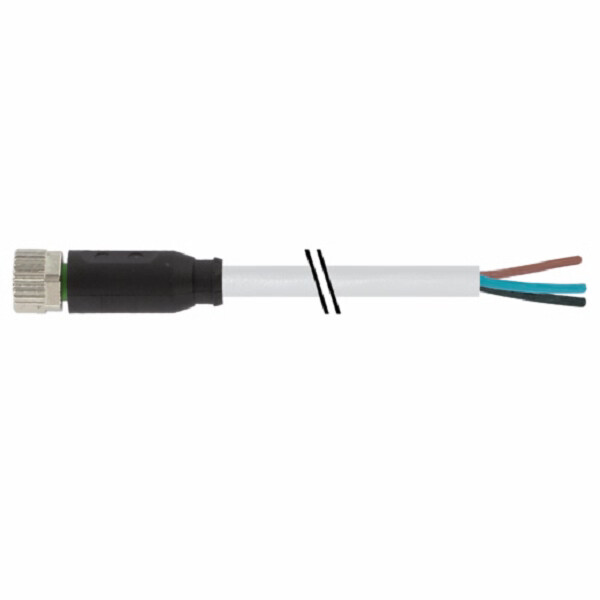

Đầu nối M8 female có cáp 5m Murrelektronik 7000-08041-2300500

Đầu nối M8 female có cáp 5m Murrelektronik 7000-08041-2300500 là một dây cáp kết nối dùng trong công nghiệp
– PUR 3×0.25 gy UL/CSA+drag ch. 5m
– M8 female (cái) A-code, 3 chân, có cáp

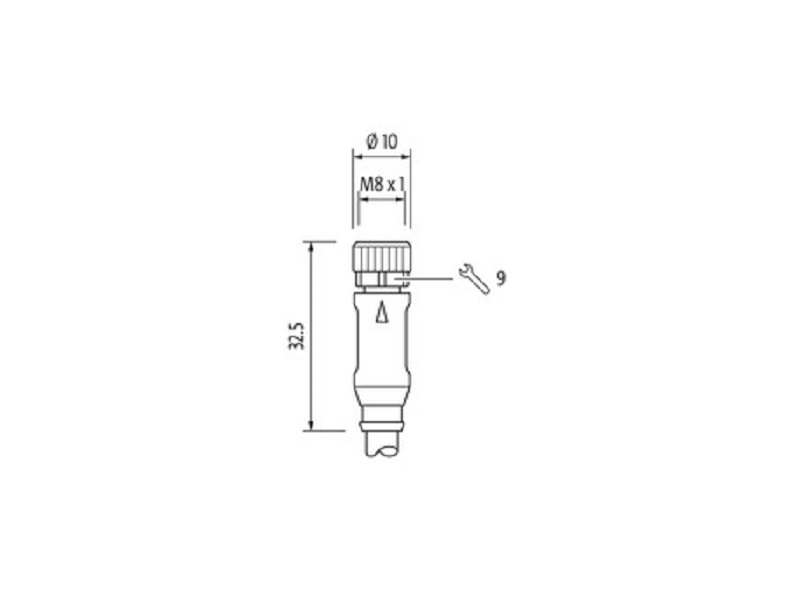

Đầu nối M8 female có cáp 5m Murrelektronik 7000-08041-2300500 - DIMENSION

– Vỏ nhựa có khả năng chống hóa chất và dầu tốt

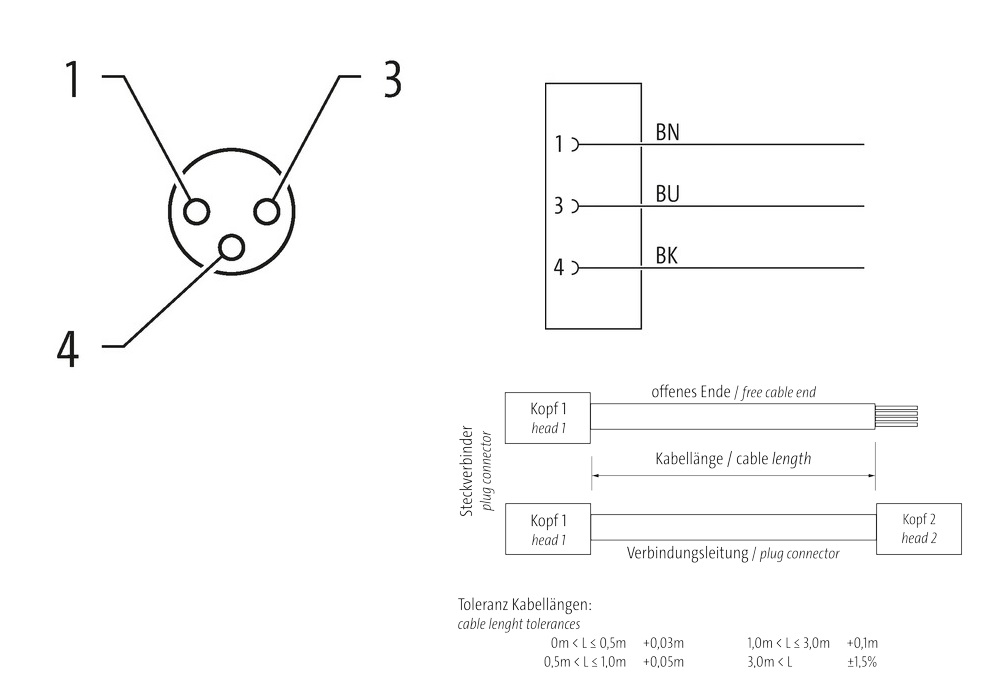

Đầu nối M8 female có cáp 5m Murrelektronik 7000-08041-2300500 - detail

Sản phẩm tương tự: Đầu nối M8 có cáp

Thông số kỹ thuật – Đầu nối M8 female có cáp 5m Murrelektronik 7000-08041-2300500

Cable length	5 m

Side 1

Tightening torque	0,4 Nm
Mounting method	inserted, screwed
Coating contact	gold plated
Family construction form	M8
Thread	M8 x 1
suitable for corrugated tube (internal Ø)	6,5 mm
Gender	female
Cable outlet	straight
Coding	A
Material contact	Copper alloy
Material	PUR
No. of poles	3
Width across flats	SW9
Degree of protection (EN IEC 60529)	IP65, IP66K, IP67

Side 2

Stripping length (jacket)	20 mm
Family construction form	free cable end

Electrical data | Supply

Operating voltage AC max.	50 V
Operating voltage DC max.	60 V
Current operating per contact max.	4 A

Diagnostics

Status indication LED	no

Installation | Connection

Stripping length (jacket)	20 mm
Mounting set	M8 x 1

Device protection | Electrical

Additional condition protection degree	inserted, screwed
Pollution Degree	3
Rated surge voltage	1,5 kV
Material group (IEC 60664-1)	I

Mechanical data | Material data

Coating locking	Nickeled
Coating of fitting	nickel plated
Material gasket	FKM
Locking material	Zinc die-casting
Material screw connection	Zinc die-casting

Mechanical data | Mounting data

Mounting method	inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min.	-30 °C
Operating temperature max.	85 °C
Additional condition temperature range	depending on cable quality

Important installation notes

Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Conformity

Product standard	DIN EN 61076-2-104 (M8)
