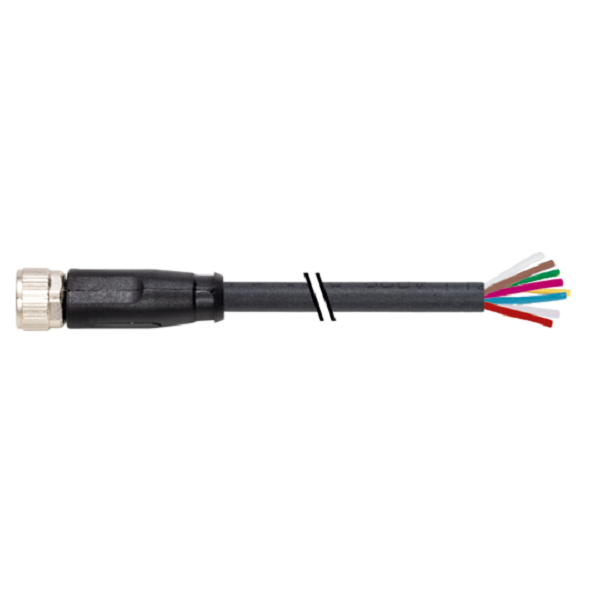

Đầu nối M8 female 8 chân A-code có cáp 10m 7000-08961-6961000
– Là đầu nối 0°, có sẵn cáp dài 10m, M8
– Female (đầu nối cái), 8 chân, A-cod
– inserted, screwed
– IP67
Đầu nối M8 female 8 chân A-code có cáp 10m 7000-08961-6961000 là đầu nối 0°, có cáp, M8, female (đầu nối cái), A-cod, 8 chân, có cáp dài 10m
– PUR 8×0,14 bk UL 10m
– inserted, screwed
– Vỏ nhựa có khả năng chống chịu hóa chất và dầu tốt
Sản phẩm tương tự – Đầu nối cái M12 A-code 8 chân có cáp dài 5m của Murrelektronik 7000-17041-6070500

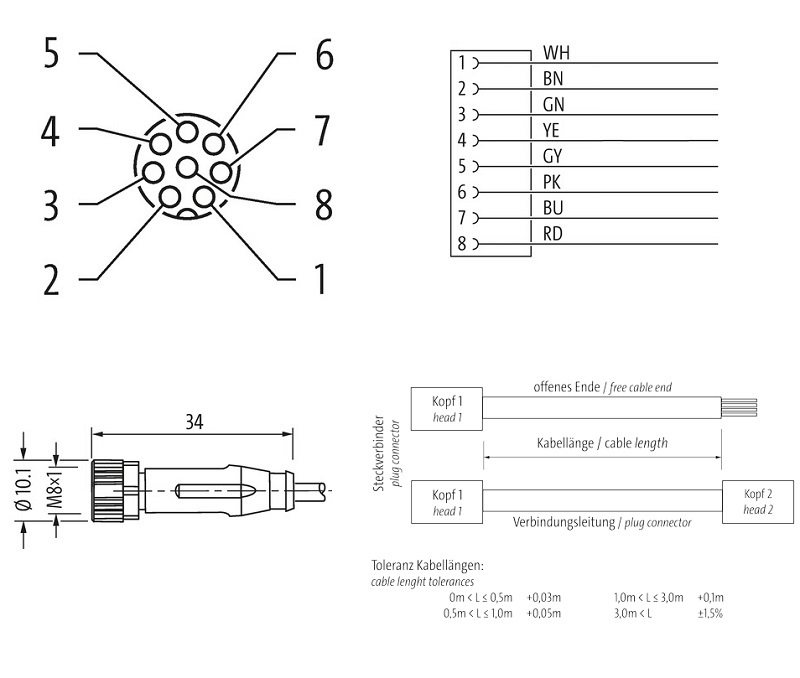

Thông số kỹ thuật – Đầu nối M8 female 8 chân A-code có cáp 10m 7000-08961-6961000
| Cable length | 10 m |
|---|
| Tightening torque | 0,4 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M8 |
| Thread | M8 x 1 |
| suitable for corrugated tube (internal Ø) | 8 mm |
| Cable outlet | straight |
| Coding | A |
| Material contact | Copper alloy |
| Material | PUR |
| No. of poles | 8 |
| Width across flats | SW9 |
| Degree of protection (EN IEC 60529) | IP67 |
| Family construction form | free cable end |
|---|
| Operating voltage AC max. | 30 V |
|---|---|
| Operating voltage DC max. | 30 V |
| Current operating per contact max. | 1,5 A |
| Status indication LED | no |
|---|
| Mounting set | M8 x 1 |
|---|
| Degree of protection (EN IEC 60529) | IP67 |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Coating locking | Nickeled |
|---|---|
| Coating of fitting | nickel plated |
| Material gasket | NBR |
| Locking material | Zinc die-casting |
| Material screw connection | Zinc die-casting |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 80 °C |
| Additional condition temperature range | depending on cable quality |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
|---|---|
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Product standard | DIN EN 61076-2-104 (M8) |
|---|
