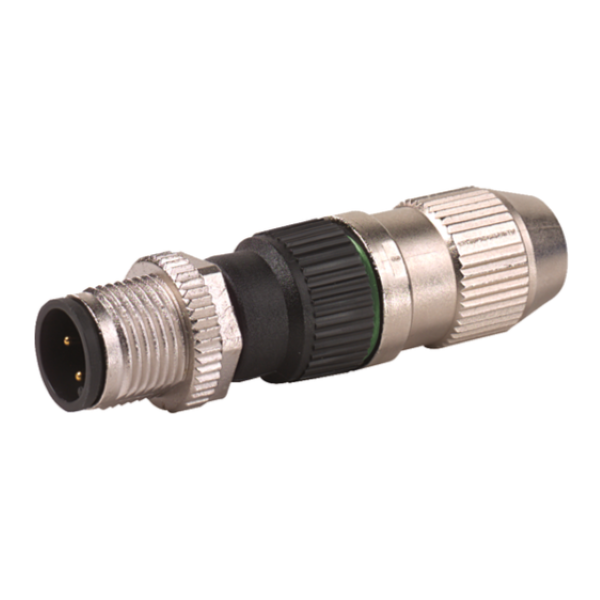

Đầu nối M12 male A-code 4 chân IDC field-wireable 7000-12481-0000000
– Là đầu nối thẳng 0°, M12
– Male, 4 chân, A-code
– Kết nối IDC
– IP67
Đầu nối M12 male A-code 4 chân IDC field-wireable 7000-12481-0000000 là đầu nối thẳng 0°, M12, Male (đực), 4 chân, A-code
– 4-pol., 0.25 – 0.5mm², 4 – 5,1mm
– IDC terminals
Sản phẩm tương tự – Đầu nối M12 đực, thẳng, A-code, IDC của Murrelektronik 7000-12533-0000000

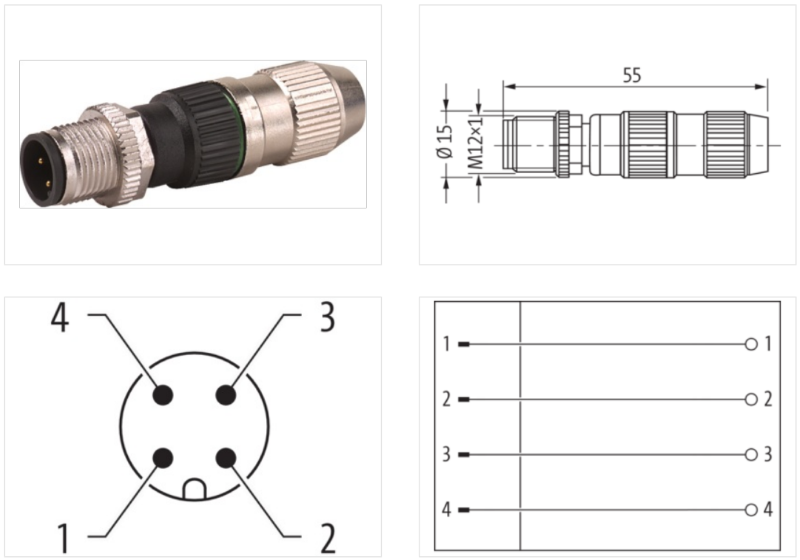

Thông số kỹ thuật – Đầu nối M12 male A-code 4 chân IDC field-wireable 7000-12481-0000000
Side 1
| Family construction form | M12 |
| Degree of protection (EN IEC 60529) | IP67 |
Electrical data | Supply
| Operating voltage AC max. | 32 V |
| Operating voltage DC max. | 32 V |
| Current operating per contact max. | 4 A |
Installation
| Single wire diameter min. | 0.1 mm |
| Connection cross section min. | 0.25 |
| Connection cross section max. | 0.5 |
Installation | Connection
| Tightening torque | 0.6 Nm |
| Wire insulation diameter min. | 1.2 mm |
| Wire insulation diameter max. | 1.6 mm |
Device protection | Electrical
| Additional condition protection degree | mounted, screwed |
| Rated surge voltage | 0.8 kV |
| Material group (IEC 60664-1) | III |
Mechanical data | Mounting data
| Height | 55 mm |
| Width | 15 mm |
| Depth | 15 mm |
| Mounting method | inserted, screwed, Shaking protection |
| Clamping range min. | 4 mm |
| Clamping range max. | 5.1 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
