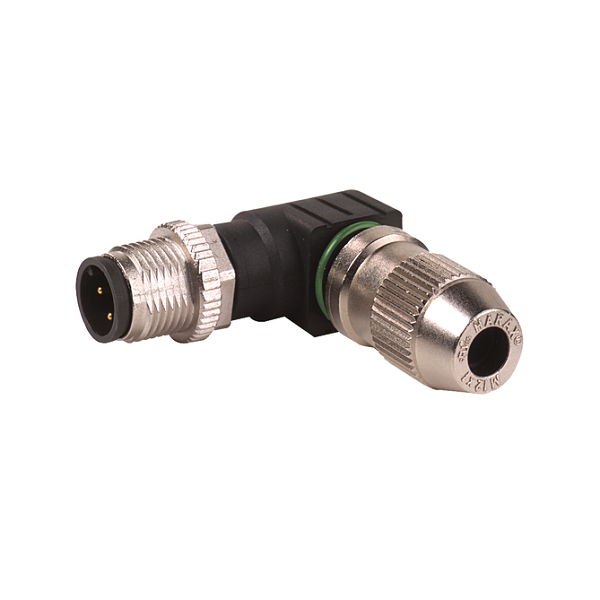

Đầu nối M12 male 90° A-code IDC 4 chân 7000-12561-0000000

Đầu nối M12 male 90° A-code IDC 4 chân 7000-12561-0000000

– 4-pol., 0.25 – 0.5mm², 4 – 5,1mm
– Đầu nối M12 male (cái) 90°, A-code, 4 chân
– IDC terminals
– IP67

Đầu nối M12 male 90° A-code IDC 4 chân 7000-12561-0000000: là đầu nối M12 dùng để kết nối các thiết bị công nghiệp (cảm biến, van, module I/O) trong hệ thống tự động hóa

– 4-pol., 0.25 – 0.5mm², 4 – 5,1mm
– Đầu nối M12 male (cái) 90°, A-code, 4 chân

Đầu nối M12 male 90° A-code IDC 4 chân 7000-12561-0000000 - DETAIL
– IDC terminals
– inserted, screwed

Thông số kỹ thuật – Đầu nối M12 male 90° A-code IDC 4 chân 7000-12561-0000000

Side 1

Family construction form	M12
Degree of protection (EN IEC 60529)	IP67

Electrical data | Supply

Operating voltage AC max.	32 V
Operating voltage DC max.	32 V
Current operating per contact max.	4 A

Installation

Single wire diameter min.	0.1 mm
Connection cross section min.	0.25
Connection cross section max.	0.5

Installation | Connection

Tightening torque	0.6 Nm
Wire insulation diameter min.	1.2 mm
Wire insulation diameter max.	1.6 mm

Device protection | Electrical

Additional condition protection degree	inserted, screwed

Mechanical data | Mounting data

Height	40 mm
Width	40 mm
Depth	15 mm
Mounting method	inserted, screwed, Shaking protection
Clamping range min.	4 mm
Clamping range max.	5.1 mm

Environmental characteristics | Climatic

Operating temperature min.	-25 °C
Operating temperature max.	85 °C

Important installation notes

Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
