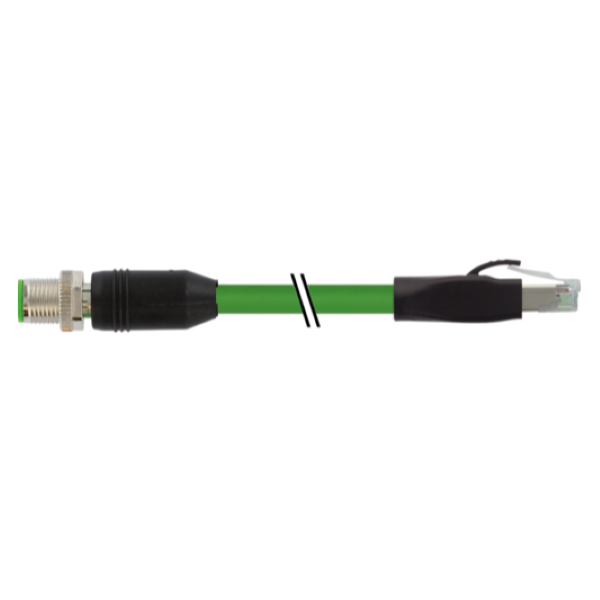

Đầu nối M12 male 7700-44711-S7V0500 Murrelektronik
– Là đầu nối thẳng, M12 – RJ45, có sãn cáp dài 5 m

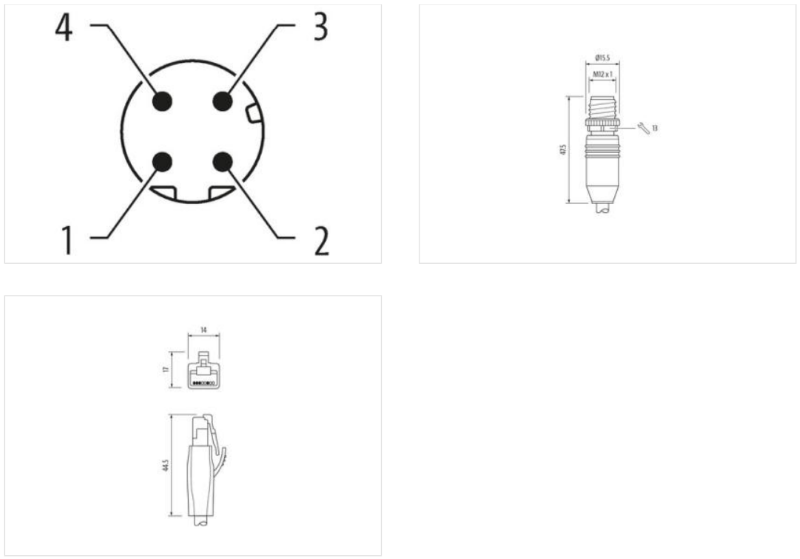

– M12: 4 chân, D-cod
– IP67

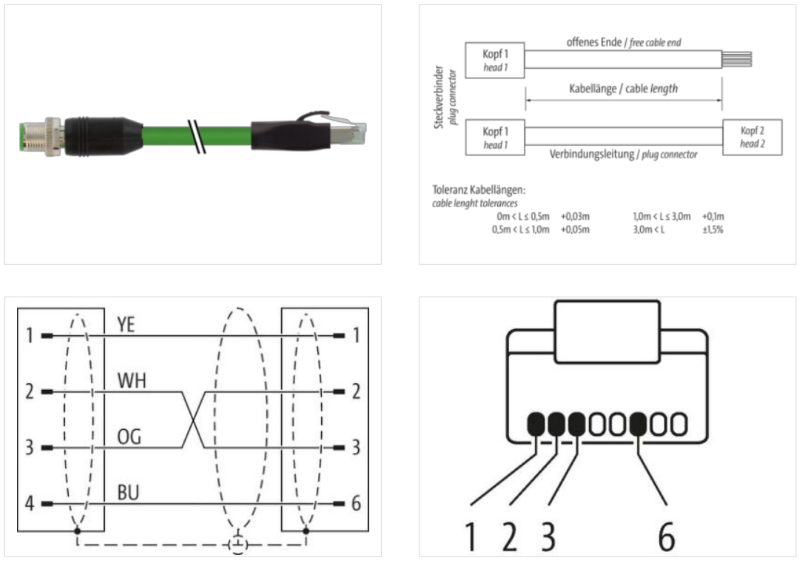

Đầu nối M12 male 7700-44711-S7V0500 Murrelektronik là đầu nối thẳng, đầu nối chuyển đổi giữa M12 (4 chân, D-cod, male) với RJ45 (4 chân), có sẵn cáp dài 5m, khả năng truyền tải kênh lên đến 100m, có nắp bảo vệ
(TPE 22AWG SF/UTP CAT5e gn UL/CSA. ITC/PLTC 5m )
Vỏ nhựa có khả năng chống hóa chất và dầu tốt.
Thông số kỹ thuật – Đầu nối M12 male 7700-44711-S7V0500 Murrelektronik
| Cable length | 5 m |
Side 1
| Mounting method | inserted, screwed |
| Family construction form | M12 |
| Thread | M12 x 1 |
| Cable outlet | straight |
| Coding | D |
| No. of poles | 4 |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP67 |
Side 2
| Mounting method | pluggable |
| Family construction form | RJ45 |
| Cable outlet | straight |
| No. of poles | 4 |
| Degree of protection (EN IEC 60529) | IP20 |
Electrical data | Supply
| Operating voltage DC max. | 60 V |
| Operating voltage DC (UL-listed) | 30 V |
| Current operating per contact max. | 1,5 A |
Industrial communication
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| Data transmission rate max. | 100 MBit/s |
Industrial communication | Ethernet functionality
| duplex | Full duplex |
Device protection | Electrical
| Pollution Degree | 3 |
| Rated surge voltage | 1 kV |
| Material group (IEC 60664-1) | I |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
Conformity
| Product standard | DIN EN 61076-2-101 (M12) |
