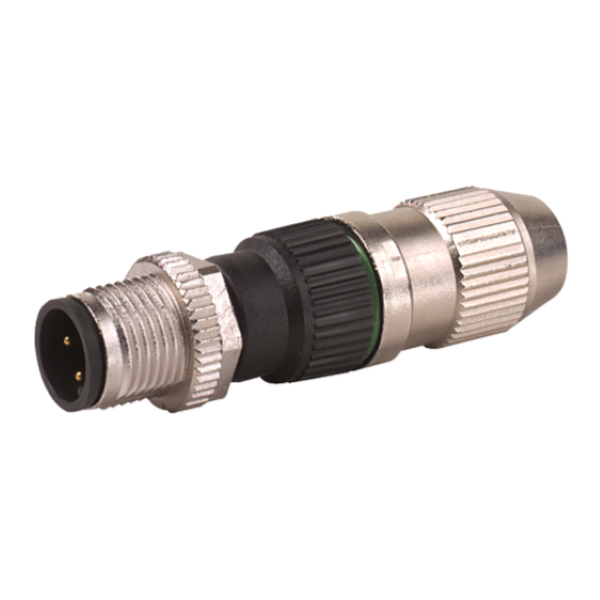

Đầu nối M12 male 0° A-code IDC 4 cực 7000-12481-0000000
– Là đầu nối thẳng 0°, M12
– Male, 4 chân, A-code
– Kết nối IDC
– IP67
Đầu nối M12 male 0° A-code IDC 4 cực 7000-12481-0000000: là đầu nối thẳng 0°, M12, Male (đực), 4 chân, A-code
– 4-pol., 0.25 – 0.5mm², 4 – 5,1mm
– IDC terminals

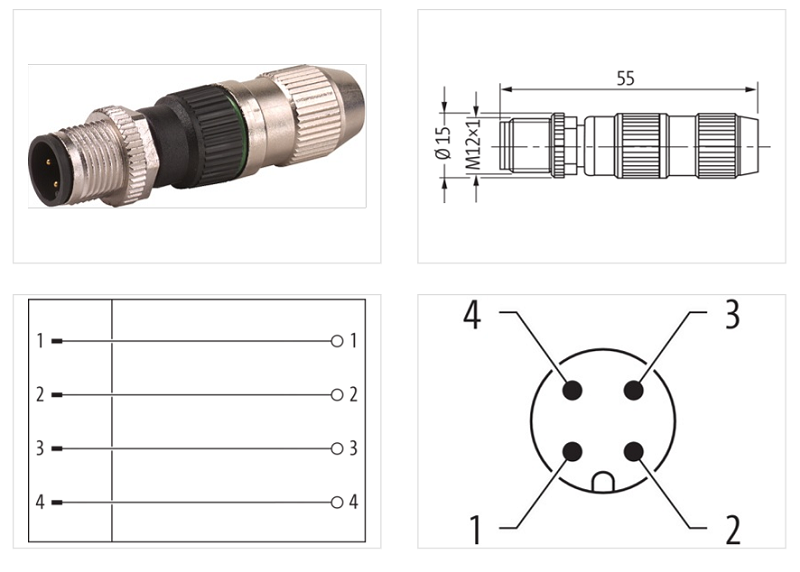

Thông số kỹ thuật – Đầu nối M12 male 0° A-code IDC 4 cực 7000-12481-0000000
| Material short text | MSAL0-AC-T-IDC |
|---|
| Family construction form | M12 |
|---|---|
| Degree of protection (EN IEC 60529) | IP67 |
| Operating voltage AC max. | 32 V |
|---|---|
| Operating voltage DC max. | 32 V |
| Current operating per contact max. | 4 A |
| Single wire diameter min. | 0,1 mm |
|---|---|
| Connection cross section min. | 0,25 mm² |
| Connection cross section max. | 0,5 mm² |
| Tightening torque | 0,6 Nm |
|---|---|
| Wire insulation diameter min. | 1,2 mm |
| Wire insulation diameter max. | 1,6 mm |
| Additional condition protection degree | mounted, screwed |
|---|---|
| Rated surge voltage | 0,8 kV |
| Material group (IEC 60664-1) | III |
| Height | 55 mm |
|---|---|
| Width | 15 mm |
| Depth | 15 mm |
| Mounting method | inserted, screwed, Shaking protection |
| Clamping range min. | 4 mm |
| Clamping range max. | 5,1 mm |
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
