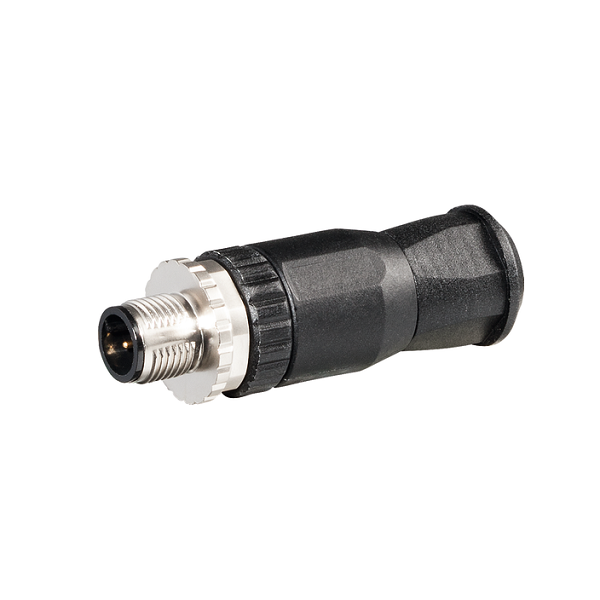

Đầu nối M12 male 0° A-code 5 cực 7000-12731-0000000: là đầu nối đực 0°, A-code dùng để kết nối tín hiệu điều khiển, cảm biến… Không cáp
– 5-pol., 0,14 – 1,5mm², 2,5 – 8mm
– Screw terminals
– Vỏ nhựa có khả năng chống hóa chất và dầu tốt
Đầu nối M12 male 0° A-code 5 cực 7000-12731-0000000
Đầu nối M12 male 0° A-code 5 cực 7000-12731-0000000
– Là đầu nối thẳng 0°, M12
– Male (đực), 5 chân, A-cod
– Loại đấu dây bằng vít
– IP67

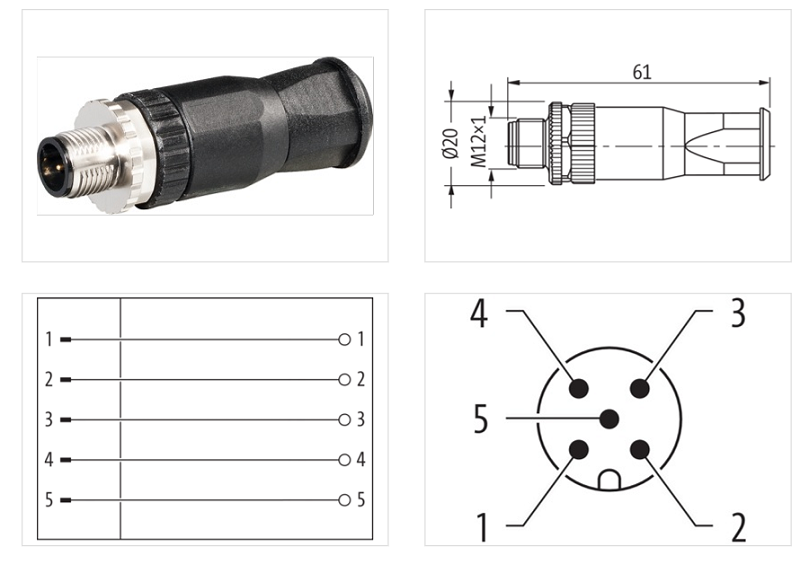

Thông số kỹ thuật – Đầu nối M12 male 0° A-code 5 cực 7000-12731-0000000
Side 1
| Family construction form | M12 |
|---|---|
| No. of poles | 5 |
| Coding | A |
| Gender | male |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW18 |
| Material | PA6 |
| Material contact | CuZn |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67 |
Side 2
| Mounting method | field-wireable |
|---|
Electrical data | Supply
| Operating voltage AC max. | 60 V |
|---|---|
| Operating voltage DC max. | 60 V |
Installation
| Connection cross section max. | 1.5 mm² |
|---|---|
| Cross section connection with wire end ferrule min. | 0.14 mm² |
| Cross section connection with wire end ferrule max. | 1.5 mm² |
| Cross section connection with wire end ferrule AWG min. | 26 AWG |
| Cross section connection with wire end ferrule AWG max. | 16 AWG |
Installation | Connection
| Tightening torque | 0.6 Nm |
|---|---|
| Mating cycles min. | 100 |
Device protection | Electrical
| Additional condition protection degree | in closed state, inserted, screwed |
|---|---|
| Pollution Degree | 3/2 |
| Insulation resistance min. | 100 mΩ |
Mechanical data | Material data
| Material gasket | NBR |
|---|
Mechanical data | Mounting data
| Height | 61 mm |
|---|---|
| Width | 20 mm |
| Depth | 20 mm |
| Mounting method | Schraubgewinde |
| Clamping range min. | 2.5 mm |
| Clamping range max. | 8 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 85 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
