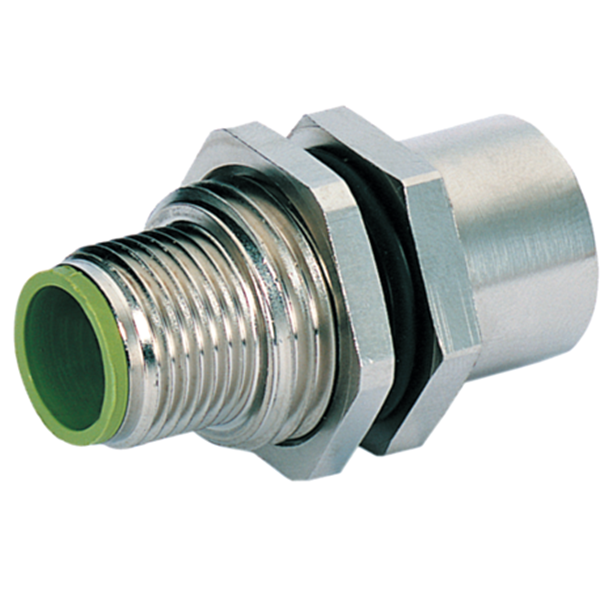

Đầu nối M12 lắp mặt tủ A code 7000-42111-0000000 Murrelektronik

Đầu nối M12 lắp mặt tủ A code 7000-42111-0000000 Murrelektronik là một loại đầu nối M12, female (cái), được thiết kế để có thể dễ dàng kết nối với thiết bị bên trong tủ mà không cần mở cửa tủ điện

– M12, 5-pole-PANEL FEED THROUGH A-CODED
– IP65, IP67

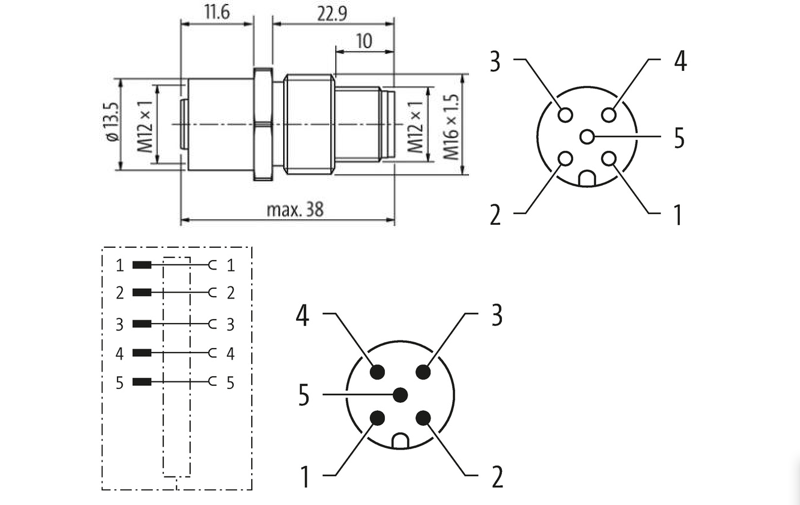

Đầu nối M12 lắp mặt tủ A code 7000-42111-0000000 Murrelektronik - detail

THÔNG SỐ KỸ THUẬT – Đầu nối M12 lắp mặt tủ A code 7000-42111-0000000 Murrelektronik

Side 1

Family construction form	M12
Coding	A

Side 2

Family construction form	M12
Coding	A

Electrical data | Supply

Operating voltage AC max.	60 V
Operating voltage DC max.	60 V
Operating voltage AC (UL-listed)	30 V
Operating voltage DC (UL-listed)	30 V
Current operating per contact max.	4 A

Installation | Connection

Tightening torque	0,6 Nm
Mounting set	M16 x 1.5

Device protection | Electrical

Degree of protection (EN IEC 60529)	IP65, IP67
Protection NEMA	3, 4, 6P
Additional condition protection degree	inserted, screwed
Pollution Degree	2
Rated surge voltage	1,5 kV
Material group (IEC 60664-1)	I

Mechanical data | Material data

Coating housing	nickel plated
Material housing	Brass

Mechanical data | Mounting data

Mounting method

inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min.	-25 °C
Operating temperature max.	85 °C

Important installation notes

Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Approvals

UL 50E

yes
