Đầu nối M12 female A-code có cáp 3m của Murrelektronik 7000-12221-2340300

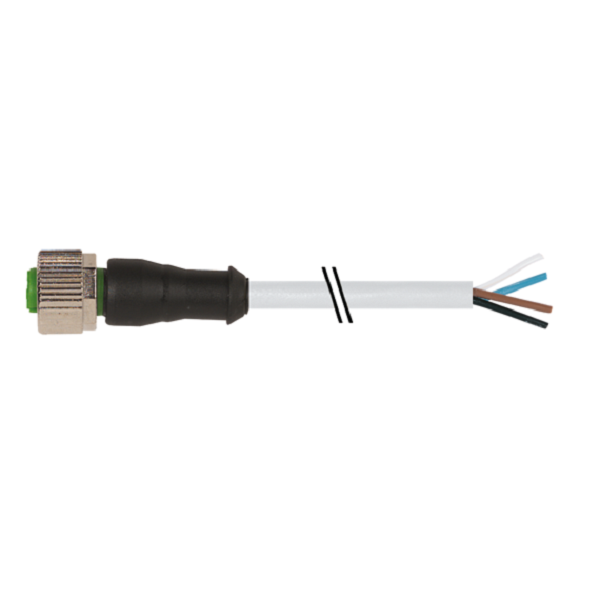

Đầu nối M12 female A-code có cáp 3m của Murrelektronik 7000-12221-2340300 là đầu nối thẳng, có cáp, M12, female (đầu nối cái), A-cod, 4 pin, cáp có chiều dài 3 mét

(PUR 4×0.34 gy UL/CSA+drag ch. 3m)
– Female (đầu nối cái) 0°, M12, A-cod, 4 chân
– inserted, screwed

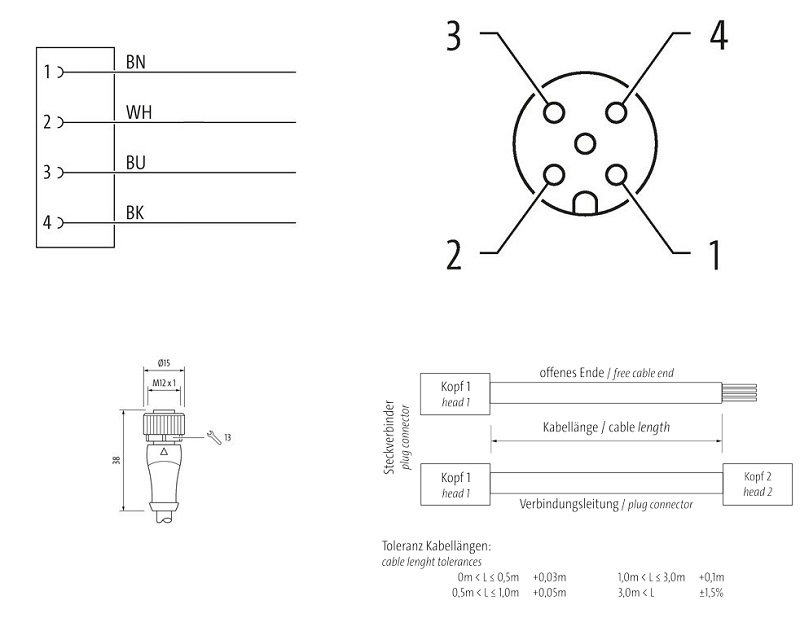

Đầu nối M12 female A-code có cáp 3m của Murrelektronik 7000-12221-2340300 - DETAIL

– Vỏ nhựa có khả năng chống chịu hóa chất và dầu tốt

Sản phẩm tương tự

Thông số kỹ thuật – Đầu nối M12 female A-code có cáp 3m của Murrelektronik 7000-12221-2340300

Cable length	3 m

Side 1

Tightening torque	0,6 Nm
Mounting method	inserted, screwed
Coating contact	gold plated
Family construction form	M12
Thread	M12 x 1
suitable for corrugated tube (internal Ø)	10 mm
Cable outlet	straight
Coding	A
Material contact	Copper alloy
Material	PUR
No. of poles	4
Width across flats	SW13
Degree of protection (EN IEC 60529)	IP65, IP66K, IP67

Side 2

Stripping length (jacket)	20 mm
Family construction form	free cable end

Electrical data | Supply

Operating voltage AC max.	250 V
Operating voltage DC max.	250 V
Current operating per contact max.	4 A

Diagnostics

Status indication LED	no

Installation | Connection

Stripping length (jacket)	20 mm
Mounting set	M12 x 1
Gender	female

Device protection | Electrical

Degree of protection (EN IEC 60529)	IP65, IP67, IP66K
Additional condition protection degree	inserted, screwed
Pollution Degree	3
Rated surge voltage	2,5 kV
Material group (IEC 60664-1)	I

Mechanical data | Material data

Coating locking	Nickeled
Coating of fitting	nickel plated
Locking material	Zinc die-casting
Material screw connection	Zinc die-casting

Mechanical data | Mounting data

Mounting method	inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min.	-30 °C
Operating temperature max.	85 °C
Additional condition temperature range	depending on cable quality

Important installation notes

Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Conformity

Product standard	DIN EN 61076-2-101 (M12)
