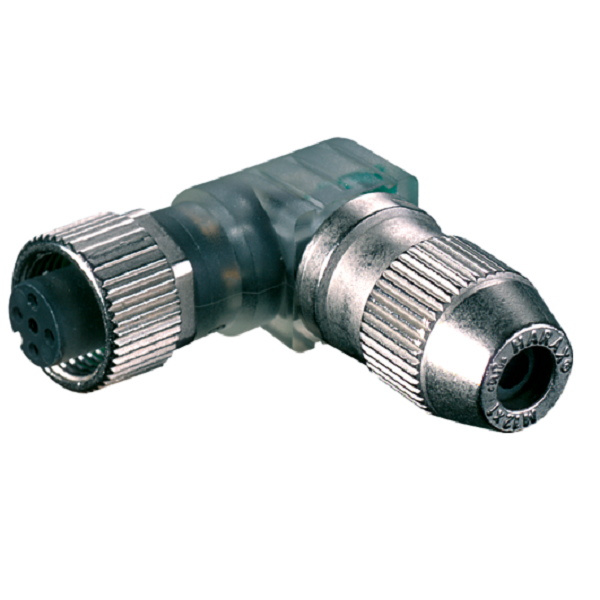

Đầu nối M12 female 90° A-code IDC field wireable có 3 LED của Murrelektronik 7000-12691-0000000
– Là đầu nối thẳng, M12
– Female, 4 chân, A-cod
– Kết nối IDC
– IP67
Đầu nối M12 female 90° A-code IDC field wireable có 3 LED của Murrelektronik 7000-12691-0000000
(4-pol., 0.25 – 0.5mm², 4 – 5,1mm)
– Đầu nối M12 female 90°, 4 cổng
– 3× LED (PNP)
– IDC terminals
Sản phẩm tương tự – Đầu nối M12 đực, thẳng, A-code, IDC của Murrelektronik 7000-12533-0000000
Thông số kỹ thuật – Đầu nối M12 female 90° A-code IDC field wireable có 3 LED của Murrelektronik 7000-12691-0000000
| Family construction form | M12 |
|---|---|
| Degree of protection (EN IEC 60529) | IP67 |
| Operating voltage DC | 24 V |
|---|---|
| Operating voltage DC min. | 18 V |
| Operating voltage DC max. | 30 V |
| Current operating per contact max. | 4 A |
| Connection cross section min. | 0,25 mm² |
|---|---|
| Connection cross section max. | 0,5 mm² |
| Single wire diameter min. | 0,1 mm |
| Wire insulation diameter min. | 1,2 mm |
|---|---|
| Wire insulation diameter max. | 1,6 mm |
| Tightening torque | 0,6 Nm |
| Additional condition protection degree | inserted, screwed |
|---|
| Mounting method | inserted, screwed, Shaking protection |
|---|---|
| Clamping range min. | 4 mm |
| Clamping range max. | 5,1 mm |

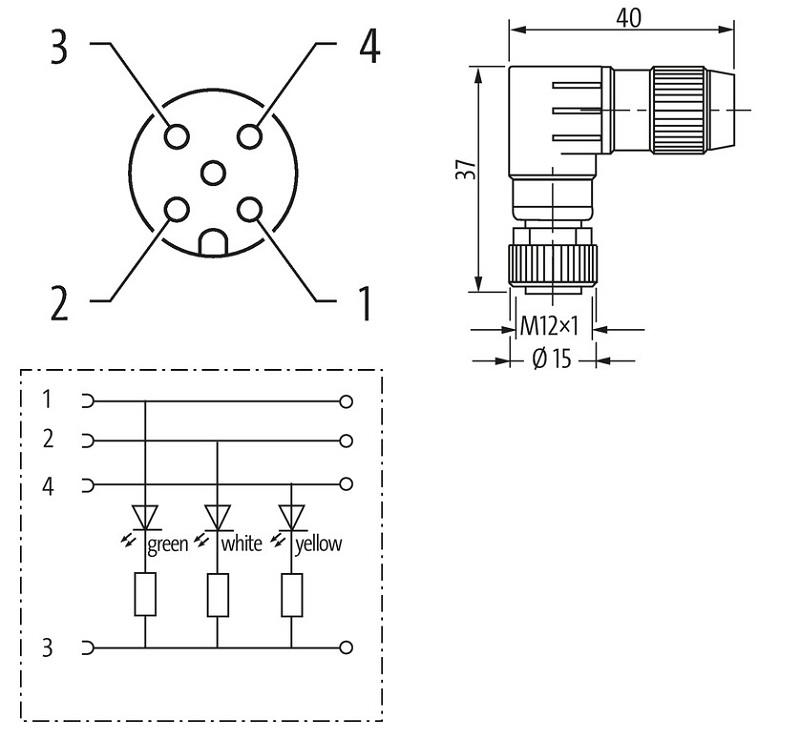

| Height | 37 mm |
| Width | 40 mm |
| Depth | 15 mm |
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
|---|---|
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
