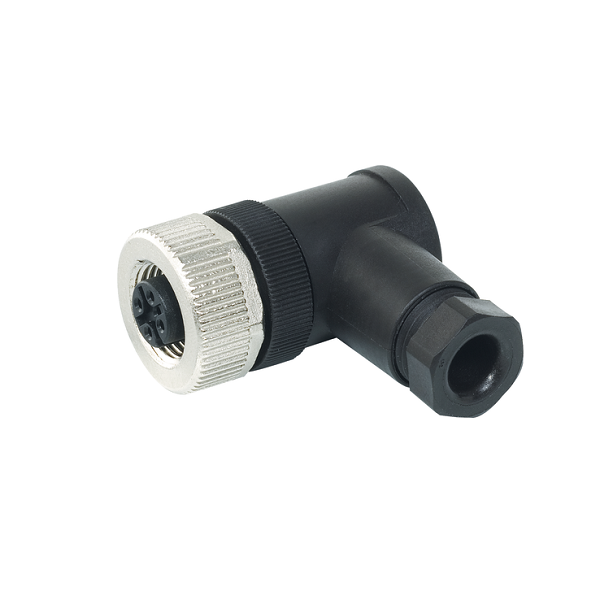

Đầu nối M12 female 90° A-code 5 cực 7000-13041-0000000

Đầu nối M12 female 90° A-code 5 cực 7000-13041-0000000: là đầu nối tín hiệu trong công nghiệp, đầu nối ren dễ lắp đặt, thay thế

(5-pol., max. 0,75mm², 6 – 8mm)
– M12, female, 90°, 5 chân
– Screw terminals

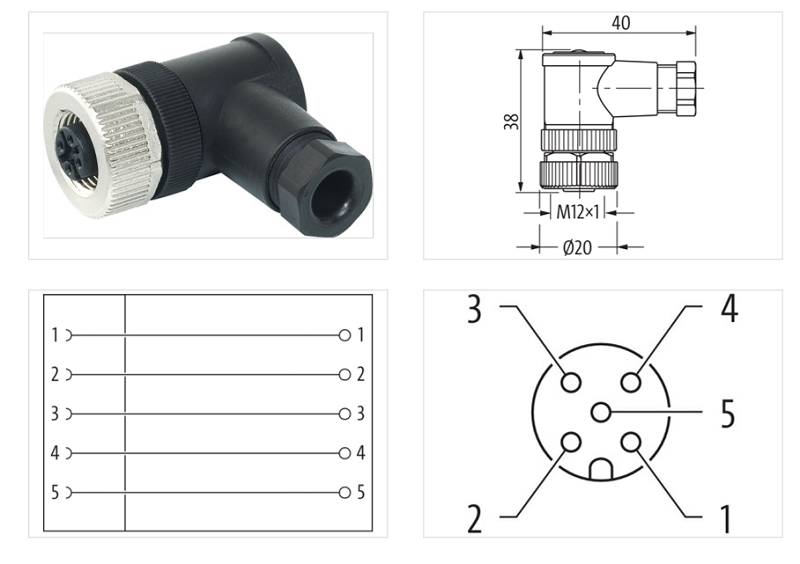

Đầu nối M12 female 90° A-code 5 cực 7000-13041-0000000 - DETAIL

– Vỏ nhựa có khả năng chống hóa chất và dầu tốt

Thông số kỹ thuật – Đầu nối M12 female 90° A-code 5 cực 7000-13041-0000000

Header

Material short text	MSD-U9

Side 1

Side 2

Mounting method	Field-wireable

Electrical data | Supply

Operating voltage AC max.	60 V
Operating voltage DC max.	60 V
Current operating per contact max.	4 A
Operating voltage AC max. (UL-listed)	125 V
Operating voltage DC max. (UL-listed)	125 V
Current operating per contact max. (URc.)	3 A

Diagnostics

Status indication LED	No

Installation

Rotation option	90° (4 outlet directions)
Connection cross section max.	0,75 mm²

Installation | Connection

Tightening torque	0,6 Nm
Width across flats	SW18

Device protection | Electrical

Additional condition protection degree	inserted, screwed
Pollution Degree	3
Overvoltage category (EN 60664-1)	III
Overvoltage category (EN 60950-1)	II
Rated surge voltage	1,5 kV
Material group (IEC 60664-1)	III

Mechanical data | Material data

Material housing	PA

Mechanical data | Mounting data

Height	38 mm
Width	40 mm
Depth	20 mm
Mounting method	inserted, screwed, Shaking protection
Clamping range min.	6 mm
Clamping range max.	8 mm

Environmental characteristics | Climatic

Operating temperature min.	-40 °C
Operating temperature max.	85 °C

Important installation notes

Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
