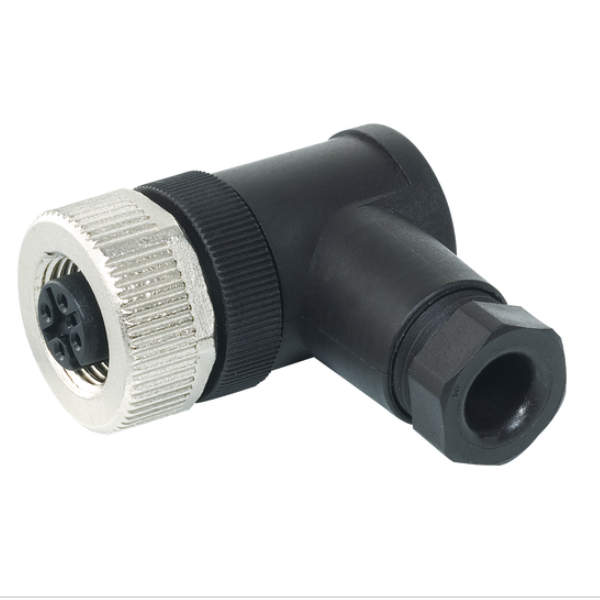

Đầu nối M12 female 90° A-code 5 chân 7000-13001-0000000
– 4-pol., max. 0,75mm², 4 – 6mm
– M12 female (cái) 90°, 5 chân, A-code
– Inserted, screwed
– IP67
Đầu nối M12 female 90° A-code 5 chân 7000-13001-0000000 là đầu nối được sử dụng phổ biến trong hệ thống tự động hóa: sensor, actuator…
(4-pol., max. 0,75mm², 4 – 6mm)
– M12 female (cái) 90°, 5 chân, A-code
– Inserted, screwed
– Vỏ nhựa có khả năng chống hóa chất và dầu tốt

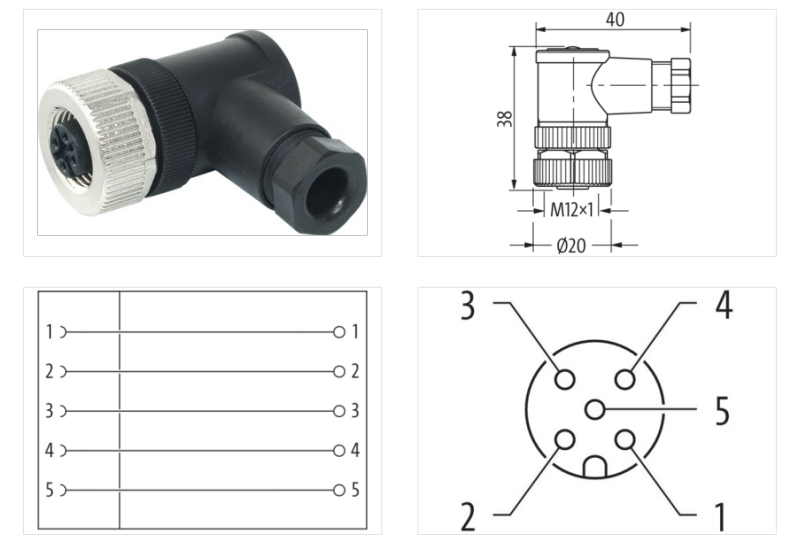

Thông số kỹ thuật – Đầu nối M12 female 90° A-code 5 chân 7000-13001-0000000
Header
| Material short text | MSD-U7 |
Side 1
| Family construction form | M12 |
| No. of poles | 5 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW18 |
| Cable outlet | angled |
| Degree of protection (EN IEC 60529) | IP67 |
Side 2
| Mounting method | Field-wireable |
Electrical data | Supply
| Operating voltage AC max. | 60 V |
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
| Operating voltage AC max. (UL-listed) | 125 V |
| Operating voltage DC max. (UL-listed) | 125 V |
| Current operating per contact max. (URc.) | 3 A |
Diagnostics
| Status indication LED | No |
Installation
| Rotation option | 90° (4 outlet directions) |
| Connection cross section max. | 0,75 mm² |
Installation | Connection
| Tightening torque | 0,6 Nm |
| Width across flats | SW18 |
Device protection
| Shielded | No |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Overvoltage category (EN 60664-1) | III |
| Overvoltage category (EN 60950-1) | II |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | III |
Mechanical data | Material data
| Material housing | PA |
Mechanical data | Mounting data
| Height | 38 mm |
| Width | 40 mm |
| Depth | 20 mm |
| Mounting method | inserted, screwed |
| Clamping range min. | 4 mm |
| Clamping range max. | 6 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
| Operating temperature max. | 85 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
