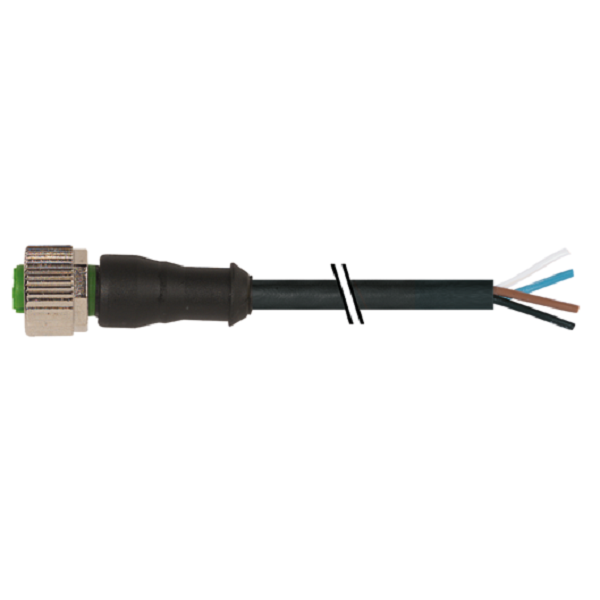

Đầu nối M12 female 4 chân A-code có cáp 6m của Murrelektronik 7000-12221-6340600

Đầu nối M12 female 4 chân A-code có cáp 6m của Murrelektronik 7000-12221-6340600 là một loại cáp tín hiệu có đầu nối, M12, female 0°, 4 chân

(PUR 4×0.34 bk UL/CSA+drag ch. 6m)
– M12 female, 4 chân, A-cod, có cáp
– Có sẵn cáp dài 6m

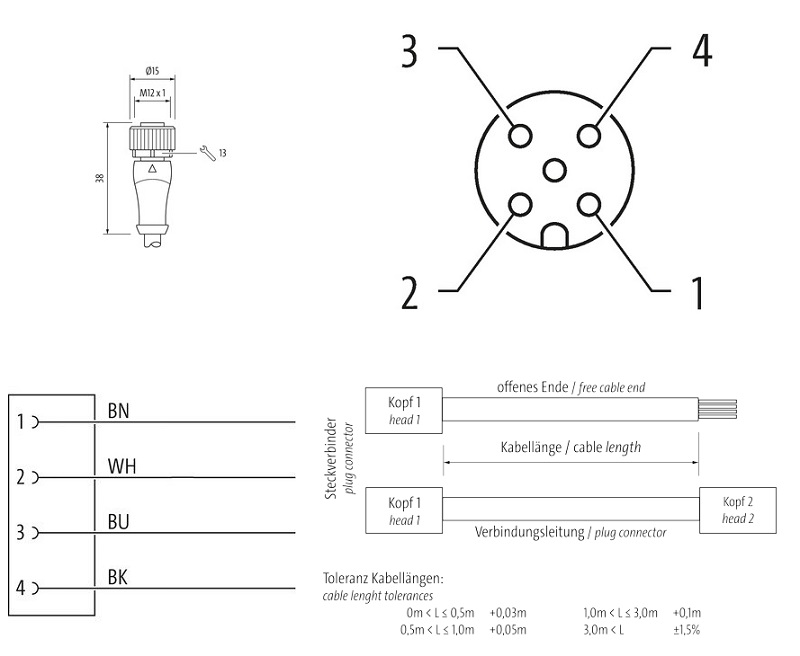

Đầu nối M12 female 4 chân A-code có cáp 6m của Murrelektronik 7000-12221-6340600 - detail

– Vỏ nhựa có khả năng chống chịu tốt với hóa chất và dầu nhớt

Sản phẩm tương tự – Đầu nối M12 female A-code có cáp 7.5m Murrelektronik 7000-12221-6340750

Thông số kỹ thuật – Đầu nối M12 female 4 chân A-code có cáp 6m của Murrelektronik 7000-12221-6340600

Cable length	6 m

Side 1

Tightening torque	0,6 Nm
Mounting method	inserted, screwed
Coating contact	gold plated
Family construction form	M12
Thread	M12 x 1
suitable for corrugated tube (internal Ø)	10 mm
Cable outlet	straight
Coding	A
Material contact	Copper alloy
Material	PUR
No. of poles	4
Width across flats	SW13
Degree of protection (EN IEC 60529)	IP65, IP66K, IP67

Side 2

Stripping length (jacket)	20 mm
Family construction form	free cable end

Electrical data | Supply

Operating voltage AC max.	250 V
Operating voltage DC max.	250 V
Current operating per contact max.	4 A

Diagnostics

Status indication LED	no

Installation | Connection

Stripping length (jacket)	20 mm
Mounting set	M12 x 1
Gender	female

Device protection | Electrical

Degree of protection (EN IEC 60529)	IP65, IP67, IP66K
Additional condition protection degree	inserted, screwed
Pollution Degree	3
Rated surge voltage	2,5 kV
Material group (IEC 60664-1)	I

Mechanical data | Material data

Coating locking	Nickeled
Coating of fitting	nickel plated
Locking material	Zinc die-casting
Material screw connection	Zinc die-casting

Mechanical data | Mounting data

Mounting method	inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min.	-30 °C
Operating temperature max.	85 °C
Additional condition temperature range	depending on cable quality

Important installation notes

Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Conformity

Product standard	DIN EN 61076-2-101 (M12)
