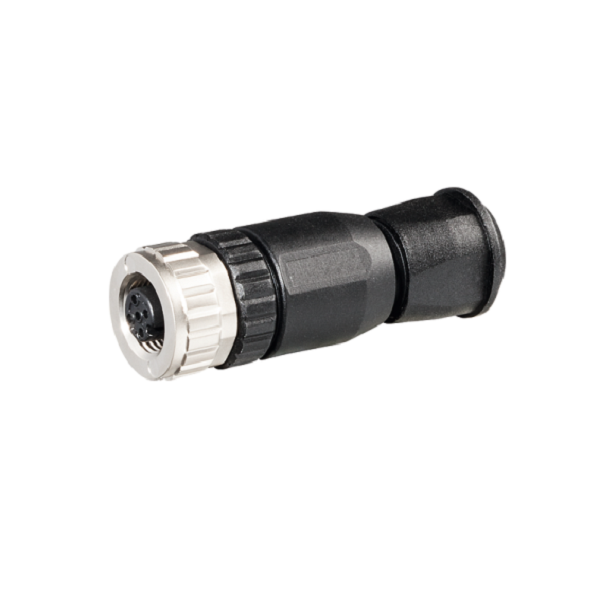

Đầu nối M12 female 0° A-code vặn vít

Đầu nối M12 female 0° A-code vặn vít 7000-12931-0000000: là đầu nối công nghiệp loại M12, thường dùng để kết nối tín hiệu điều khiển hoặc tín hiệu từ cảm biến…, không có sẵn cáp

– 5-pol., 0,14 – 1,5mm², 2,5 – 8mm
– Screw terminals

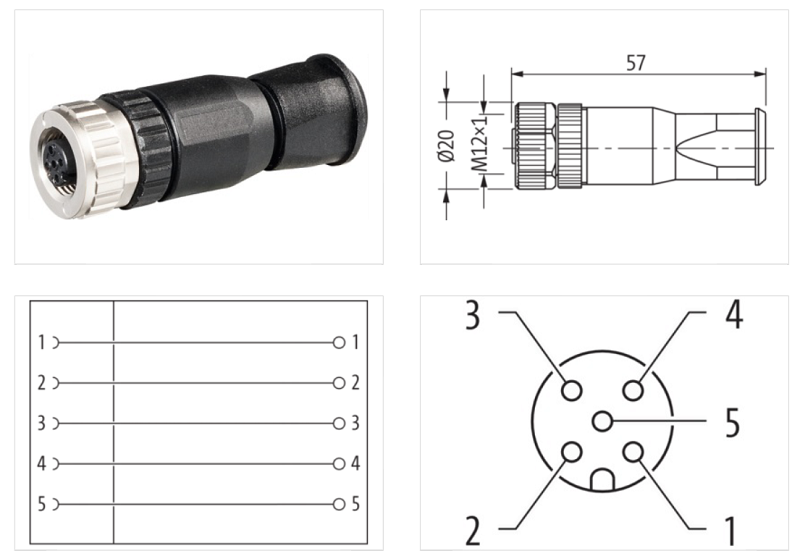

Đầu nối M12 female 0° A-code vặn vít 7000-12931-0000000 - DETAIL

– Vỏ nhựa có khả năng chống hóa chất và dầu tốt

Thông số kỹ thuật – Đầu nối M12 female 0° A-code vặn vít 7000-12931-0000000

Header

Material short text	MSBL0-U

Side 1

Side 2

Mounting method	field-wireable

Electrical data | Supply

Operating voltage AC max.	60 V
Operating voltage DC max.	60 V

Installation

Connection cross section max.	1.5 mm²
Cross section connection with wire end ferrule min.	0.14 mm²
Cross section connection with wire end ferrule max.	1.5 mm²
Cross section connection with wire end ferrule AWG min.	26 AWG
Cross section connection with wire end ferrule AWG max.	16 AWG

Installation | Connection

Tightening torque	0.6 Nm
Mating cycles min.	100

Device protection | Electrical

Additional condition protection degree	inserted, screwed
Pollution Degree	3/2

Mechanical data | Material data

Material gasket	NBR, FPM

Mechanical data | Mounting data

Environmental characteristics | Climatic

Operating temperature min.	-30 °C
Operating temperature max.	85 °C

Important installation notes

Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
