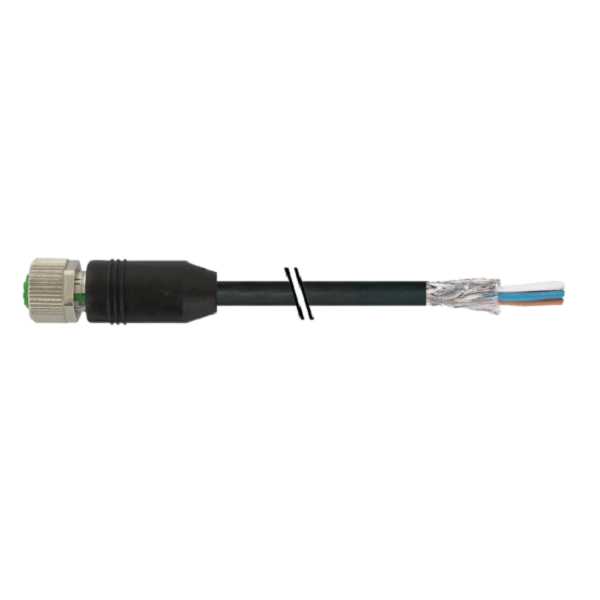

Đầu nối M12 female 0° A-code có cáp 10m của Murrelektronik 7000-13201-6011000

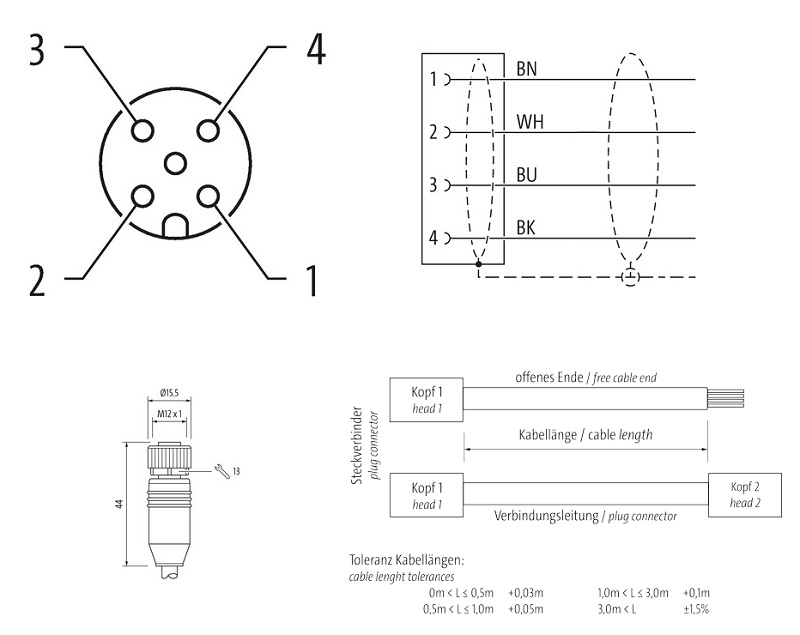

– Female (đầu nối cái), A-code, 4 chân, 0°
– Chiều dài cáp: 10m
– Cáp có shielded (bọc giáp chống nhiễu)
– IP65, IP66K, IP67
Đầu nối M12 female 0° A-code có cáp 10m của Murrelektronik 7000-13201-6011000 là đầu nối 0°, có cáp, M12, female (đầu nối cái), A-code, 4 chân, cáp có shield dài 10 mét
– PVC 4×0.34 shielded bk UL/CSA 10m
– Lắp kiểu inserted, screwed
– Vỏ nhựa có khả năng chống chịu hóa chất và dầu tốt
Thông số kỹ thuật – Đầu nối M12 female 0° A-code có cáp 10m của Murrelektronik 7000-13201-6011000
| Cable length | 10 m |
|---|
| Tightening torque | 0,6 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Family construction form | M12 |
| Thread | M12 x 1 |
| Coding | A |
| Material | PUR |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
| Operating voltage AC max. | 60 V |
|---|---|
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
| Mounting set | M12 x 1 |
|---|
| Additional condition protection degree | inserted, screwed |
|---|---|
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
| Coating locking | Nickeled |
|---|---|
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Material screw connection | Zinc die-casting |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
|---|---|
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Product standard | DIN EN 61076-2-101 (M12) |
|---|
