Đầu nối M12 female 0° A-code 5 chân

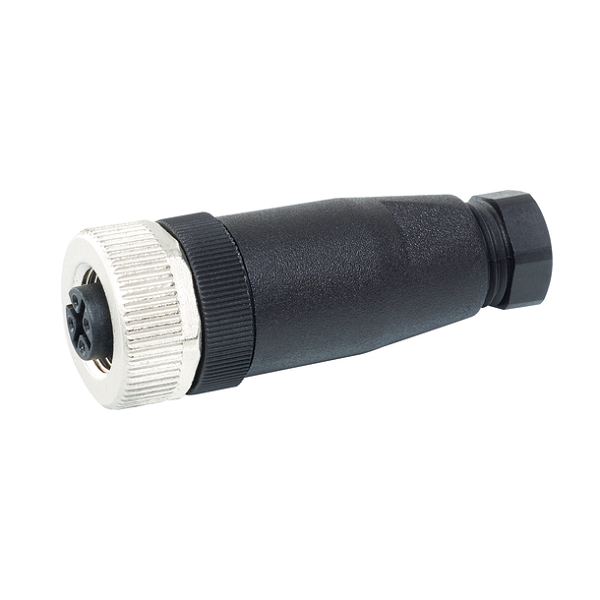

Đầu nối M12 female 0° A-code 5 chân 7000-12961-0000000

– Là đầu nối thẳng
– Female (đầu cái), 5 chân, A-code
– Screw terminals
– IP67

Đầu nối M12 female 0° A-code 5 chân 7000-12961-0000000: là đầu nối thẳng, female (cái), 5 chân, screw terminals

– 5-pol., max. 0,75mm², 6 – 8mm
– Đầu nối M12 female (cái), 5 chân, A-code
– Screw terminals

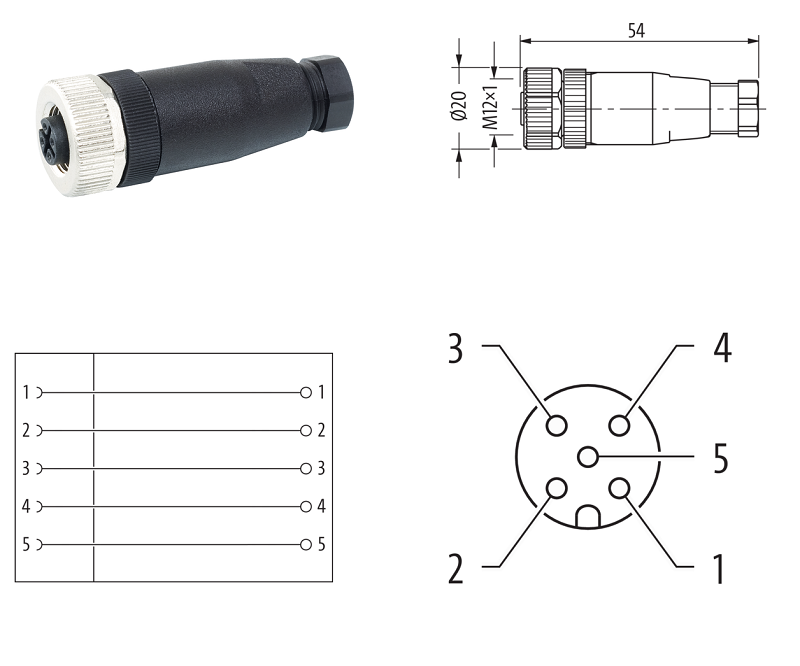

Đầu nối M12 female 0° A-code 5 chân 7000-12961-0000000 - DETAIL

– Vỏ nhựa có khả năng chống hóa chất và dầu tốt, phù hợp với môi trường khắc nghiệt tỏng công nghiệp

Thông số kỹ thuật – Đầu nối M12 female 0° A-code 5 chân 7000-12961-0000000

Header

Material short text	MSB-U9

Side 1

Family construction form	M12
Degree of protection (EN IEC 60529)	IP67

Electrical data | Supply

Operating voltage AC max.	60 V
Operating voltage DC max.	60 V
Current operating per contact max.	4 A
Operating voltage AC max. (UL-listed)	125 V
Operating voltage DC max. (UL-listed)	125 V
Current operating per contact max. (URc.)	3 A

Installation

Connection cross section max.	0.75 mm²

Installation | Connection

Tightening torque	0.6 Nm
Width across flats	SW18

Device protection | Electrical

Additional condition protection degree	inserted, screwed
Pollution Degree	3
Overvoltage category (EN 60664-1)	III
Overvoltage category (EN 60950-1)	II
Rated surge voltage	1.5 kV

Mechanical data | Material data

Material housing	PA

Mechanical data | Mounting data

Height	54 mm
Width	20 mm
Depth	20 mm
Mounting method	inserted, screwed, Shaking protection
Clamping range min.	6 mm
Clamping range max.	8 mm

Environmental characteristics | Climatic

Operating temperature min.	-40 °C
Operating temperature max.	85 °C

Important installation notes

Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
