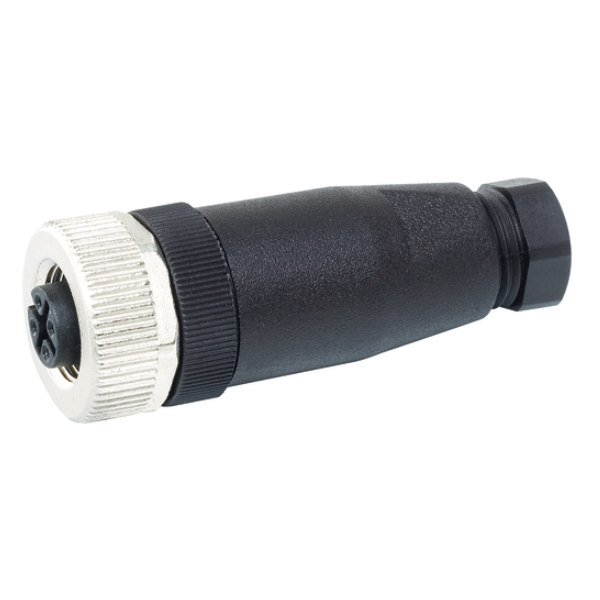

Đầu nối M12 female 0° A-code 4 chân field-wireable 7000-12901-0000000
– M12 cái(0°), 4 chân, A-code
– 4-pol., max. 0,75mm² 4 – 6mm
– Inserted, screwed, Shaking protection
– IP67
Đầu nối M12 female 0° A-code 4 chân field-wireable 7000-12901-0000000: là đầu nối loại M12, đầu cái 0°, 4 chân, A-code
(4-pol., max. 0,75mm² 4 – 6mm)

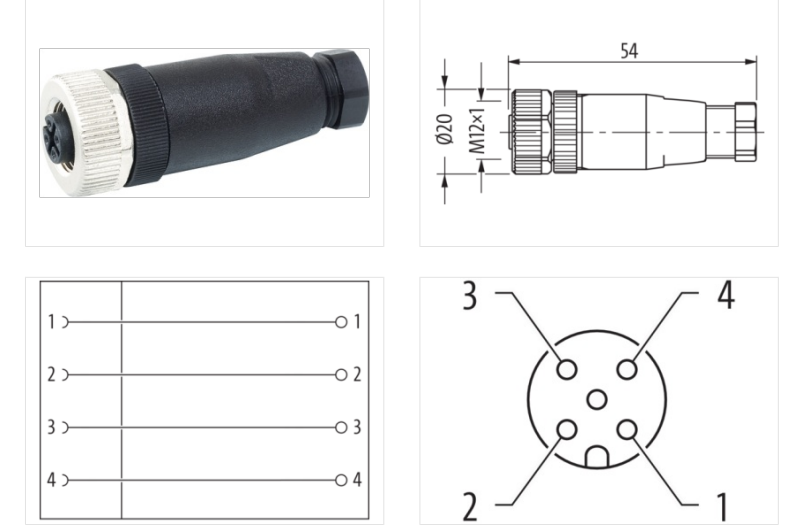

– Kích thước (W x H x D): 54 x 20 x 20 mm
– Kích thước kẹp: 4-6 mm
– Được sử dụng trong tự động hóa công nghiệp
– Có khả năng chống mài mòn và phù hợp với môi trường công nghiệp
Thông số kỹ thuật – Đầu nối M12 female 0° A-code 4 chân field-wireable 7000-12901-0000000
Header
| Material short text | MSB-T7 |
Side 1
| Family construction form | M12 |
| No. of poles | 4 |
| Coding | A |
| Gender | female |
| Mounting method | Field-wireable |
| Threaded hole | M12 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW18 |
| Cable outlet | straight |
| Material | PA |
| Material contact | Brass |
| Degree of protection (EN IEC 60529) | IP67 |
Side 2
| Mounting method | Field-wireable |
| Cable outlet | straight |
Electrical data | Supply
| Operating voltage AC max. | 250 V |
| Operating voltage DC max. | 250 V |
| Current operating per contact max. | 4 A |
Installation
| Connection cross section max. | 0,75 mm² |
| Cross section connection without wire end ferrule AWG max. | 18 AWG |
Installation | Connection
| Tightening torque | 0,6 Nm |
Device protection
| Shielded | No |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Overvoltage category (EN 60664-1) | II |
| Rated surge voltage | 2,5 kV |
| Insulation resistance min. | 100 mΩ |
| Material group (IEC 60664-1) | III |
Mechanical data | Mounting data
| Height | 54 mm |
| Width | 20 mm |
| Depth | 20 mm |
| Mounting method | inserted, screwed, Shaking protection |
| Clamping range min. | 4 mm |
| Clamping range max. | 6 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
| Operating temperature max. | 85 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Note on mounting | The plug connectors must not be connected or disconnected under load. Non-compliance and improper use can result in personal injury., The user must take suitable safety precautions to ensure that the plug connector cannot be accidentally disconnected., To |
Conformity
| Product standard | EN IEC 61076-2-101 (M12) |
