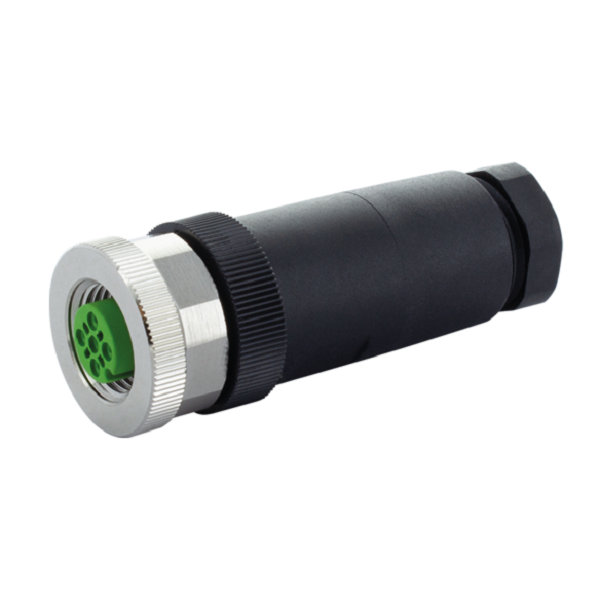

Đầu nối M12 female 0° A-cod. terminal vặn vít 7000-12962-0000000
– 5-pol., max. 0,75mm², 6 – 8mm
– M12, A-code, 5 chân, Female 0°
– Inserted, screwed
– IP67
Đầu nối M12 female 0° A-cod. terminal vặn vít 7000-12962-0000000: là đầu nối M12, 5 chân, A-code, đầu nối cái 0°, phù hợp cho các kết nối tín hiệu trong môi trường công nghiệp, nơi cần độ bền cao với dầu mỡ, hóa chất.
– 5-pol., max. 0,75mm², 6 – 8mm
– Đầu nối M12 female (cái), 5 chân, A-code
– Screw terminals
– Vỏ nhựa có khả năng chống hóa chất và dầu tốt
Thông số kỹ thuật – Đầu nối M12 female 0° A-cod. terminal vặn vít 7000-12962-0000000
| Family construction form | M12 |
|---|---|
| No. of poles | 5 |
| Coding | A |
| Material contact | Copper alloy |
| Degree of protection (EN IEC 60529) | IP67 |
| Contact resistance max. | 8 mΩ |
|---|
| Operating voltage DC max. | 60 V |
|---|---|
| Current operating per contact max. | 4 A |
| Connection cross section max. | 0.75 |
|---|
| Connection | Screw terminals SK |
|---|---|
| Tightening torque | 0.6 Nm |
| Width across flats | SW18 |
| Additional condition protection degree | inserted, screwed |
|---|---|
| Pollution Degree | 3 |
| Overvoltage category (EN 60950-1) | II |
| Insulation resistance min. | 100 |
| Material housing | PBT |
|---|---|
| Coating contact | gold plated |
| Locking material | Copper alloy |
| Clamping range min. | 6 mm |
|---|---|
| Clamping range max. | 8 mm |
| Operating temperature min. | -40 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
