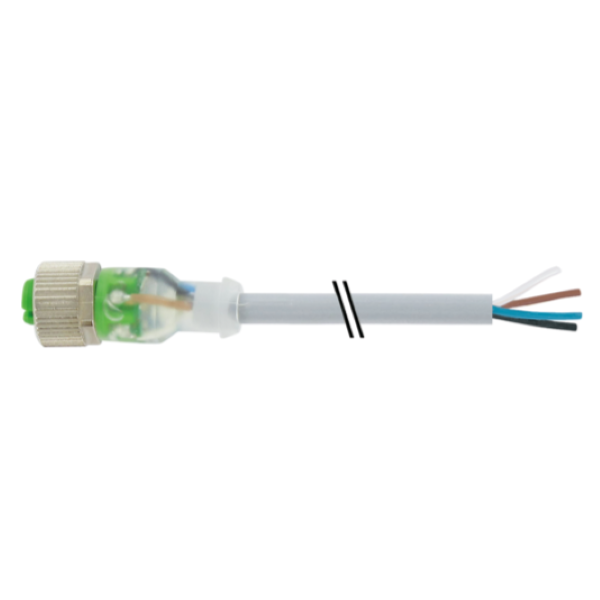

Đầu nối M12 female 0° A-cod 7000-12281-2230300
– Là đầu nối 0°, có sẵn cáp dài 3m, M12
– Female, 4 chân, A-cod.
– Screwed terminal
– Có LED báo trạng thái
– IP65, IP66K, IP67
Đầu nối M12 female 0° A-cod 7000-12281-2230300 là đầu nối thẳng, có sẵn cáp dài 3m, M12, 4 chân, female, A-cod.
(PUR 3×0.34 gy UL/CSA 3m)

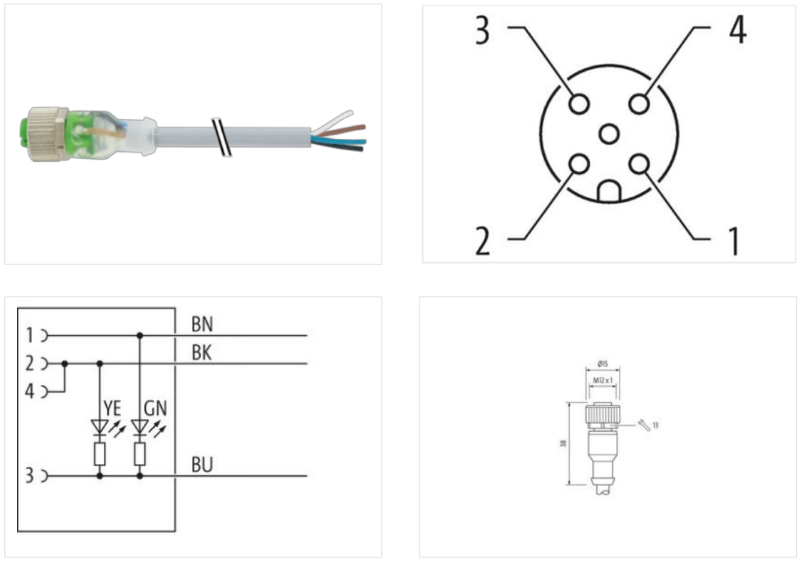

– Có LED báo trạng thái ( X2 LED PNP)
– Vỏ nhựa có khả năng chống chịu hóa chất và dầu tốt
Thông số kỹ thuật – Đầu nối M12 female 0° A-cod 7000-12281-2230300
| Cable length | 3 m |
Side 1
| Tightening torque | 0,6 Nm |
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M12 |
| Thread | M12 x 1 |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Cable outlet | straight |
| Coding | A |
| Material contact | Copper alloy |
| Material | PUR |
| No. of poles | 4 |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
Side 2
| Stripping length (jacket) | 20 mm |
| Family construction form | free cable end |
Electrical data | Supply
| Operating voltage DC | 24 V |
| Operating voltage DC min. | 18 V |
| Operating voltage DC max. | 30 V |
| Operating voltage DC max. (UL-listed) | 30 V |
| Current operating per contact max. | 4 A |
Diagnostics
| Status indication LED | green, yellow |
Installation | Connection
| Stripping length (jacket) | 20 mm |
| Mounting set | M12 x 1 |
| Gender | female |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 0,8 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Coating locking | Nickeled |
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Material screw connection | Zinc die-casting |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
