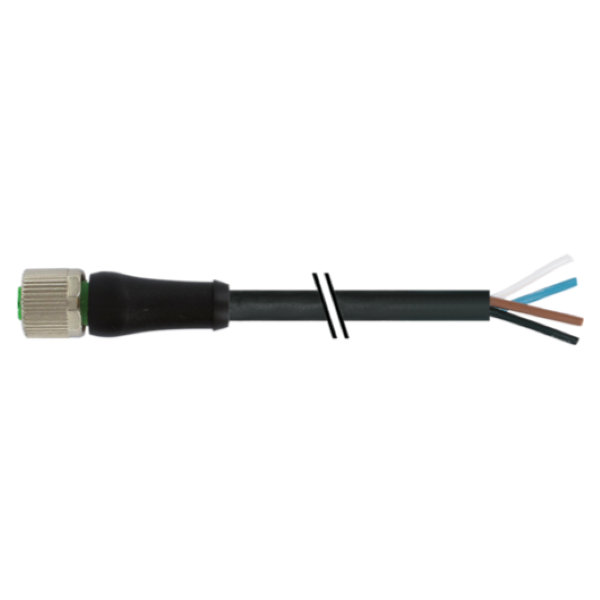

Đầu nối M12 có cáp Tcode 7000-P7221-P071000 Murrelektronik
– Là đầu nối 0°, có sẵn cáp dài 10m, M12
– Female (đầu nối cái), 4 chân, T-cod
– IP65, IP67
Đầu nối M12 có cáp Tcode 7000-P7221-P071000 Murrelektronik là đầu nối 0°, có sẵn cáp dài 10m, M12, 4 chân, female (đầu nối cái), T-cod.
(PUR 4×1.5 bk UL/CSA+drag ch. 10m)
Khả năng chống hóa chất và dầu tốt, phù hợp với môi trường khắc nghiệt tỏng công nghiệp
Thông số kỹ thuật – Đầu nối M12 có cáp Tcode 7000-P7221-P071000 Murrelektronik

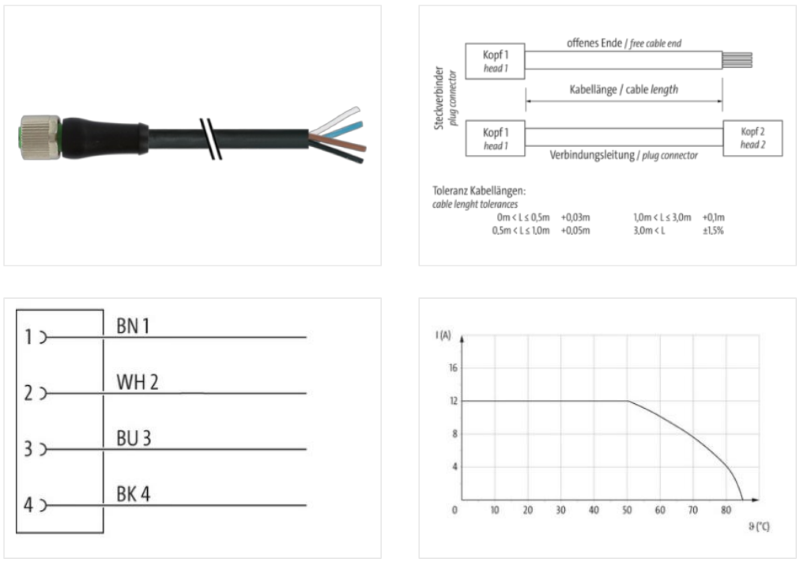

| Cable length | 10 m |
Side 1
| Tightening torque | 0,6 Nm |
| Coating contact | gold plated |
| Family construction form | M12P |
| Thread | M12 x 1 |
| suitable for corrugated tube (internal Ø) | 12 mm |
| Coding | T |
| Material contact | Copper alloy |

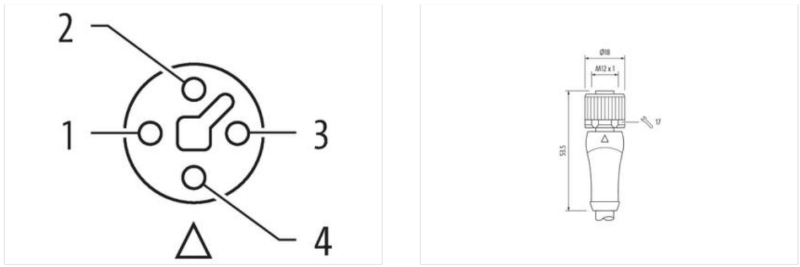

| No. of poles | 4 |
Side 2
| Stripping length (jacket) | 100 mm |
Electrical data | Supply
| Operating voltage DC max. | 63 V |
| Current operating per contact max. | 12 A |
Diagnostics
| Status indication LED | no |
Installation | Connection
| Stripping length (jacket) | 100 mm |
| Width across flats | SW17 |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP65, IP67 |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Coating locking | Nickeled |
| Material gasket | FKM |
| Material housing | PUR |
| Locking material | Zinc die-casting |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
Conformity
| Product standard | IEC 61076-2-111 |
