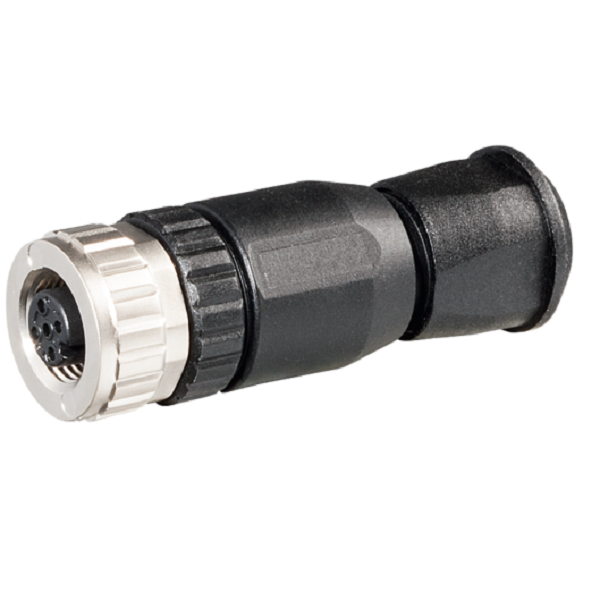

Đầu nối M12 cái, thẳng, A-cod, Murrelektronik 7000-12931-0000000 - Công ty Cổ phần Tự động Công nghiệp Omina

Đầu nối M12 cái, thẳng, A-cod, Murrelektronik 7000-12931-0000000 là đầu nối công nghiệp loại M12, thường dùng để kết nối tín hiệu điều khiển hoặc tín hiệu từ cảm biến. Không có cáp
– 5-pol., 0,14 – 1,5mm², 2,5 – 8mm
– Screw terminals

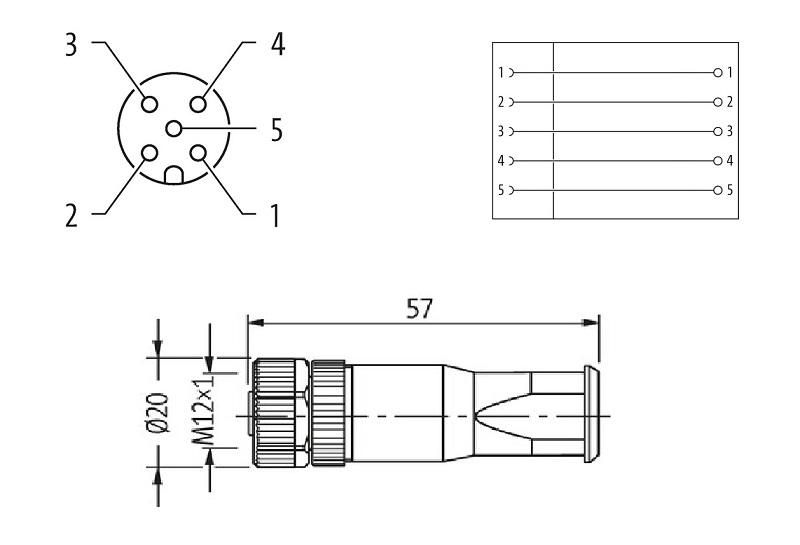

Đầu nối M12 cái, thẳng, A-cod,Murrelektronik 7000-12931-0000000 - DETAIL

– Vỏ nhựa có khả năng chống hóa chất và dầu tốt

Thông số kỹ thuật – Đầu nối M12 cái, thẳng, A-cod,Murrelektronik 7000-12931-0000000

Side 1

Tightening torque	0,6 Nm
Mounting method	inserted, screwed, pluggable
Coating contact	gold plated
Family construction form	M12
Thread	M12 x 1
Gender	female
Cable outlet	straight
Coding	A
Material contact	CuZn
Material	PA6 GF30
No. of poles	5
Width across flats	SW18
Degree of protection (EN IEC 60529)	IP67

Side 2

Mounting method	field-wireable

Electrical data | Supply

Operating voltage AC max.	60 V
Operating voltage DC max.	60 V
Operating current per contact max. (40°C)	7,5 A

Installation

Cross section connection with wire end ferrule min.	0,14 mm²
Cross section connection with wire end ferrule max.	1,5 mm²
Cross section connection with wire end ferrule AWG min.	26 AWG
Cross section connection with wire end ferrule AWG max.	16 AWG

Installation | Connection

Tightening torque	0,6 Nm
Mating cycles min.	100

Device protection | Electrical

Additional condition protection degree	inserted, screwed
Pollution Degree	3/2

Mechanical data | Material data

Material gasket	FPM, NBR

Mechanical data | Mounting data

Mounting method	Schraubgewinde
Clamping range min.	2,5 mm
Clamping range max.	8 mm
Height	57 mm
Width	20 mm
Depth	20 mm

Environmental characteristics | Climatic

Operating temperature min.	-30 °C
Operating temperature max.	85 °C

Important installation notes

Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
