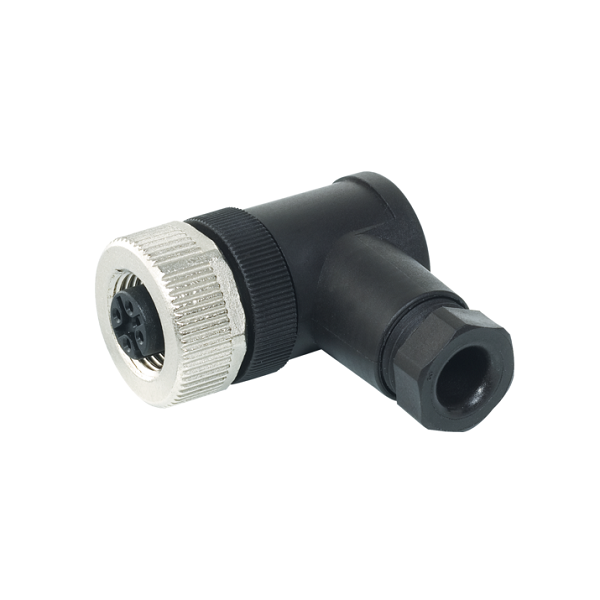

Đầu nối M12 cái 90° A-code 4 chân 7000-12981-0000000
– 4-pol., max. 0,75mm², 4 – 6mm
– M12 female (cái) 90°,4 chân, A-code
– Inserted, screwed
– IP67
Đầu nối M12 cái 90° A-code 4 chân 7000-12981-0000000: là đầu nối được sử dụng phổ biến trong hệ thống tự động hóa
(4-pol., max. 0,75mm², 4 – 6mm)
– M12 female (cái) 90°,4 chân, A-code
– Inserted, screwed
– Vỏ nhựa có khả năng chống hóa chất và dầu tốt

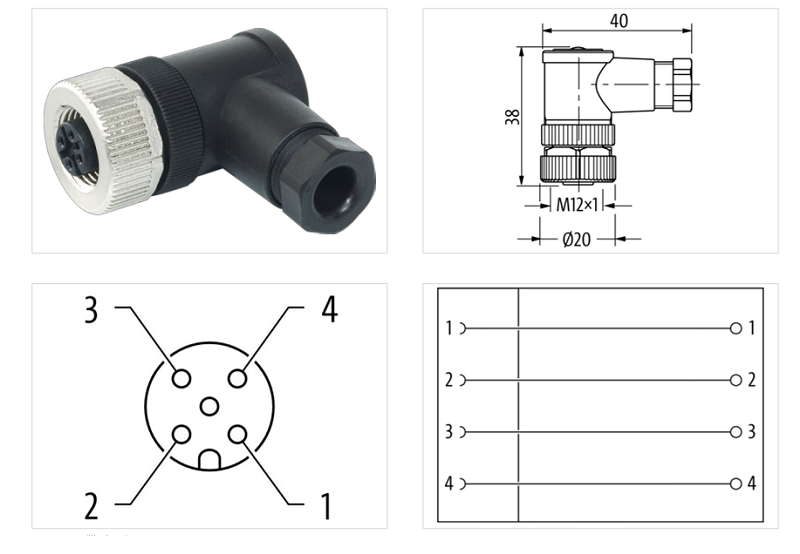

Thông số kỹ thuật – Đầu nối M12 cái 90° A-code 4 chân 7000-12981-0000000
| Family construction form | M12 |
|---|---|
| No. of poles | 4 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW18 |
| Cable outlet | angled |
| Material | PA |
| Material contact | Brass |
| Degree of protection (EN IEC 60529) | IP67 |
| Mounting method | Field-wireable |
|---|---|
| Cable outlet | straight |
| Operating voltage AC max. | 250 V |
|---|---|
| Operating voltage DC max. | 250 V |
| Current operating per contact max. | 4 A |
| Status indication LED | No |
|---|
| Rotation option | 90° (4 outlet directions) |
|---|---|
| Connection cross section max. | 0,75 mm² |
| Cross section connection without wire end ferrule AWG max. | 18 AWG |
| Tightening torque | 0,6 Nm |
|---|
| Shielded | No |
|---|
| Additional condition protection degree | inserted, screwed |
|---|---|
| Pollution Degree | 3 |
| Overvoltage category (EN 60664-1) | II |
| Overvoltage category (EN 60950-1) | II |
| Rated surge voltage | 2,5 kV |
| Material group (IEC 60664-1) | III |
| Material housing | PA |
|---|---|
| Locking material | Zinc die-casting |
| Coating locking | nickel plated |
| Height | 35 mm |
|---|---|
| Width | 35 mm |
| Depth | 20 mm |
| Mounting method | inserted, screwed, Shaking protection |
| Clamping range min. | 4 mm |
| Clamping range max. | 6 mm |
| Operating temperature min. | -40 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Note on mounting | The plug connectors must not be connected or disconnected under load. Non-compliance and improper use can result in personal injury., The user must take suitable safety precautions to ensure that the plug connector cannot be accidentally disconnected., To |
| Product standard | EN IEC 61076-2-101 (M12) |
|---|
