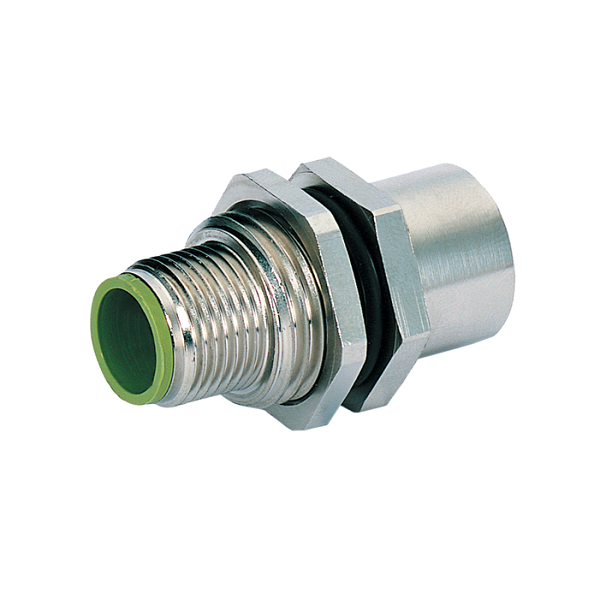

Đầu nối lắp mặt tủ M12 male/ female A-code 5 chân

Đầu nối lắp mặt tủ M12 male/ female A-code 5 chân 7000-42111-0000000

– M12, 5-pole-PANEL FEED THROUGH A-CODED
– IP65, IP67

Đầu nối lắp mặt tủ M12 male/ female A-code 5 chân 7000-42111-0000000: là một loại đầu nối M12, male-female, được thiết kế để có thể dễ dàng kết nối với thiết bị bên trong tủ mà không cần mở cửa tủ điện

– M12, 5 chân, PANEL FEED THROUGH A-CODED

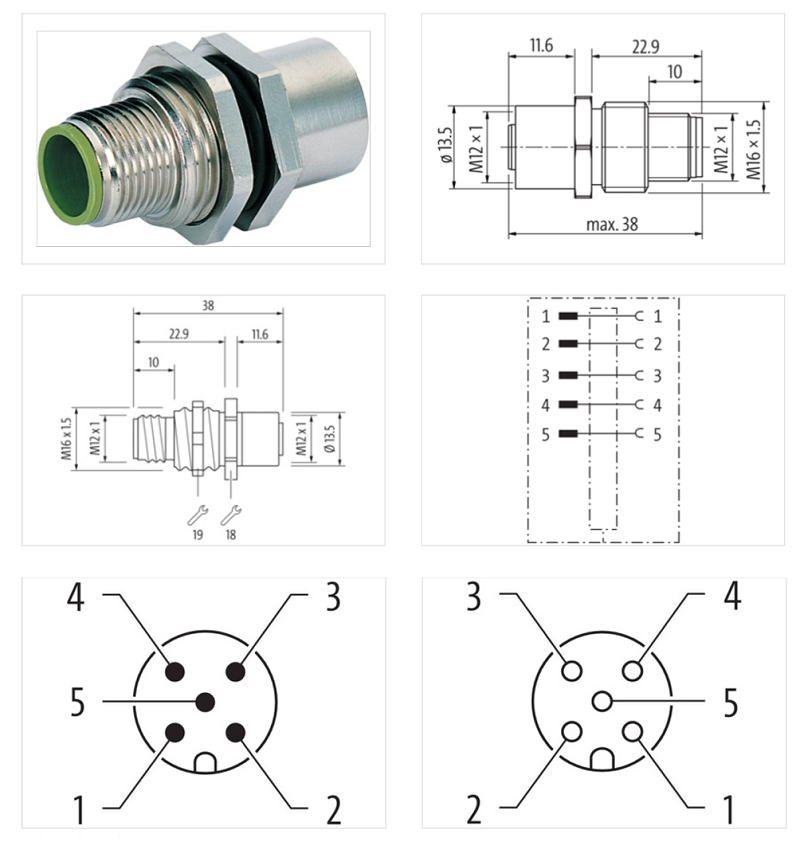

Đầu nối lắp mặt tủ M12 male/ female A-CODE 5 chân 7000-42111-0000000 - DETAIL
– IP65, IP67

Thông số kỹ thuật – Đầu nối lắp mặt tủ M12 male/ female A-CODE 5 chân 7000-42111-0000000

Side 1

Family construction form	M12
Coding	A

Side 2

Family construction form	M12
Coding	A

Electrical data | Supply

Operating voltage AC max.	60 V
Operating voltage DC max.	60 V
Current operating per contact max.	4 A
Operating voltage AC (UL-listed)	30 V
Operating voltage DC (UL-listed)	30 V

Installation | Connection

Tightening torque	0,6 Nm
Mounting set	M16 x 1.5

Device protection | Electrical

Degree of protection (EN IEC 60529)	IP67, IP65
Protection NEMA	6P, 4, 3
Additional condition protection degree	inserted, screwed
Pollution Degree	2
Rated surge voltage	1,5 kV
Material group (IEC 60664-1)	I

Mechanical data | Material data

Material housing	Brass
Coating housing	nickel plated

Mechanical data | Mounting data

Mounting method	inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min.	-30 °C
Operating temperature max.	85 °C

Important installation notes

Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Approvals

UL 50E	yes
