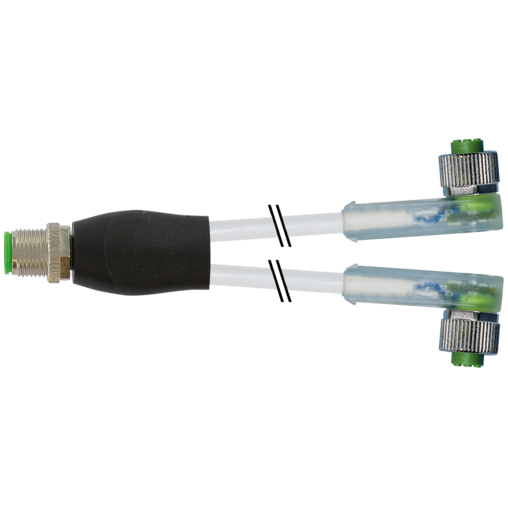

Đầu nối chữ Y của Murrelektronik 7000-40781-2330030
– Là đầu nối Y 2 nhánh, có cáp mỗi nhánh dài 0.3 m

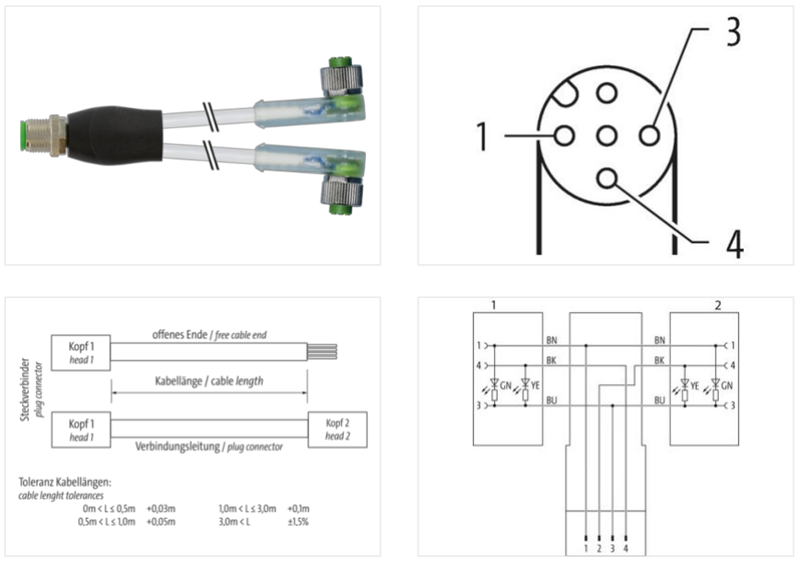

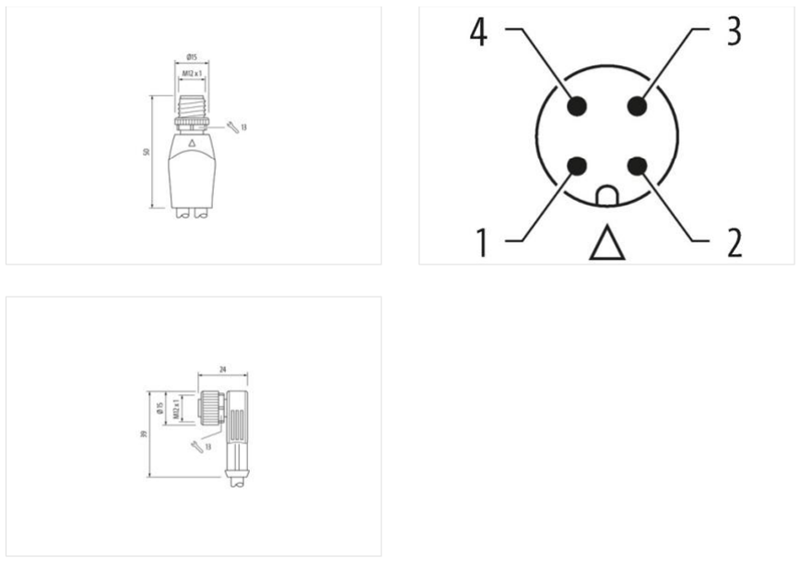

– Đầu nối M12 0°, male (đực), 4 chân — 2 x M12 90°, female (cái), 3 chân, A-code, có LED (vàng/ XLC)
Đầu nối chữ Y của Murrelektronik 7000-40781-2330030 là đầu nối Y 2 nhánh, có cáp mỗi nhánh dài 0.3 m; đầu nối M12 0°, male (đực), 4 chân — 2 x M12 90°, female (cái), 3 chân, A-code, có LED
(PUR 3×0.34 gy UL/CSA+drag ch. 0.3m)
Khả năng chống hóa chất và dầu tốt, phù hợp với môi trường khắc nghiệt tỏng công nghiệp
Sản phẩm tương tự: Đầu nối chữ Y (Y connector)
Thông số kỹ thuật – Đầu nối chữ Y của Murrelektronik 7000-40781-2330030
| Cable length | 0,3 m |
Side 1
| Tightening torque | 0,6 Nm |
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M12 |
| Thread | M12 x 1 |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Gender | female |
| Cable outlet | angled |
| Coding | A |
| Material contact | Copper alloy |
| Material | PUR |
| No. of poles | 3 |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
Side 2
| Tightening torque | 0,6 Nm |
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M12 |
| Thread | M12 x 1 |
| Gender | female |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Cable outlet | angled |
| Coding | A |
| Material contact | Copper alloy |
| Material | PUR |
| No. of poles | 3 |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
Side 3
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M12 |
| Coding | A |
| Material contact | Copper alloy |
| No. of poles | 4 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
| Gender | male |
| Cable outlet | straight |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| Thread | M12 x 1 |
Electrical data | Supply
| Operating voltage DC | 24 V |
| Operating voltage DC min. | 18 V |
| Operating voltage DC max. | 30 V |
| Operating voltage DC max. (UL-listed) | 30 V |
| Current operating per contact max. | 4 A |
| Current consumption max. | 5 mA |
Diagnostics
| Status indication LED | green, yellow |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 0,8 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Coating locking | Nickeled |
| Coating of fitting | nickel plated |
| Material gasket | FKM |
| Locking material | Zinc die-casting |
| Material screw connection | Zinc die-casting |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
