Đầu nối chia T-Coupler Slimline M12 male / 2x M12 female A-code 5 chân 7000-41151-0000000
– Là đầu nối chuyển đổi: 1 x M12 male (đực( –> 2 x M12 female (cái)
– 5 chân, A.-code
– IP67

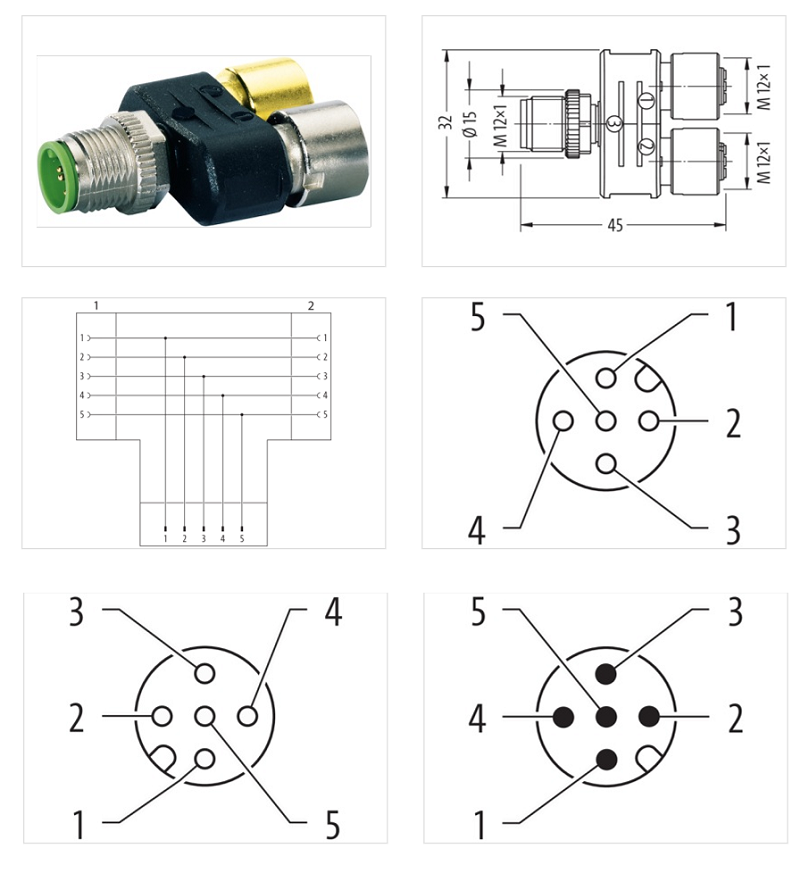

Đầu nối chia T-Coupler Slimline M12 male / 2x M12 female A-code 5 chân 7000-41151-0000000: là đầu chia 1 cổng M12 male (đực) thành 2 cổng M12 female (cái), 5 chân, A.-code
(5-pol. / 2x 5-pol.)
– T-coupler (Slim Line), mạch song song
– Vỏ nhựa có khả năng chống chịu hóa chất và dầu tốt
Thông số kỹ thuật – Đầu nối chia T-Coupler Slimline M12 male / 2x M12 female A-code 5 chân 7000-41151-0000000
| Family construction form | M12 |
|---|---|
| No. of poles | 5 |
| Coding | A |
| Gender | female |
| Mounting method | pluggable, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP67 |
| Family construction form | M12 |
|---|---|
| No. of poles | 5 |
| Coding | A |
| Gender | female |
| Mounting method | pluggable, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP67 |
| Family construction form | M12 |
|---|---|
| No. of poles | 5 |
| Coding | A |
| Gender | male |
| Mounting method | pluggable, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP67 |
| Operating voltage AC max. | 60 V |
|---|---|
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
| Operating voltage AC (UL-listed) | 30 V |
| Operating voltage DC (UL-listed) | 30 V |
| Status indication LED | no |
|---|
| Tightening torque | 0,6 Nm |
|---|---|
| Mounting set | M12 x 1 |
| Width across flats | SW 13 |
| Additional condition protection degree | inserted, screwed |
|---|---|
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Product standard | EN IEC 61076-2-101 (M12) |
|---|
