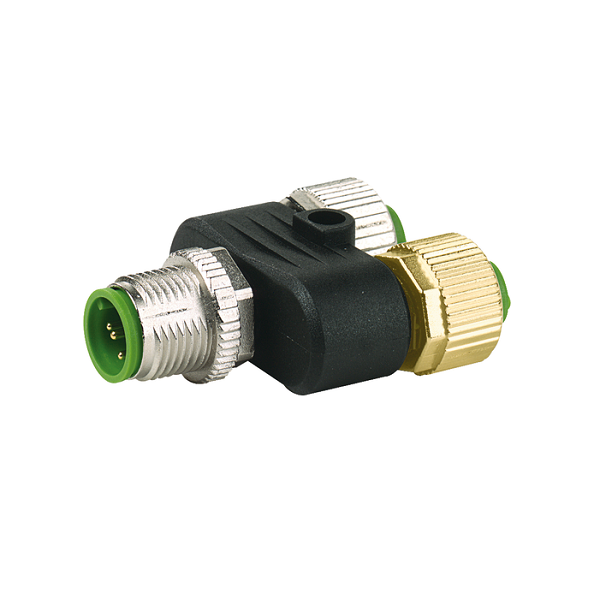

Đầu nối chia T-Coupler M12 male / 2x M12 female 5 chân 7000-41141-0000000 - HEADER

Đầu nối chia T-Coupler M12 male / 2x M12 female

Đầu nối chia T-Coupler M12 male / 2x M12 female 5 chân 7000-41141-0000000

– Là đầu nối chuyển đổi: 1 x M12 male (đực) 5 chân –> 2 x M12 female (cái) 5 chân
– T-coupler, mạch song song
– Pluggable, screwed
– IP67

Đầu nối chia T-Coupler M12 male / 2x M12 female 5 chân 7000-41141-0000000: là đầu nối chia hình chữ T dùng cho kết nối công nghiệp, giúp chia tín hiệu hoặc nguồn giữa các thiết bị làm tăng tính linh hoạt cho hệ thống kết nối cảm biến – thiết bị

(5-pol. / 2x 5-pol)
– Có 1 đầu đực M12 (5 chân) và 2 đầu cái M12 (5 chân)
– T-coupler, mạch song song

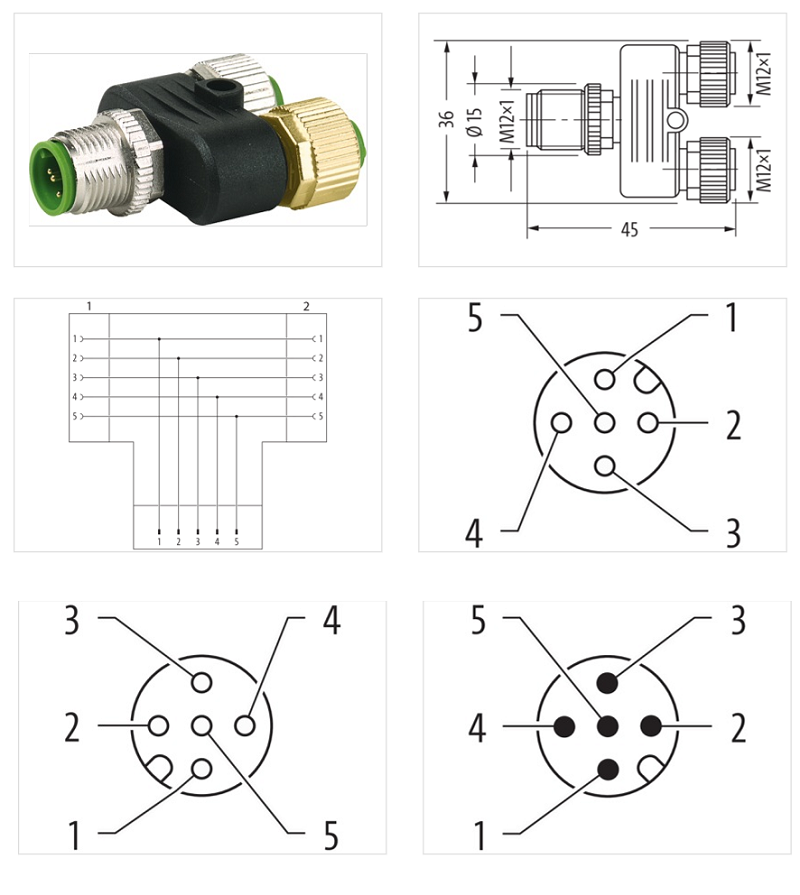

Đầu nối chia T-Coupler M12 male / 2x M12 female 5 chân 7000-41141-0000000 - DETAIL

– Vỏ nhựa có khả năng chống hóa chất và dầu tốt

Sản phẩm tương tự

Thông số kỹ thuật – Đầu nối chia T-Coupler M12 male / 2x M12 female 5 chân 7000-41141-0000000

Side 1
Family construction form M12
No. of poles 5
Coding A
Gender female
Mounting method pluggable, screwed
Threaded hole M12 x 1
Tightening torque 0,6 Nm
Width across flats SW13
Degree of protection (EN IEC 60529) IP67
Side 2
Family construction form M12
No. of poles 5
Coding A
Gender female
Mounting method pluggable, screwed
Threaded hole M12 x 1
Tightening torque 0,6 Nm
Width across flats SW13
Degree of protection (EN IEC 60529) IP67
Side 3
Family construction form M12
No. of poles 5
Coding A
Gender male
Mounting method pluggable, screwed
Threaded hole M12 x 1
Tightening torque 0,6 Nm
Width across flats SW13
Degree of protection (EN IEC 60529) IP67
Electrical data | Supply
Operating voltage AC max. 60 V
Operating voltage DC max. 60 V
Current operating per contact max. 4 A
Operating voltage AC (UL-listed) 30 V
Operating voltage DC (UL-listed) 30 V
Diagnostics
Status indication LED no
Installation | Connection
Tightening torque 0,6 Nm
Mounting set M12 x 1
Width across flats SW 13
Device protection | Electrical
Additional condition protection degree inserted, screwed
Pollution Degree 3
Rated surge voltage 1,5 kV
Material group (IEC 60664-1) I
Mechanical data | Material data
Locking material Zinc die-casting
Coating locking Nickeled
Mechanical data | Mounting data
Mounting method inserted, screwed, Shaking protection
Environmental characteristics | Climatic
Operating temperature min. -30 °C
Operating temperature max. 85 °C
Important installation notes
Note on bending radius Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
Conformity
Product standard EN IEC 61076-2-101 (M12)
