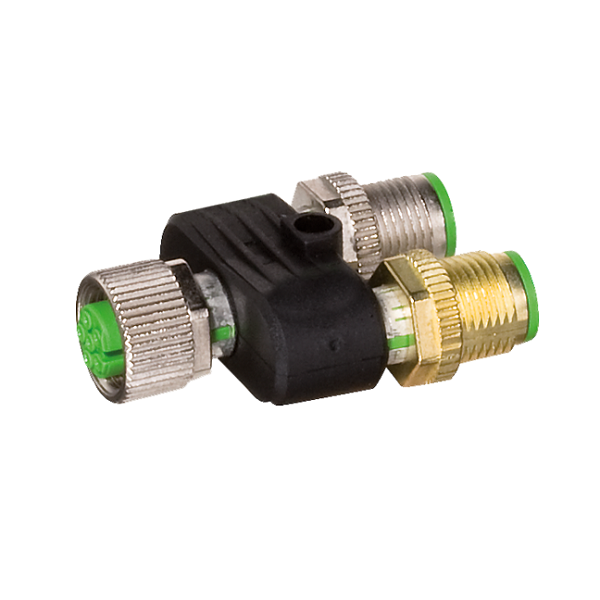

Đầu nối chia hình T M12 female / 2x M12 male A-code 7000-42721-0000000 - HEADER

Đầu nối chia hình T M12 female / 2x M12 male A-code

Đầu nối chia hình T M12 female / 2x M12 male A-code 7000-42721-000000

– Là đầu nối chuyển đổi: 2 x M12 male (đực) 5 chân –> 1 x M12 female (cái) 5 chân
– A-cod
– inserted, screwed
– IP67

Đầu nối chia hình T M12 female / 2x M12 male A-code 7000-42721-0000000: là đầu nối chia hình chữ T dùng cho kết nối công nghiệp

– 2 đầu đực M12 (5 chân, A-code) và 1 đầu cái M12 (5 chân, A-code), T-coupler

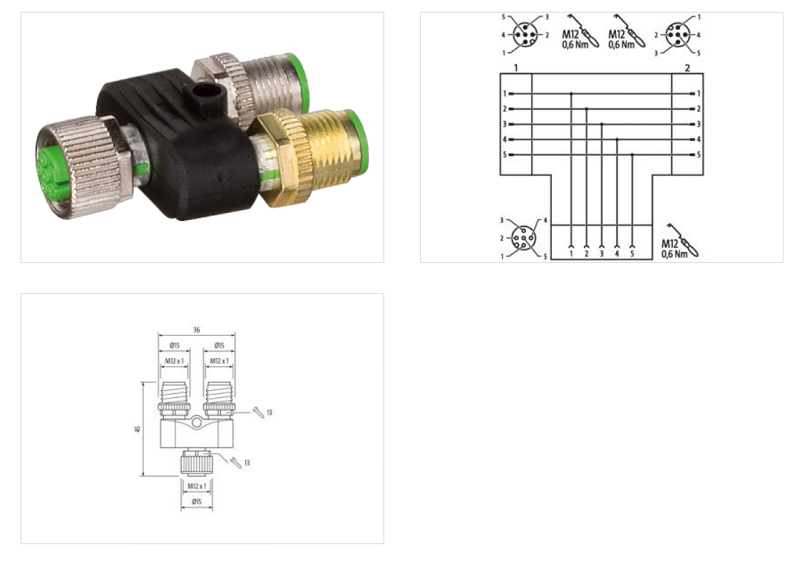

Đầu nối chia hình T M12 female / 2x M12 male A-code 7000-42721-0000000 - DETAIL

– Vỏ nhựa có khả năng chống hóa chất và dầu tốt

Sản phẩm tương tự

Thông số kỹ thuật – Đầu nối chia hình T M12 female / 2x M12 male A-code 7000-42721-0000000

Side 1
Tightening torque 0,6 Nm
Mounting method inserted, screwed
Family construction form M12
Thread M12 x 1
Gender male
Cable outlet straight
Coding A
Material contact Copper alloy
No. of poles 5
Width across flats SW13
Side 2
Tightening torque 0,6 Nm
Mounting method inserted, screwed
Family construction form M12
Thread M12 x 1
Gender male
Cable outlet straight
Coding A
Material contact Copper alloy
No. of poles 5
Width across flats SW13
Side 3
Mounting method inserted, screwed
Family construction form M12
Coding A
Material contact Copper alloy
No. of poles 5
Gender female
Cable outlet straight
Tightening torque 0,6 Nm
Width across flats SW13
Thread M12 x 1
Electrical data | Supply
Operating voltage DC max. 60 V
Operating voltage DC max. (UL-listed) 60 V
Current operating per contact max. 4 A
Installation | Connection
Tightening torque 0,6 Nm
Mounting set M12 x 1
Device protection | Electrical
Degree of protection (EN IEC 60529) IP67
Additional condition protection degree inserted, screwed
Pollution Degree 3
Rated surge voltage 1,5 kV
Material group (IEC 60664-1) I
Mechanical data | Mounting data
Mounting method inserted, screwed, Shaking protection
Environmental characteristics | Climatic
Operating temperature min. -25 °C
Operating temperature max. 85 °C
Important installation notes
Note on strain relief Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
Note on bending radius Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
