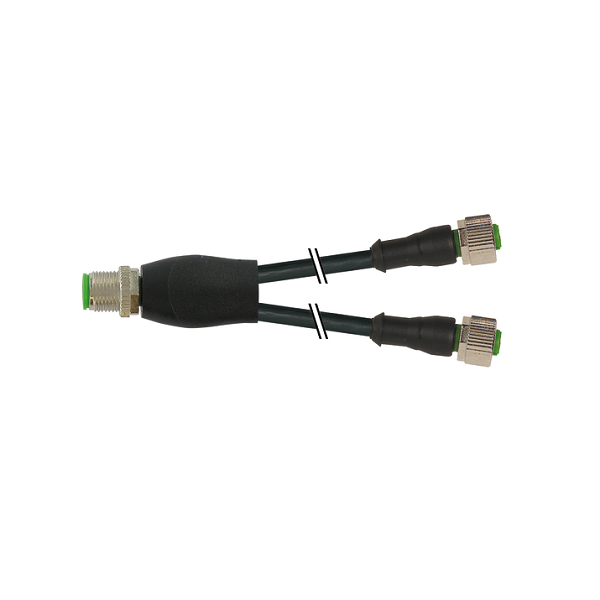

Đầu nối chia 0.3m cáp Y-Distributor M12 male / M12 female 0° A-code

Đầu nối chia 0.3m cáp Y-Distributor M12 male / M12 female 0° A-code 7000-40701-6130030: là dây cáp kết nối 3 đầu nối, kiểu Y, giữa M12 (đực, 0°, 4 chân) và 2xM12 (cái 0°, 3 chân), A-code

– PVC 3×0.34 bk UL/CSA 0.3m
– M12 (đực, 0°, 4 chân) – 2xM12 (cái, 0°, 3 chân), A-code

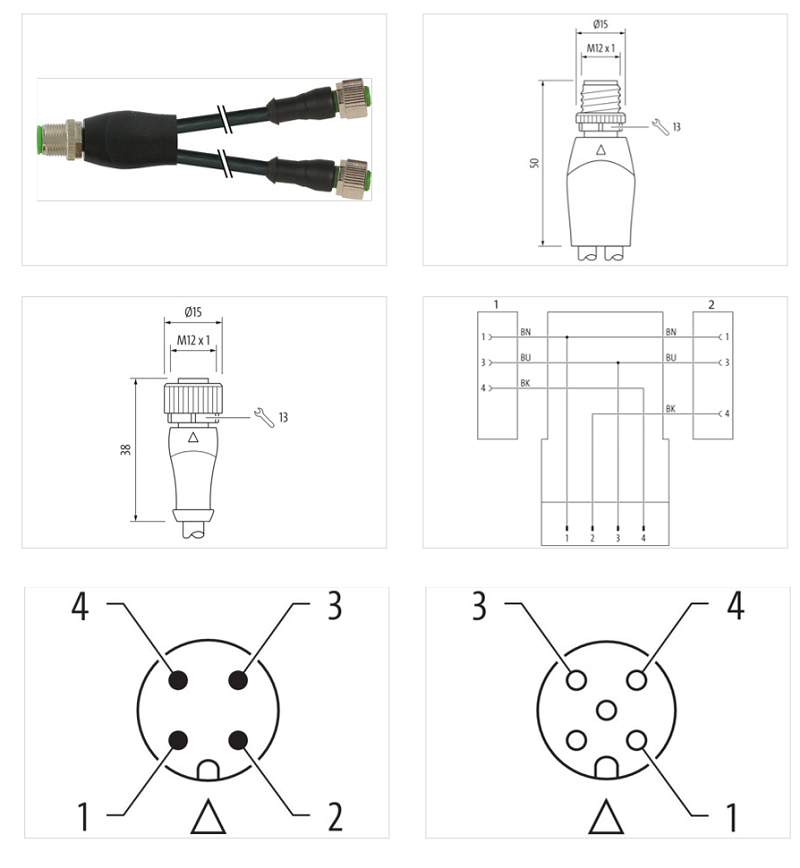

Đầu nối chia 0.3m cáp Y-Distributor M12 male / M12 female 0° A-code 7000-40701-6130030 - DETAIL

– Có sẵn cáp dài 0.3 mét, chịu dầu và chống mài mòn

Sản phẩm tương đương

Thông số kỹ thuật – Đầu nối chia 0.3m cáp Y-Distributor M12 male / M12 female 0° A-code 7000-40701-6130030

Header

Material short text	MSAYTL0-BR613_0.3-BR613_0.3
Cable length	0,30 m

Side 1

Family construction form	M12
No. of poles	3
Coding	A
Gender	female
Mounting method	inserted, screwed
Threaded hole	M12 x 1
Tightening torque	0.6 Nm
Width across flats	SW13
Cable outlet	straight
suitable for corrugated tube (internal Ø)	10 mm
Material	PUR
Material contact	Copper alloy
Coating contact	gold plated
Degree of protection (EN IEC 60529)	IP67, IP66K, IP65

Side 2

Family construction form	M12
No. of poles	3
Coding	A
Gender	female
Mounting method	inserted, screwed
Threaded hole	M12 x 1
Tightening torque	0.6 Nm
Width across flats	SW13
Cable outlet	straight
suitable for corrugated tube (internal Ø)	10 mm
Material	PUR
Material contact	Copper alloy
Coating contact	gold plated
Degree of protection (EN IEC 60529)	IP67, IP66K, IP65

Side 3

Family construction form	M12
No. of poles	4
Coding	A
Gender	male
Mounting method	inserted, screwed
Threaded hole	M12 x 1
Tightening torque	0.6 Nm
Width across flats	SW13
Cable outlet	straight
Material	PUR
Material contact	Copper alloy
Coating contact	gold plated
Degree of protection (EN IEC 60529)	IP67, IP66K, IP65

Electrical data | Supply

Operating voltage AC max.	250 V
Operating voltage DC max.	250 V
Current operating per contact max.	4 A

Diagnostics

Status indication LED	no

Device protection | Electrical

Additional condition protection degree	inserted, screwed
Pollution Degree	3
Rated surge voltage	2.5 kV
Material group (IEC 60664-1)	I

Mechanical data | Material data

Material screw connection	Zinc die-casting
Coating of fitting	nickel plated
Locking material	Zinc die-casting
Coating locking	Nickeled
Material gasket	FKM

Mechanical data | Mounting data

Mounting method	inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min.	-30 °C
Operating temperature max.	85 °C
Additional condition temperature range	depending on cable quality

Important installation notes

Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Conformity

Product standard	EN IEC 61076-2-101 (M12)
