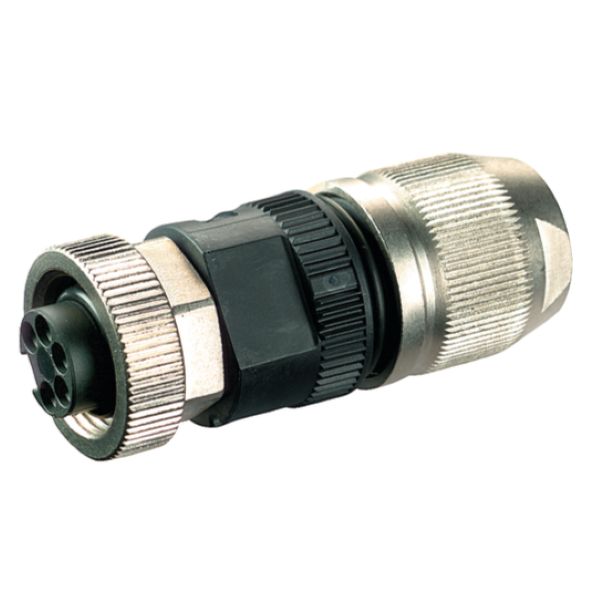

Đầu nối cáp tín hiệu 7/8” female 0° IDC 5 chân 7000-78211-0000000
– Là đầu nối thẳng 0°, 7/8″
– Female, 4 chân
– Kết nối IDC
– IP67, IP65
Đầu nối cáp tín hiệu 7/8” female 0° IDC 5 chân 7000-78211-0000000 là đầu nối thẳng 0°, 7/8″, female (cái), 5 chân, A-code
– 5-pol., 0,75 – 1,5mm², 6,8 – 12,5mm
– IDC terminals
Sản phẩm tương tự – Đầu nối M12 đực, thẳng, A-code, IDC của Murrelektronik 7000-12533-0000000
Thông số kỹ thuật – Đầu nối cáp tín hiệu 7/8” female 0° IDC 5 chân 7000-78211-0000000
Side 1
| Family construction form | 7/8″ |
| No. of poles | 5 |
| Gender | female |
| Mounting method | inserted, screwed |
| Thread | 7/8″ |
| Tightening torque | 1.5 Nm |
| Cable outlet | straight |
Side 2
| Mounting method | field-wireable |
Electrical data | Supply
| Current operating per contact max. | 10 A |
| Current phase – neutral | 230 V |
| Current phase – phase | 400 V |
Installation
| Single wire diameter min. | 0.15 mm |
| Connection cross section min. | 0.75 mm² |
| Connection cross section max. | 1.5 mm² |
Installation | Connection
| Width across flats | SW22 |
| Wire insulation diameter max. | 2.8 mm |
Installation | Pin assignment
| No. of poles | 5 |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67, IP65 |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 4 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Locking material | Brass |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
| Clamping range min. | 6.8 mm |
| Clamping range max. | 12.5 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
| Operating temperature max. | 85 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
