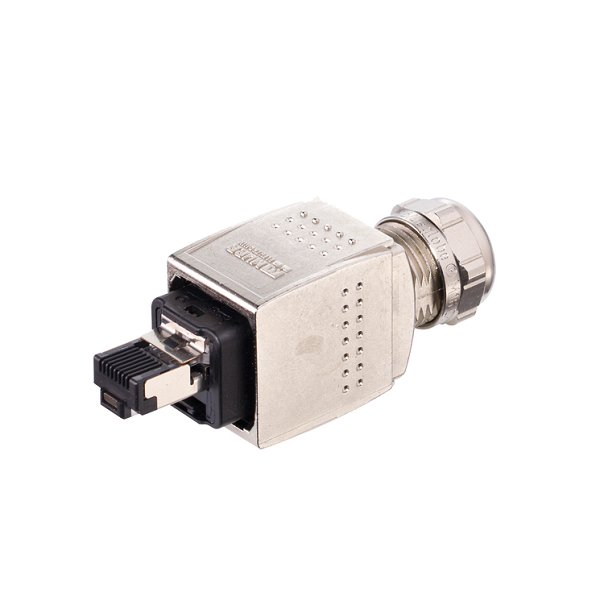

Đầu nối cáp mạng CAT5 RJ45 push-pull male 0° 4 chân 7000-74041-0000000
– Là đầu nối thẳng, male 0°
– RJ45PP, 4 chân
– IDC terminals
– IP65, IP67
Đầu nối cáp mạng CAT5 RJ45 push-pull male 0° 4 chân 7000-74041-0000000: là đầu nối thẳng, RJ45PP, male (đực), 4 chân, công nghệ kết nối nhanh gọn, tiện lợi, kiểu push-pull
( 4-pol., 0,14 – 0,34mm², 4,5 – 11mm, shielded, CAT5)
– PROFINET, RJ45PP, 4 chân
– Tốc độ truyền tín hiệu: 100 MBit/s
– IDC terminals (Insulation Displacement Connector) – kết nối không cần tuốt vỏ

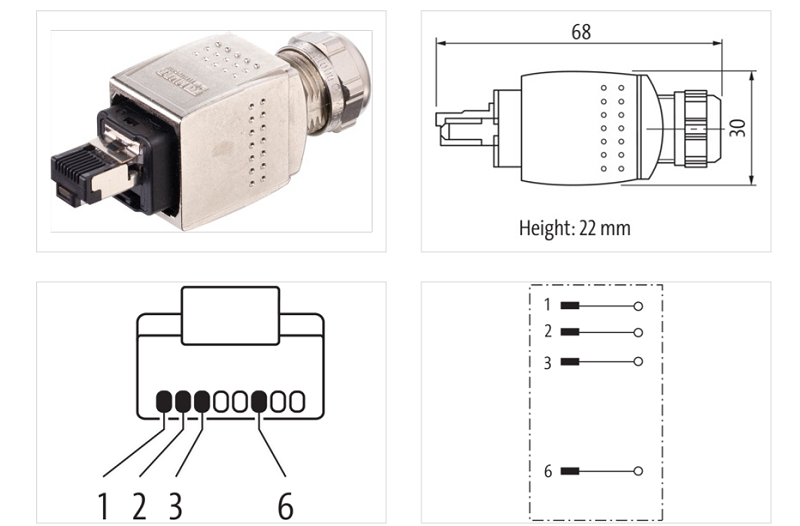

Thông số kỹ thuật – Đầu nối cáp mạng CAT5 RJ45 push-pull male 0° 4 chân 7000-74041-0000000
| Family construction form | RJ45 |
|---|---|
| No. of poles | 4 |
| Gender | male |
| Mounting method | pluggable |
| Cable outlet | straight |
| Mounting method | Field-wireable |
|---|
| Operating voltage DC max. | 60 V |
|---|---|
| Current operating per contact max. | 2 A |
| Data transmission rate max. | 100 Mbit/s |
|---|---|
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| duplex | Full duplex |
|---|
| Connection cross section min. | 0,14 mm² |
|---|---|
| Connection cross section max. | 0,34 mm² |
| AWG number min. | 26 |
| AWG number max. | 22 |
| Shielded | Yes |
|---|
| Degree of protection (EN IEC 60529) | IP67, IP65 |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Clamping range min. | 4 mm |
|---|---|
| Clamping range max. | 11 mm |
| Operating temperature min. | -40 °C |
|---|---|
| Operating temperature max. | 70 °C |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Product standard | IEC 61076-3-117, EN 45545-2, EN 50155 |
|---|---|
| Shock and vibration resistance | EN/IEC 61373 |
| Fire protection | EN 45545-2, HL1-HL3, requirement sets R22, R23, R24, R26 |
