Đầu nối cái M12 A-code có cáp của Murrelektronik 7000-12443-5770750
– PUR 5×0.34 or UL/CSA+robot+drag ch. 7.5m
– M12 cái 90°, 5 chân, A-code
– Dùng cho robot…
– Cáp màu cam
– Có LED
– Inserted, screwed
– IP65, IP66K, IP67

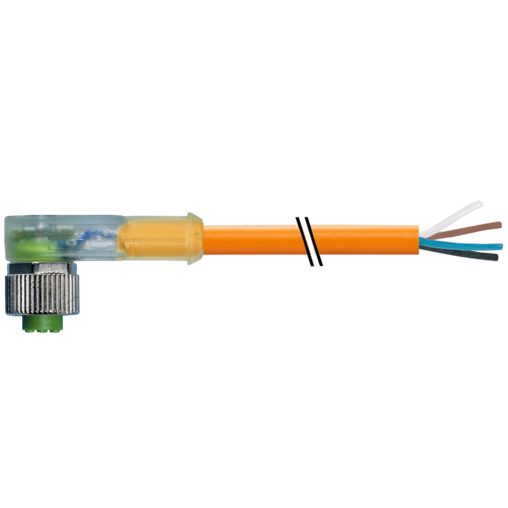

Đầu nối cái M12 A-code có cáp của Murrelektronik 7000-12443-5770750 là cáp tín hiệu dài 7.5m, có đầu nối cái M12 90°, A-code
– PUR 5×0.34 or UL/CSA+robot+drag ch. 7.5m
– M12 cái 90°, 5 chân, A-code
– Dùng cho robot…
– Có LED
– Inserted, screwed
– Vỏ nhựa có khả năng chống hóa chất và dầu tốt
Sản phẩm tương tự: Murrelektronik – Đầu nối M12 có cáp

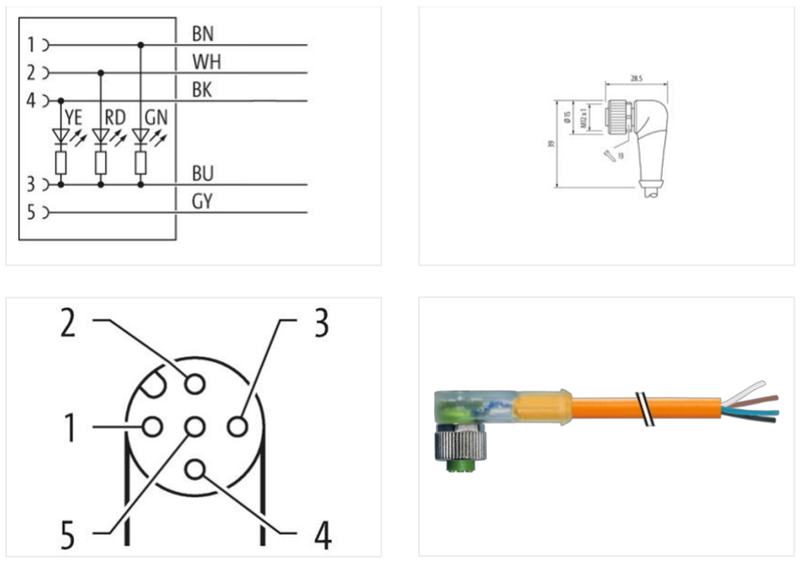

Thông số kỹ thuật – Đầu nối cái M12 A-code có cáp của Murrelektronik 7000-12443-5770750
| Cable length | 7,5 m |
Side 1
| Tightening torque | 0,6 Nm |
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M12 |
| Thread | M12 x 1 |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Cable outlet | angled |
| Coding | A |
| Material contact | Copper alloy |
| Material | PUR |
| No. of poles | 5 |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
Side 2
| Stripping length (jacket) | 20 mm |
| Family construction form | free cable end |
Electrical data | Supply
| Operating voltage DC | 24 V |
| Operating voltage DC min. | 18 V |
| Operating voltage DC max. | 30 V |
| Operating voltage DC max. (UL-listed) | 30 V |
| Current operating per contact max. | 4 A |
Diagnostics
| Status indication LED | green, red, yellow |
Installation | Connection
| Stripping length (jacket) | 20 mm |
| Mounting set | M12 x 1 |
| Gender | female |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 0,8 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Coating locking | safe-cover coated |
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Material screw connection | Zinc die-casting |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
