Đầu nối cái M12 A-code, cáp dài 5m của Murrelektronik 7000-13181-2400500
– PUR 3×0.34 shielded gy UL/CSA+drag ch. 5m

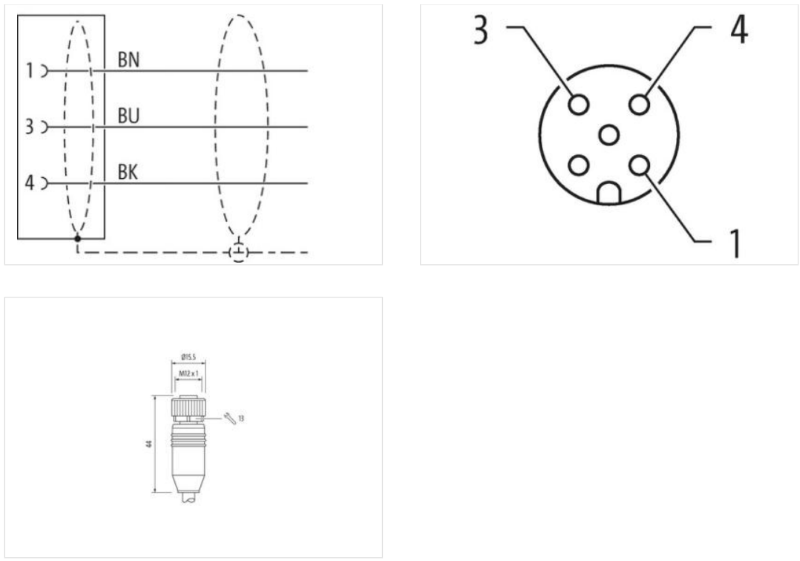

– M12 cái (0°), 3 chân, A-code, chiều dài cáp 5 mét
– Inserted, screwed
– IP65, IP66K, IP67
Đầu nối cái M12 A-code, cáp dài 5m của Murrelektronik 7000-13181-2400500 là dây cáp kết nối tín hiệu có đầu nối loại M12, female (đầu nối cái), dạng thẳng, 3 chân, A-code
Có sẵn cáp dài 5 mét, có bọc chống nhiễu, chịu dầu và chống mài mòn, phù hợp dùng trong drag chain (xích kéo)
(PUR 3×0.34 shielded gy UL/CSA+drag ch. 5m)
Sản phẩm tương tự – Đầu nối M12
Thông số kỹ thuật – Đầu nối cái M12 A-code, cáp dài 5m của Murrelektronik 7000-13181-2400500
| Cable length | 5 m |
Side 1
| Tightening torque | 0,6 Nm |
| Mounting method | inserted, screwed |
| Family construction form | M12 |
| Thread | M12 x 1 |
| Coding | A |
| Material | PUR |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
Electrical data | Supply
| Operating voltage AC max. | 60 V |
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
Installation | Connection
| Mounting set | M12 x 1 |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Coating locking | Nickeled |
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Material screw connection | Zinc die-casting |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
Conformity
| Product standard | DIN EN 61076-2-101 (M12) |
