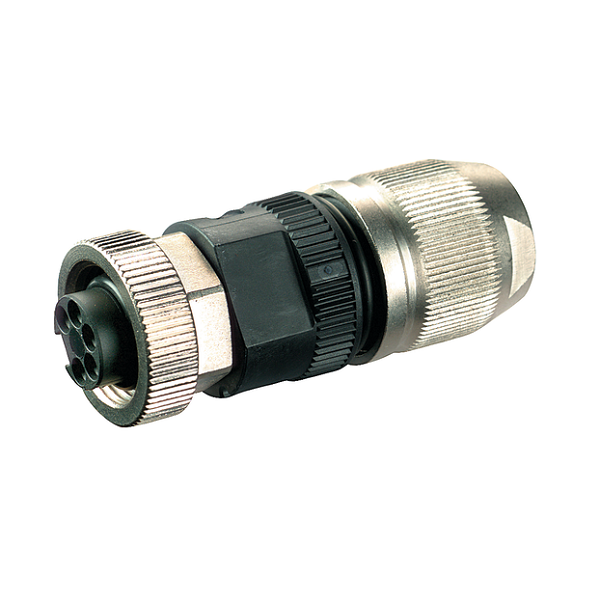

Đầu nối 7/8'' female 0° IDC 7000-78211-0000000 - HEADER

Đầu nối 7/8” female 0° IDC 7000-78211-0000000

Đầu nối 7/8” female 0° IDC 7000-78211-0000000
– Là đầu nối thẳng 0°, Female, 5 chân
– Kết nối IDC
– inserted, screwed
– IP67, IP65

Đầu nối 7/8” female 0° IDC 7000-78211-0000000 là đầu nối thẳng 0°, Female (cái), 5 chân

– 5-pol., 0,75 – 1,5mm², 6,8 – 12,5mm
– 7/8″ (5-pole)

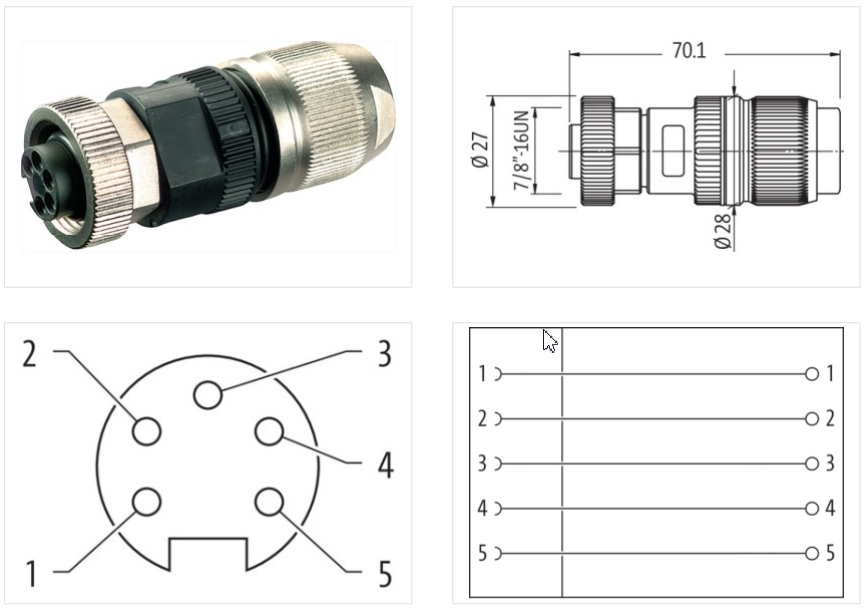

Đầu nối 78'' female 0° IDC 7000-78211-0000000 - detail

– IDC terminals
– Có vỏ bọc chống hóa chất và dầu

Sản phẩm khác

Thông số kỹ thuật – Đầu nối 7/8” female 0° IDC 7000-78211-0000000

Side 1
Family construction form 7/8″
No. of poles 5
Gender female
Mounting method inserted, screwed
Thread 7/8″
Tightening torque 1.5 Nm
Cable outlet straight
Side 2
Mounting method field-wireable
Electrical data | Supply
Current operating per contact max. 10 A
Current phase – neutral 230 V
Current phase – phase 400 V
Installation
Single wire diameter min. 0.15 mm
Connection cross section min. 0.75 mm²
Connection cross section max. 1.5 mm²
Installation | Connection
Width across flats SW22
Wire insulation diameter max. 2.8 mm
Installation | Pin assignment
No. of poles 5
Device protection | Electrical
Degree of protection (EN IEC 60529) IP67, IP65
Additional condition protection degree inserted, screwed
Pollution Degree 3
Rated surge voltage 4 kV
Material group (IEC 60664-1) I
Mechanical data | Material data
Locking material Brass
Mechanical data | Mounting data
Mounting method inserted, screwed, Shaking protection
Clamping range min. 6.8 mm
Clamping range max. 12.5 mm
Environmental characteristics | Climatic
Operating temperature min. -40 °C
Operating temperature max. 85 °C
Important installation notes
Note on bending radius Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Datasheet Đầu nối 7/8” female 0° IDC 7000-78211-0000000
