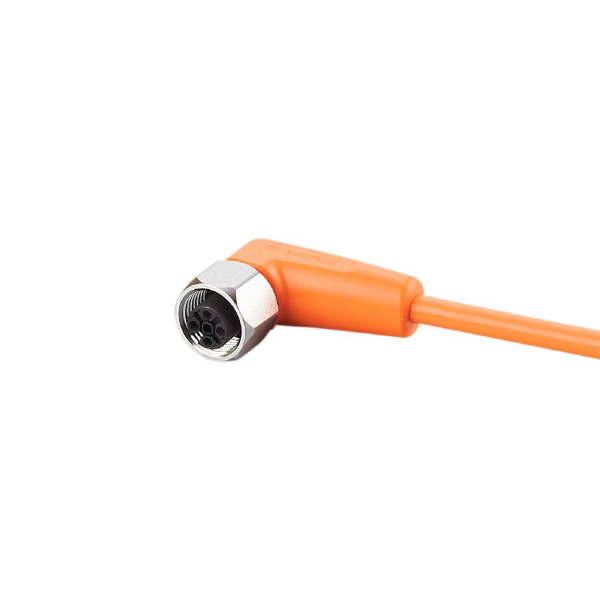

Connecting cable with socket M12 female 90° 4 pin IFM EVT004 - header

Connecting cable with socket M12 female 90° 4 pin IFM EVT004

Connecting cable with socket M12 female 90° 4 pin IFM EVT004

– Là đầu nối 90°, có sẵn cáp dài 5m, M12
– Female, 4 chân, A-cod.
– IP 65; IP 67; IP 68; IP 69K

Connecting cable with socket M12 female 90° 4 pin IFM EVT004 là đầu nối 90°, có sẵn cáp dài 5m, M12, female, 4 chân, A-cod.

– Sử dụng phù hợp trong môi trường ẩm ướt và vệ sinh trong ngành công nghệ thực phẩm
– Lắp đặt linh hoạt, chắc chắn ngay cả khi không cầng dụng cụ lắp đặt
– Dải nhiệt độ hoạt động rộng, độ tin cậy và tuổi thọ cao

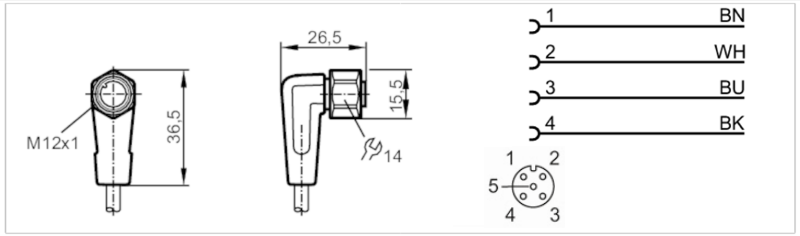

Connecting cable with socket M12 female 90° 4 pin IFM EVT004 - detail

– Cable: 5 m, PVC, orange, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
– Connector: 1 x M12, angled; coding: A; Moulded body: PVC, orange; Locking: stainless steel (316L/1.4404); Sealing: EPDM

Thông số kỹ thuật – Connecting cable with socket M12 female 90° 4 pin IFM EVT004

Application

Special feature Free from silicone; Gold-plated contacts; Drag chain suitability
Application hygienic and wet areas in the food industry
Free from silicone yes

Electrical data

Operating voltage[V] < 250 AC / < 300 DC
Protection class II
Max. current load total[A] 4

Operating conditions

Ambient temperature[°C] -25…100
Note on ambient temperature
cULus: …50


Ambient temperature (moving)[°C] 5…100
Note on ambient temperature (moving)
cULus: …50


Storage temperature[°C] -25…55
Storage humidity[%] 10…100
Other climatic conditions for storage according to stated class
1K22/ DIN 60721-3-1


Protection IP 65; IP 67; IP 68; IP 69K

Mechanical data

Weight[g] 204.3
Moulded-body material PVC
Material nut stainless steel (316L/1.4404)
Sealing material EPDM
Drag chain suitability yes
Drag chain suitability
bending radius for flexible use min. 10 x cable diameter
travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles > 1 Mio.
torsional strain ± 180 °/m



Remarks

Pack quantity 1 pcs.

Electrical connection

  Cable: 5 m, PVC, orange, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection – socket

Connection Connector: 1 x M12, angled; coding: A; Moulded body: PVC, orange; Locking: stainless steel (316L/1.4404); Sealing: EPDM; Contacts: gold-plated; Tightening torque: 0.6…1.5 Nm

Datasheet Connecting cable with socket M12 female 90° 4 pin IFM EVT004
