Card Real-time Ethernet gắn PCI CIFX 50-RE 1250.100
– Đóng vai trò Master hoặc Slave trong mạng Ethernet công nghiệp
– Trao đổi dữ liệu qua DPM, DMA

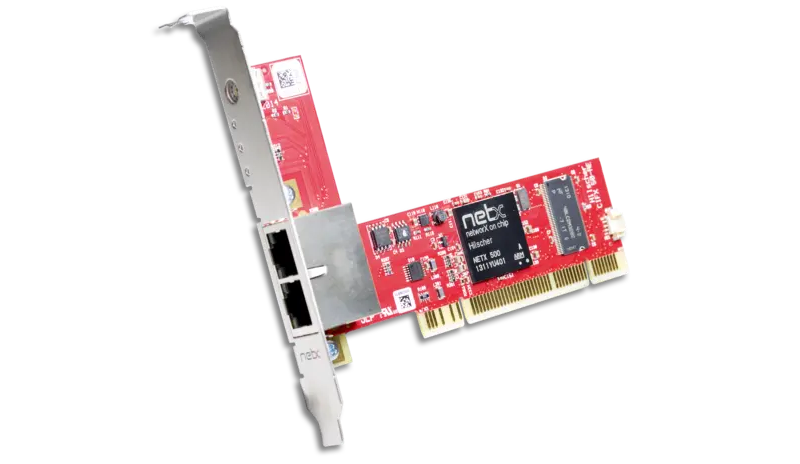

Card Real-time Ethernet gắn PCI CIFX 50-RE 1250.100 của Hilscher là một loại card giao tiếp tự động hóa dựa trên PC, cho phép PC đóng vai trò như một Master hoặc Slave trong mạng Ethernet thời gian thực (RTE)

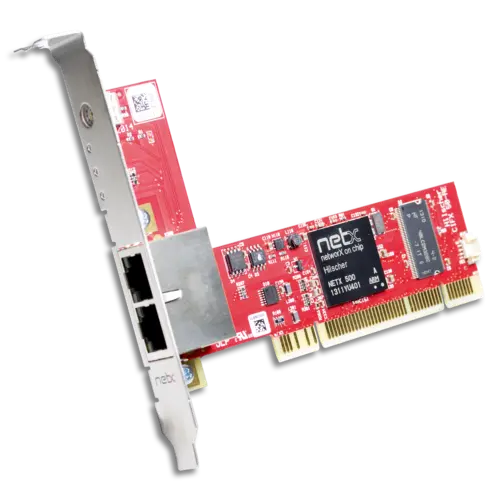

Card Real-time Ethernet gắn PCI CIFX 50-RE 1250.100
– Đóng vai trò Master hoặc Slave trong mạng Ethernet công nghiệp
– Trao đổi dữ liệu qua DPM, DMA
Sản phẩm tương tự: Card Profibus gắn PCI CIFX 50-DP 1250.410
Thông số kỹ thuật – Card Real-time Ethernet gắn PCI CIFX 50-RE 1250.100
| Product | Product name | CIFX 50-RE |
| Part number | 1250.100 | |
| Brief description | PC Card cifX PCI Real-Time Ethernet Master or Slave | |
| Function | Communication interface with PCI and Ethernet interface | |
| Communication controller | Type | netX 500 |
| Integrated Memory | RAM | 8 MB SDRAM |
| FLASH | 4 MB serial Flash EPROM | |
| System interface | Bus type | PCI |
| Transmission rate | 33 MHz | |
| Data access | DPM or DMA (Direct Memory Access) | |
| Data width | 32 bit | |
| Communication interface | Communication standard | Ethernet |
| Interface type | 10BASE-T/100BASE-TX, isolated | |
| Isolation voltage | 1000 V DC (tested for 1 minute) | |
| Connector | 2 x RJ45 socket | |
| Power supply | Supply voltage | +3.3 V DC ±5 % |
| Maximum current (typically) | 650 mA (at 3,3 V) | |
| Connector | via PCI Bus | |
| Displays | LED display | SYS, System status LED |
| COM 0, LED Communication status 0 (duo LED) | ||
| COM 1, LED Communication status 1 (duo LED) | ||
| LED yellow, LED green, at RJ45Ch0 and RJ45Ch1, for Ethernet Link status, Ethernet Aktivity status | ||
| Operating element | Rotary switch slot number (card ID) | To set the slot number (card ID) |
| Permitted ambient conditions | Operating temperature range | 0 °C … +55 °C (Air flow during measurment: 0,5 m/s) |
| Storage temperature range | -40 °C … +85 °C | |
| Humidity | 10 % … 95 % relative humidity, no condensation permitted | |
| Environment | For UL compliant usage: The device must be used in a pollution degree 2 environment. | |
| Altitude | 0 m … 2000 m | |

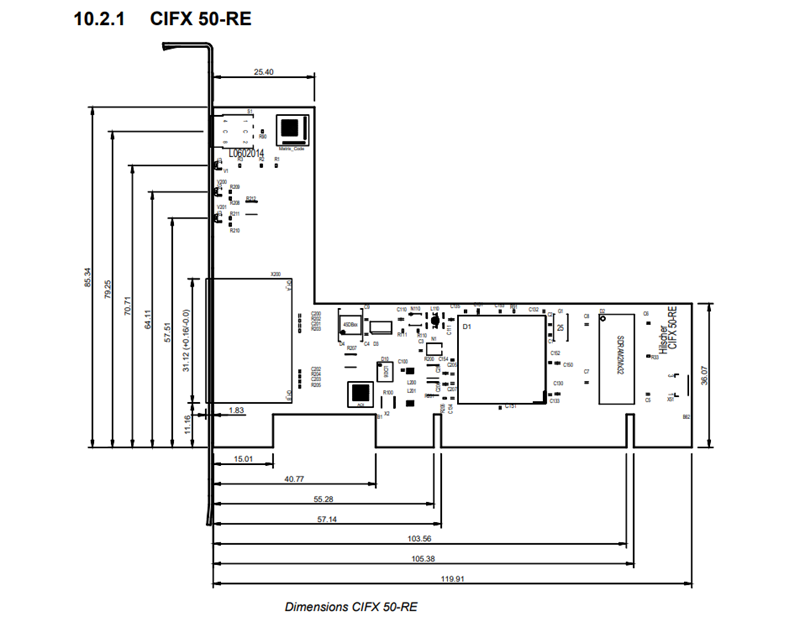

| Device | Dimensions (L x W x H) | 120 mm x 86 mm x 18.5 mm (from hardware revision 3) |
| Mounting/Installation | PCI slot (3,3 V) | |
| Conformity | RoHS | Yes |
| Conformance with EMC directives | CE sign | Yes |
| UKCA sign | Yes | |
| Emission | EN 55011 / EN BS 55011 (Radio disturbance characteristics – Limits and methods of measurement) | |
| Immunity | EN 61000-4-2 / EN BS 61000-4-2: (Electrostatic discharge test) | |
| EN 61000-4-3 / EN BS 61000-4-3 (Radiated, radio-frequency, electromagnetic field test) | ||
| EN 61000-4-4 / EN BS 61000-4-4 (Burst Electrical fast transients/burst test) | ||
| EN 61000-4-5 / EN BS 61000-4-5 (Surge test) | ||
| EN 61000-4-6 / EN BS 61000-4-6 (to conducted disturbances, induced by radio- frequency fields) | ||
| EN 61000-4-8 / EN BS 61000-4-8 (power frequency magnetic field test) | ||
| EN 61000-6-2 / EN BS 61000-6-2 (for industrial environments) | ||
| UL certification | UL | The device is certified according to UL 508 |
| UL file | UL-File-Nr. E221530 | |
| Configuration | Configuration software for master and Slave | SYCON.net |
| Configuration software Slave | netX Configuration Tool |
Datasheet Card Profibus gắn PCI CIFX 50-DP 1250.410
