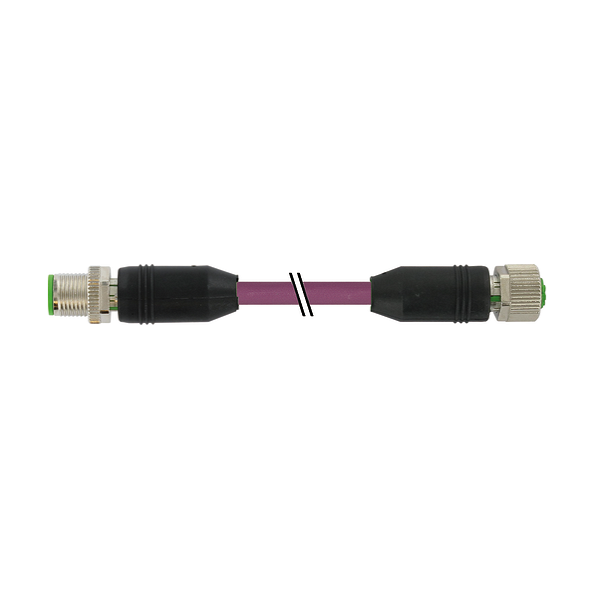

Cáp Profibus 1m có đầu nối M12 male 0° / M12 female 0° B-code 7000-44051-7990100
– PUR 3x2x0.25 shielded vt 1m
– M12 (đực, 0°) – M12 (cái, 0°), 5 chân, B-cod, chiều dài cáp 1m
– Inserted, screwed, Shaking protection
– IP67, IP66K, IP65
Cáp Profibus 1m có đầu nối M12 male 0° / M12 female 0° B-code 7000-44051-7990100 là dây cáp fieldbus có 2 đầu nối M12, 3 chân
(PUR 3x2x0.25 shielded vt 1m)
– Dùng cho hệ thống truyền thông Profibus trong tủ điện, máy móc tự động hóa hoặc hệ thống I/O công nghiệp yêu cầu kết nối chuẩn B-coded
– Có sẵn cáp dài 0.3 mét, chịu dầu và chống mài mòn, phù hợp dùng trong drag chain (xích kéo)

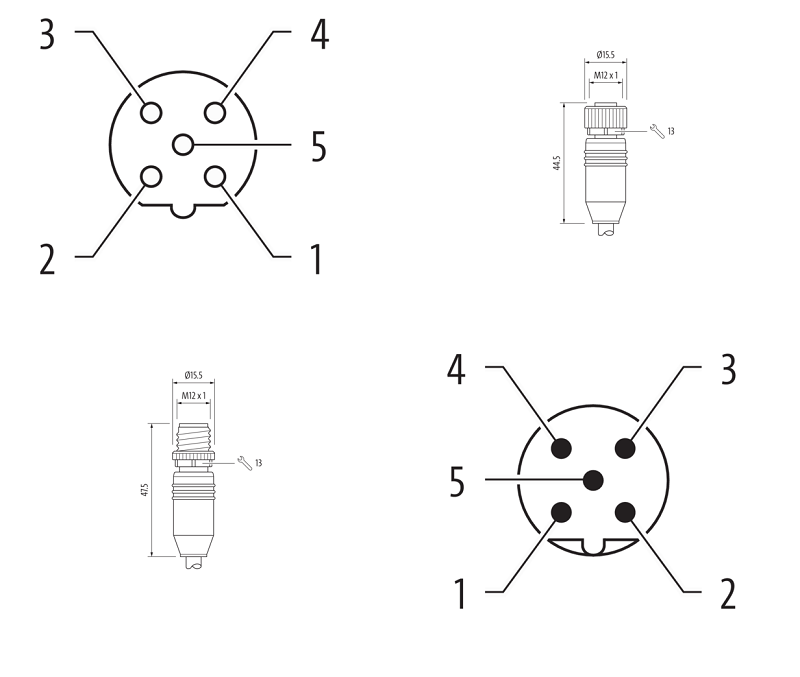

– M12 male 0° / M12 female 0°, 5 chân, B-code
– Có vỏ bọc chống hóa chất và dầu
Thông số kỹ thuật – Cáp Profibus 1m có đầu nối M12 male 0° / M12 female 0° B-code 7000-44051-7990100
| Material short text | MSBBL0-BA-U799_1.0-ZS |
|---|---|
| Cable length | 1.0 m |
| Family construction form | M12 |
|---|---|
| No. of poles | 5 |
| Coding | B |
| Gender | male |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| Material | PUR |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
| Family construction form | M12 |
|---|---|
| No. of poles | 5 |
| Coding | B |
| Gender | female |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| Material | PUR |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
| Operating voltage AC max. | 60 V |
|---|---|
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
| Status indication LED | no |
|---|
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 15 kV |
| Material group (IEC 60664-1) | I |
| Contour for corrugated hose | without |
|---|
| Locking material | Zinc die-casting |
|---|---|
| Coating locking | Nickeled |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Product standard | DIN EN 61076-2-101 (M12) |
|---|
