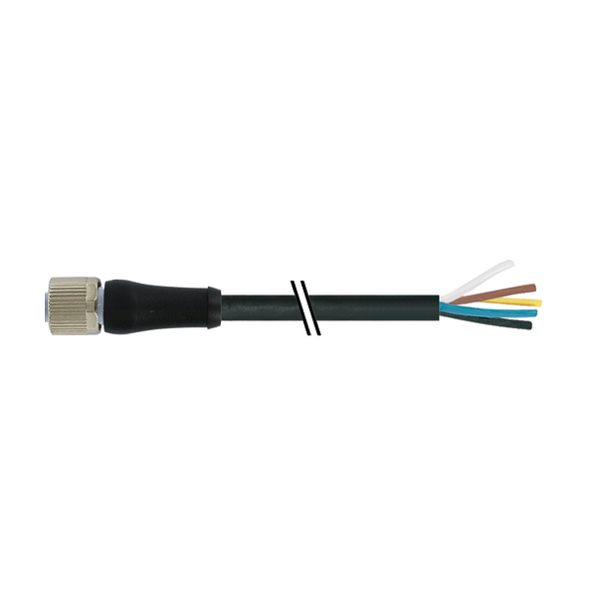

Cáp nguồn 20m có đầu nối M12 Power

– PUR 5×1.5 bk UL/CSA+drag ch., chiều dài cáp 20m.
– Đầu nối M12 female(cái) 0°, L-code, 5 chân.

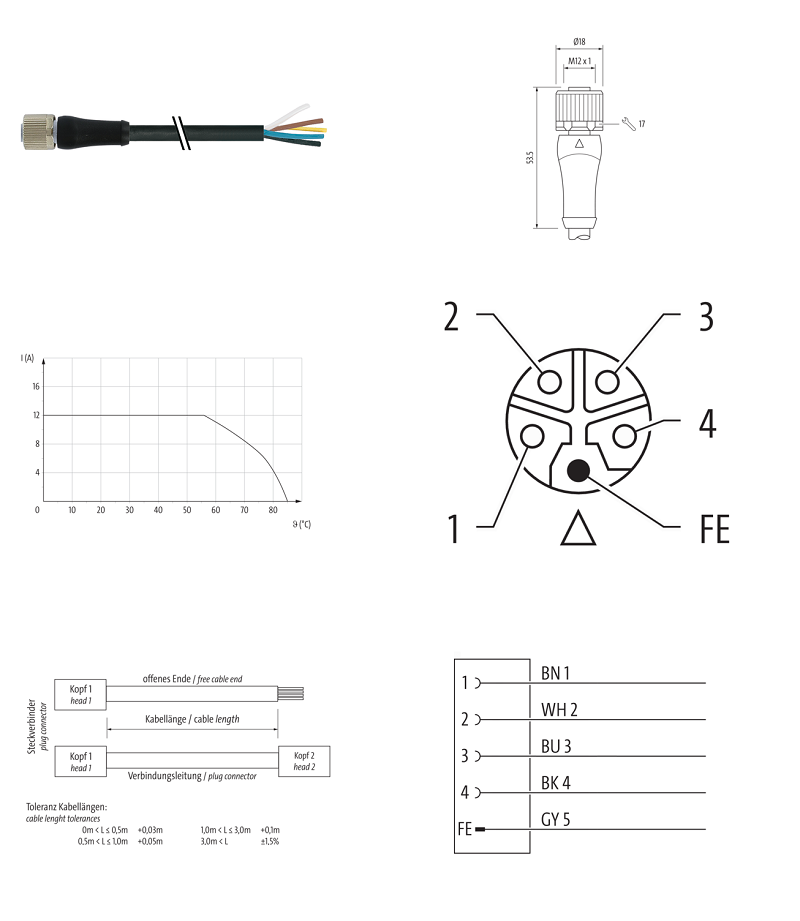

Cáp nguồn 20m có đầu nối M12 Power female 0° L-code 5 chân 7000-P4221-P042000 - DETAIL

– inserted, screwed.
– Vỏ bọc chống dầu và hóa chất tốt.

Thông số kỹ thuật – Cáp nguồn 20m có đầu nối M12 Power female 0° L-code 5 chân 7000-P4221-P042000

Header

Material short text	MSWBLL0-UP04_20.0
Cable length	20.0 m

Side 1

Family construction form	M12P
No. of poles	5
Coding	L
Gender	female
Mounting method	inserted, screwed
Thread	M12 x 1
Tightening torque	0.6 Nm
Width across flats	SW17
Cable outlet	straight
suitable for corrugated tube (internal Ø)	12 mm
Material	PUR
Material contact	Copper alloy
Coating contact	gold plated
Degree of protection (EN IEC 60529)	IP65, IP67, IP69K

Side 2

Family construction form	free cable end
Stripping length (jacket)	100 mm

Electrical data | Supply

Operating voltage DC max.	63 V
Current operating per contact max.	12 A

Diagnostics

Status indication LED	no

Installation | Connection

Width across flats	SW17
Mating cycles min.	100

Device protection | Electrical

Degree of protection (EN IEC 60529)	IP67, IP65
Additional condition protection degree	inserted, screwed
Pollution Degree	3
Rated surge voltage	1.5 kV
Material group (IEC 60664-1)	I

Mechanical data | Material data

Mechanical data | Mounting data

Mounting method	inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min.	-30 °C
Operating temperature max.	85 °C
Additional condition temperature range	depending on cable quality

Important installation notes

Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Conformity

Product standard	IEC 61076-2-111
