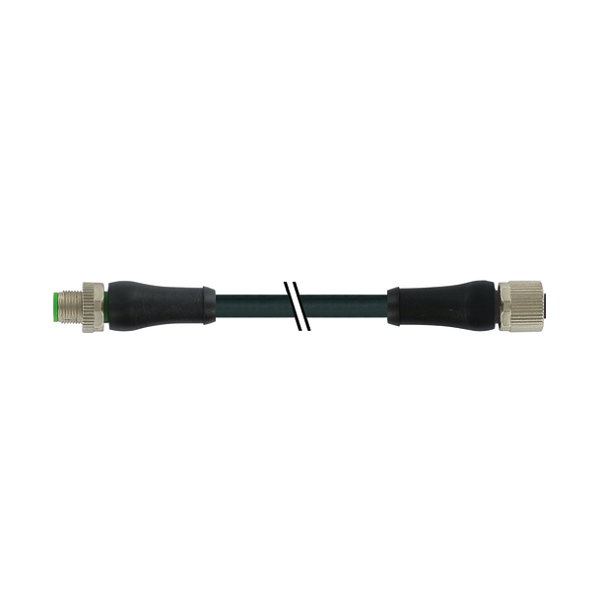

Cáp nguồn 20m có 2 đầu nối M12 Power male 0° T-cod. / female 0° L-cod 4 chân 7000-P7651-P072000 - HEADER

Cáp nguồn 20m có 2 đầu nối M12 Power male 0° T-cod. / female 0° L-cod 4 chân

Cáp nguồn 20m có 2 đầu nối M12 Power male 0° T-cod. / female 0° L-cod 4 chân 7000-P7651-P072000

– PUR 4×1.5 bk UL/CSA+drag ch., chiều dài cáp 7.5 m
– M12 đực 0° T-cod, M12 cái 0° L-cod, 4 chân
– Inserted, screwed
– IP65, IP66K, IP67, IP69K

Cáp nguồn 20m có 2 đầu nối M12 Power male 0° T-cod. / female 0° L-cod 4 chân 7000-P7651-P072000: là một cáp tín hiệu dùng để kết nối hai thiết bị có cổng M12

– PUR 4×1.5 bk UL/CSA+drag ch., chiều dài cáp 20 m
– M12 đực 0° T-cod, M12 cái 0° L-cod, 4 chân
– Inserted, screwed

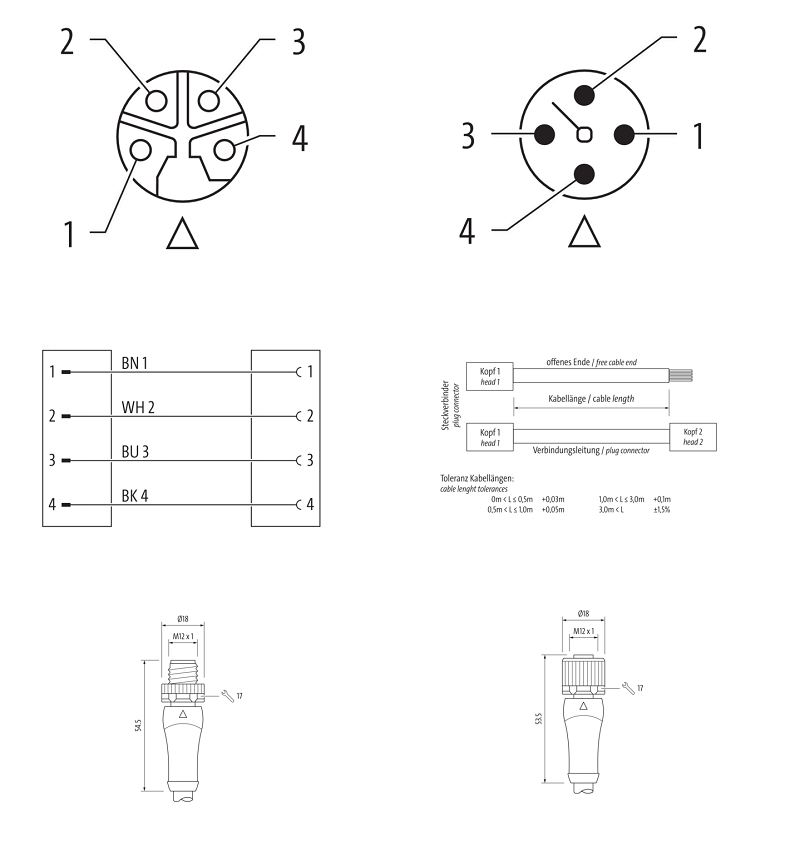

Cáp nguồn 20m có 2 đầu nối M12 Power male 0° T-cod. / female 0° L-cod 4 chân 7000-P7651-P072000 - DETAIL

– Vỏ nhựa có khả năng chống hóa chất và dầu tốt

Sản phẩm tương tự

Thông số kỹ thuật – Cáp nguồn 20m có 2 đầu nối M12 Power male 0° T-cod. / female 0° L-cod 4 chân 7000-P7651-P072000

Header
Material short text MSWBLL0-WAT-TP07_20.0
Cable length 20.0 m
Side 1
Family construction form M12P
No. of poles 4
Coding T
Gender male
Mounting method inserted, screwed
Thread M12 x 1
Tightening torque 0.6 Nm
Width across flats SW17
Cable outlet straight
suitable for corrugated tube (internal Ø) 12 mm
Material PUR
Material contact Copper alloy
Coating contact gold plated
Degree of protection (EN IEC 60529) IP65, IP66K, IP67, IP69K
Side 2
Family construction form M12P
No. of poles 4
Coding L
Gender female
Mounting method inserted, screwed
Thread M12 x 1
Tightening torque 0.6 Nm
Width across flats SW17
Cable outlet straight
suitable for corrugated tube (internal Ø) 12 mm
Material PUR
Material contact Copper alloy
Coating contact gold plated
Degree of protection (EN IEC 60529) IP65, IP66K, IP67, IP69K
Electrical data | Supply
Operating voltage DC max. 63 V
Current operating per contact max. 12 A
Diagnostics
Status indication LED no
Installation | Connection
Width across flats SW17
Mating cycles min. 100
Device protection | Electrical
Degree of protection (EN IEC 60529) IP67, IP66K, IP65
Additional condition protection degree inserted, screwed
Pollution Degree 3
Rated surge voltage 1.5 kV
Material group (IEC 60664-1) I
Mechanical data | Material data
Material housing PUR
Material screw connection Brass
Coating of fitting nickel plated
Material gasket FKM
Mechanical data | Mounting data
Mounting method inserted, screwed, Shaking protection
Environmental characteristics | Climatic
Operating temperature min. -30 °C
Operating temperature max. 85 °C
Additional condition temperature range depending on cable quality
Important installation notes
Note on bending radius Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
Conformity
Product standard IEC 61076-2-111
