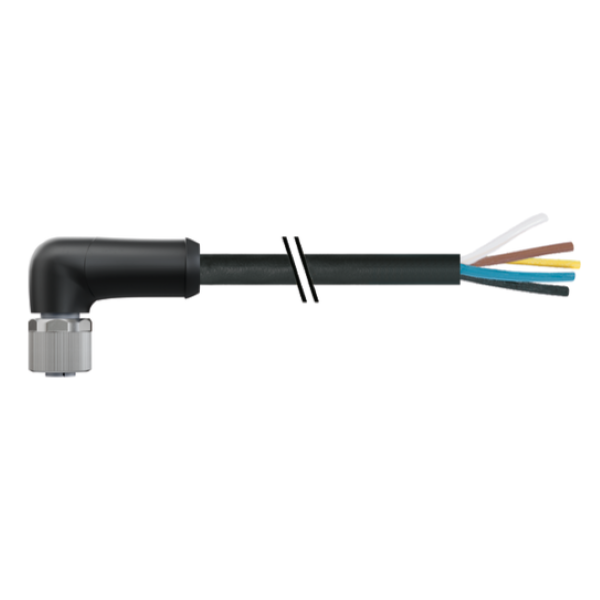

Cáp nguồn 10m có đầu nối M12 female 90° L-code 5 chân 7000-P4231-P041000
– M12 female 90°, có sẵn cáp dài 10m
– 5 chân, L-code
– Inserted, screwed
– IP65, IP67, IP69K
Cáp nguồn 10m có đầu nối M12 female 90° L-code 5 chân 7000-P4231-P041000 dùng để cấp nguồn cho các thiết bị công nghiệp như: module I/O, thiết bị fieldbus, motor, bộ nguồn,…

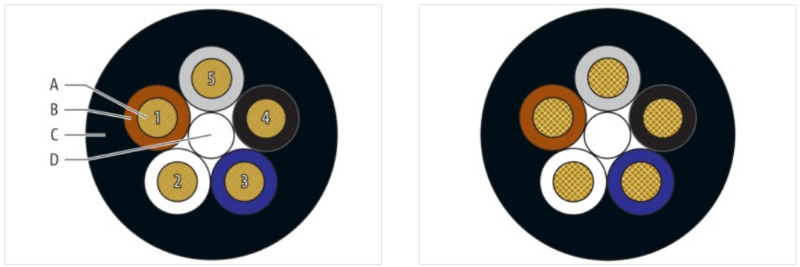

(PUR 5×1.5 bk UL/CSA+drag ch. 10m)
M12 female ( đầu nối cái) 90°, có sẵn cáp dài 10m, 5 chân, L-code.
Vỏ nhựa có khả năng chống hóa chất và dầu tốt
Thông số kỹ thuật – Cáp nguồn 10m có đầu nối M12 female 90° L-code 5 chân 7000-P4231-P041000
Header
| Material short text | MSWDLL0-UP04_10.0 |
| Cable length | 10,00 m |

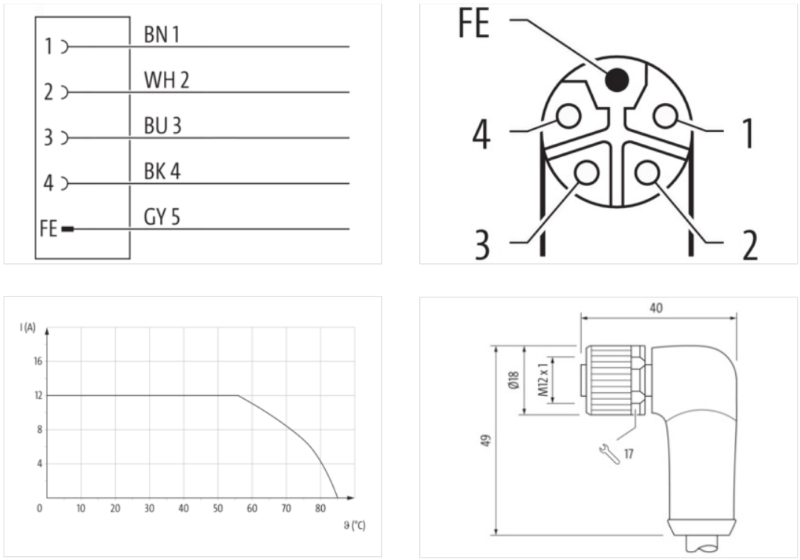

Side 1
| Family construction form | M12P |
| No. of poles | 5 |
| Coding | L |
| Gender | female |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW17 |
| Cable outlet | angled |
| suitable for corrugated tube (internal Ø) | 16.4 mm |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP65, IP67, IP69K |
Side 2
| Family construction form | free cable end |
| Stripping length (jacket) | 100 mm |
Electrical data | Supply
| Operating voltage DC max. | 63 V |
| Current operating per contact max. | 12 A |
Installation | Connection
| Width across flats | SW17 |
| Mating cycles min. | 100 |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67, IP65, IP69K |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1.5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Material housing | PUR |
| Material screw connection | Brass |
| Coating of fitting | nickel plated |
| Material gasket | FKM |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | IEC 61076-2-111 |
