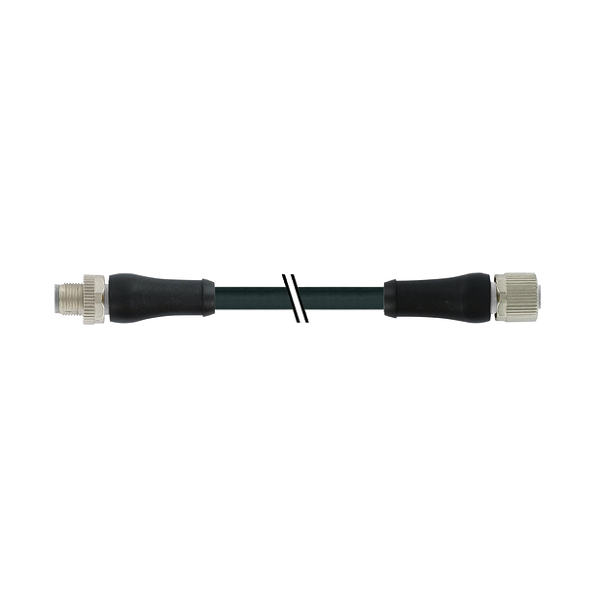

Cáp nguồn 1.5m có 2 đầu nối M12 Power male 0° / female 0° L-cod 5 chân 7000-P4241-P040150
– PUR 5×1.5 bk UL/CSA+drag ch., chiều dài cáp 1.5 m
– M12 đực 0° – M12 cái 0°, L-cod, 5 chân
– Inserted, screwed
– IP65, IP66K, IP67, IP69K
Cáp nguồn 1.5m có 2 đầu nối M12 Power male 0° / female 0° L-cod 5 chân 7000-P4241-P040150: là một cáp nguồn dùng để kết nối hai thiết bị có cổng M12
PUR 5×1.5 bk UL/CSA+drag ch., chiều dài cáp 1.5m.
M12 đực 0° – M12 cái 0°, L-cod, 5 chân.
Inserted, screwed.
– Vỏ nhựa có khả năng chống hóa chất và dầu tốt
Thông số kỹ thuật – Cáp nguồn 1.5m có 2 đầu nối M12 Power male 0° / female 0° L-cod 5 chân 7000-P4241-P040150
| Material short text | MSWBLL0-WAL-UP04_1.5 |
|---|---|
| Cable length | 1.5 m |
| Family construction form | M12P |
|---|---|
| No. of poles | 5 |
| Coding | L |
| Gender | male |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW17 |
| Cable outlet | straight |
| suitable for corrugated tube (internal Ø) | 12 mm |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67, IP69K |
| Family construction form | M12P |
|---|---|
| No. of poles | 5 |
| Coding | L |
| Gender | female |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW17 |
| Cable outlet | straight |
| suitable for corrugated tube (internal Ø) | 12 mm |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67, IP69K |
| Operating voltage DC max. | 63 V |
|---|---|
| Current operating per contact max. | 12 A |
| Width across flats | SW17 |
|---|---|
| Mating cycles min. | 100 |
| Degree of protection (EN IEC 60529) | IP67, IP65 |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1.5 kV |
| Material group (IEC 60664-1) | I |
| Material housing | PUR |
|---|---|
| Material screw connection | Brass |
| Coating of fitting | nickel plated |
| Material gasket | FKM |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
