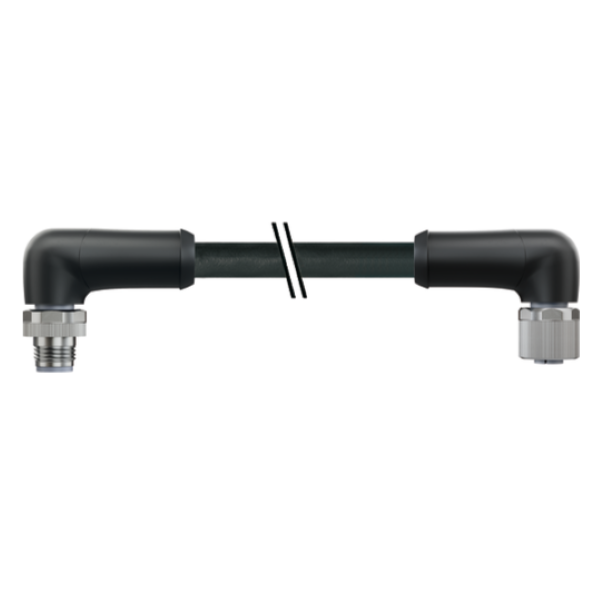

Cáp nguồn 1.5m 2 đầu nối M12 male 90° / female 90° L-code 5 chân 7000-P4271-P040150
– M12 (male 90°) -M12 (female 90°), có sẵn cáp dài 1,5m
– 5 chân, L-code
– Inserted, screwed
– IP65, IP66K, IP67, IP69K
Cáp nguồn 1.5m 2 đầu nối M12 male 90° / female 90° L-code 5 chân 7000-P4271-P040150 dùng để cấp nguồn cho các thiết bị công nghiệp như: module I/O, thiết bị fieldbus, motor, bộ nguồn…
(PUR 5×1.5 bk UL/CSA+drag ch. 1.5m)
Đầu nối M12, gồm 1 đầu đực (90°) và 1 đầu cái (90°) , 5 chân, L-code, có sẵn cáp dài 1,5m, dùng được trong xích kéo, chịu uốn và chuyển động linh hoạt.
Vỏ nhựa có khả năng chống hóa chất và dầu tốt
Thông số kỹ thuật – Cáp nguồn 1.5m 2 đầu nối M12 male 90° / female 90° L-code 5 chân 7000-P4271-P040150
Header
| Material short text | MSWDLL0-WCL-UP04_1.5 |
| Cable length | 1,50 m |

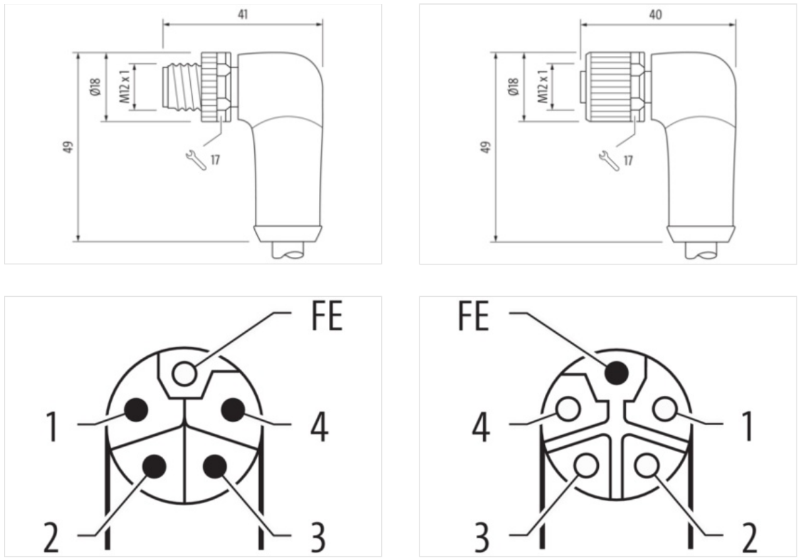

Side 1
| Family construction form | M12P |
| No. of poles | 5 |
| Coding | L |
| Gender | male |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW17 |
| Cable outlet | angled |
| suitable for corrugated tube (internal Ø) | 16.4 mm |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67, IP69K |
Side 2
| Family construction form | M12P |
| No. of poles | 5 |
| Coding | L |
| Gender | female |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW17 |
| Cable outlet | angled |
| suitable for corrugated tube (internal Ø) | 16.4 mm |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67, IP69K |

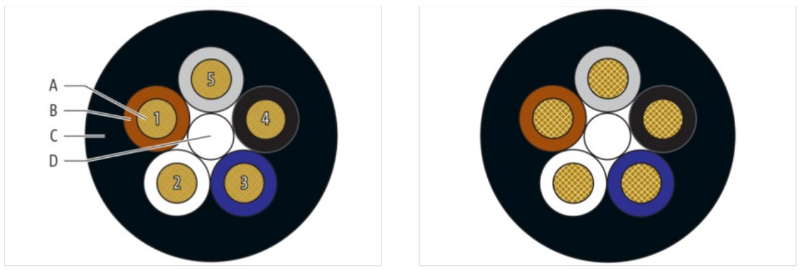

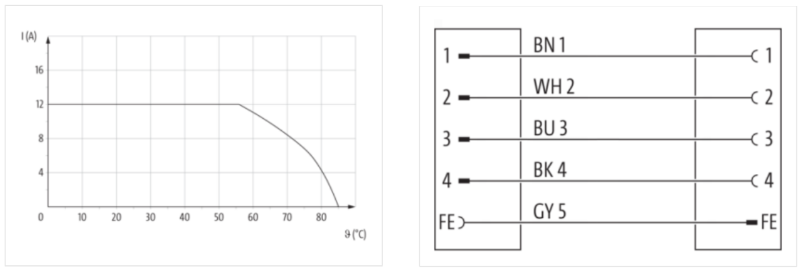

Electrical data | Supply
| Operating voltage DC max. | 63 V |
| Current operating per contact max. | 12 A |
Installation | Connection
| Width across flats | SW17 |
| Mating cycles min. | 100 |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP65, IP67, IP66K, IP69K |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1.5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Material housing | PUR |
| Material screw connection | Brass |
| Coating of fitting | nickel plated |
| Material gasket | FKM |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | IEC 61076-2-111 |
